REAR WHEEL
SP370 1979 (N) USA (E03)

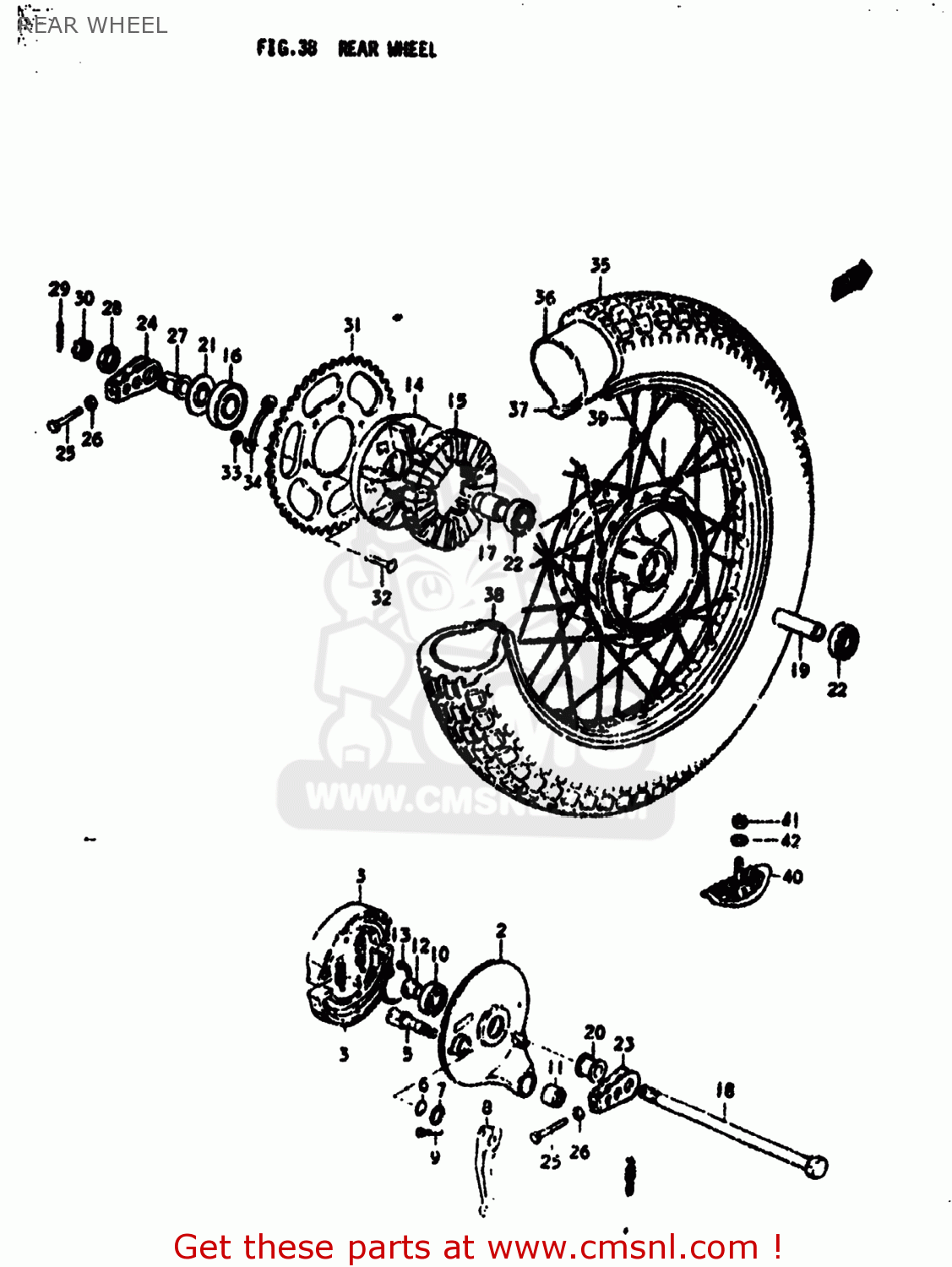

Rear wheel diagram SP370 1979 (N) USA (E03)
REAR WHEEL SP370 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411032420
ref: 1
DRUM,REAR HUB
€ 0.00
2
6421032421
ref: 2
PANEL,REAR HUB
€ 134.50
3
5441032400
ref: 3
64400-02830
SHOE,BRAKE (MCA)
€ 35.00
4
5542041100
ref: 4
SPRING
€ 5.50
5-1
5444008001
ref: 5-1
54440-08004
CAM,FRONT BRAKE
€ 19.00
5-2
5444008002
ref: 5-2
54440-08004
CAM,FRONT BRAKE
€ 19.00
6
0928015001
ref: 6
09280-15003
O-RING,BOSS
€ 2.00
7
0916015001
ref: 7
09160-15048
WASHER (15X24X1.6)
€ 2.50
8
6445132400
ref: 8
LEVER,REAR BRAKE CAM
€ 15.00
9
0110706258
ref: 9
01500-06257
BOLT
€ 2.00
10
0812360047
ref: 10
08133-60047
BALL BEARING
€ 21.00
11
0931910008
ref: 11
BUSH
€ 8.00
12
6421332400
ref: 12
SPACER,REAR HUB PANEL
€ 17.50
13
0833141428
ref: 13
08331-4142A
CIRCLIP,42MM
€ 1.50
14
6461132420
ref: 14
DRUM,REAR SPROCKET MOUNT
€ 0.00
15
6465032400
ref: 15
CUSHION,REAR DRUM
€ 7.50
16
0812363047
ref: 16
BEARING
€ 14.00
17
6473332400
ref: 17
SPACER,REAR HUB BEARING
€ 11.50
18
6471116500
ref: 18
AXLE,REAR
€ 41.00
19
0918015043
ref: 19
SPACER (15.3X21.7X82)
€ 6.00
20
6474132400
ref: 20
SPACER,AXLE,RIGHT
€ 9.00
21
6475032400
ref: 21
SPACER,REAR AXLE,RIGHT
€ 9.00
22
0814363027
ref: 22
08153-63027
BEARING, RH
€ 12.00
23
6141032400
ref: 23
ADJUSTER,CHAIN
€ 22.00
24
6141041100
ref: 24
ADJUSTER,CHAIN
€ 10.00
25
0910408006
ref: 25
09104-08034
BOLT
€ 3.00
26
0831012083
ref: 26
08310-0008A
NUT
€ 1.50
27
6479141100
ref: 27
SPACER,CHAIN ADJUSTER
€ 14.50
28
0914022003
ref: 28
NUT
€ 10.00
29
0411130408
ref: 29
04111-3040A
PIN 30X40
€ 1.50
30
0914114001
ref: 30
NUT
€ 4.50
31-1
6451132400
ref: 31-1
64511-32401
SPROCKET,REAR
€ 101.50
31-2
6451132410
ref: 31-2
SPROCKET,REAR (NT:41)(AL)
€ 51.50
31-3
6451132420
ref: 31-3
64511-32421
SPROCKET,REAR
€ 45.00
32
0910508001
ref: 32
BOLT(8X33.5)
€ 2.50
33
0831012088
ref: 33
08310-00087
NUT
€ 2.00
34
0916908011
ref: 34
WASHER
€ 2.50
35
6510032410
ref: 35
TIRE
€ 60.00
36
6520015011
ref: 36
65200-49015
TUBE ASSEMBLY,WHEEL,INNER
€ 39.00
37
6526115010
ref: 37
55261-11010
PROTECTOR,WHEEL,INNER
€ 3.50
38
6531130600
ref: 38
RIM,REAR WHEEL
€ 75.00
39
6530016828
ref: 39
65320-16520
SPOKE SET,REAR
€ 54.00
40
6527030001
ref: 40
65270-43D00
STOPPER,BEAD
€ 30.50
41
0831012088
ref: 41
08310-00087
NUT
€ 2.00
42
0832211088
ref: 42
08322-01087
WASHER
€ 2.00
