RIGHT HANDLE SWITCH

SP500 1983 (D) USA (E03)

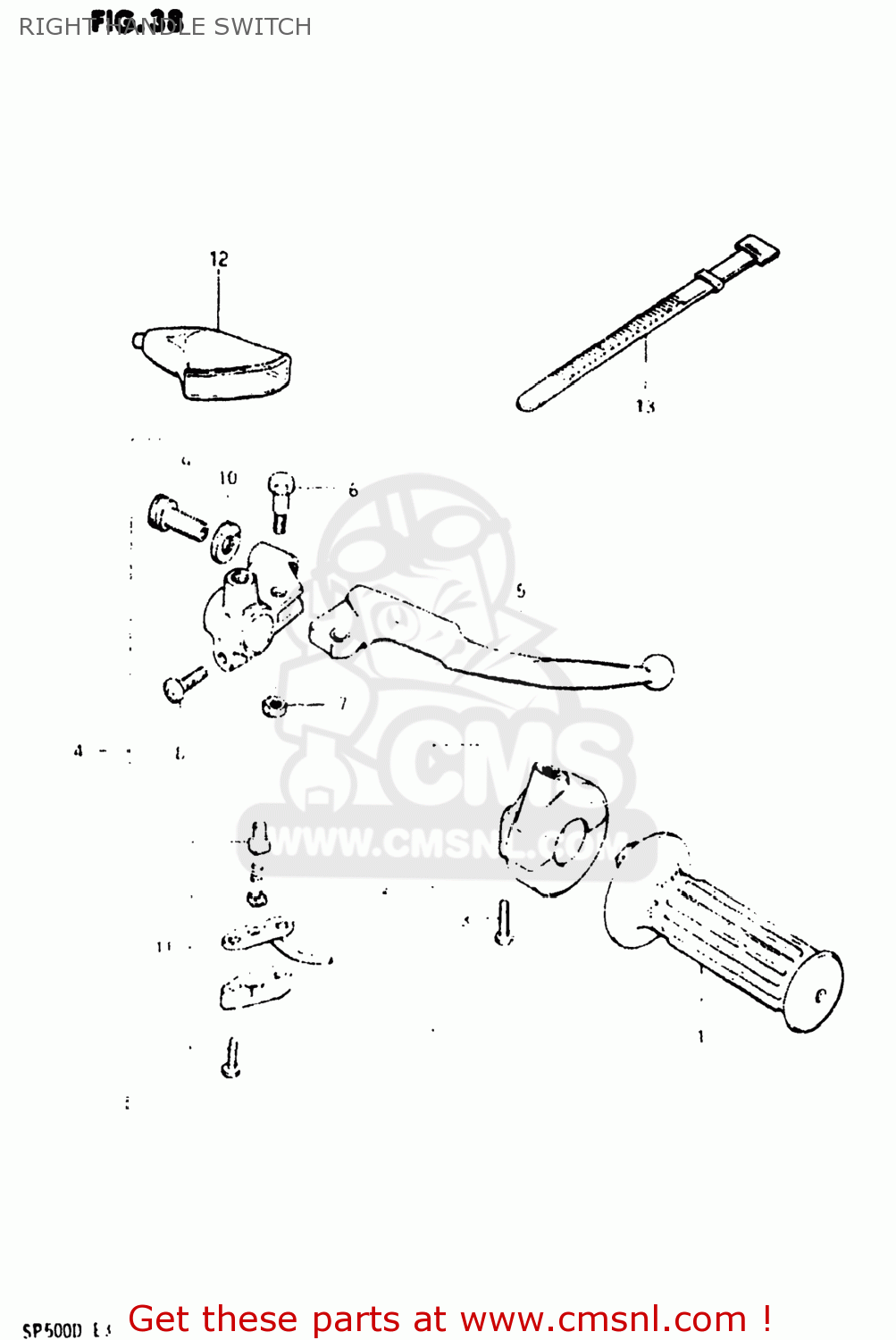

Right handle switch diagram SP500 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

5711037200
ref: 1

GRIP,THROTTLE

€ 20.50

5710037400
ref: 2

CASE ASSY,THROTTLE

€ 52.50

0211205208
ref: 3
02112-05207

SCREW 5X20

€ 3.00

5730038210
ref: 4
57300-05210

LEVER ASSEMBLY,BRAKE

€ 35.00

5742026400
ref: 5

LEVER,BRAKE

€ 28.50

5743111011
ref: 6
57431-11013

BOLT,LEVER

€ 6.00

0831921068
ref: 7
08319-2106A

NUT 6MM

€ 2.00

0211206208
ref: 8
02112-06207

SCREW

€ 2.00

5744111010
ref: 9

ADJUSTER,CABLE

€ 8.00

5744211010
ref: 10

NUT,CABLE ADJUSTER

€ 4.00

5747010300
ref: 11
57460-10400

SWITCH ASSEMBLY

€ 18.50

5734125601
ref: 12
57341-25602

DUST SEAL,BRAKE/CLUTCH

€ 10.00

0940712403
ref: 13
09407-12402

CLAMP

€ 3.00

all assemblies
