FRONT WHEEL (SV650AK7/SAK7)

SV650S 2003 (K3) USA (E03)

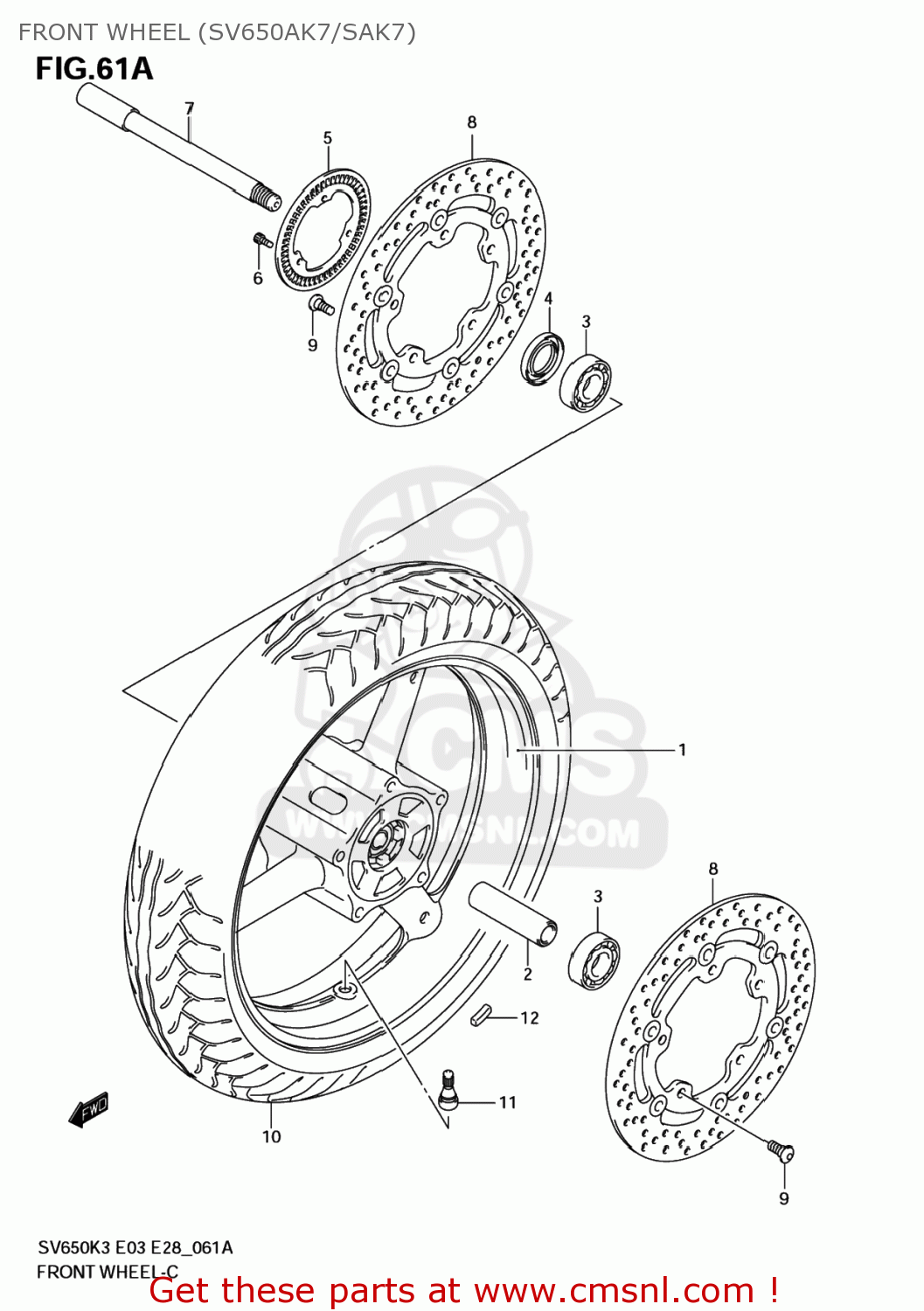

Front wheel (sv650ak7/sak7) diagram SV650S 2003 (K3) USA (E03)

FRONT WHEEL (SV650AK7/SAK7) SV650S 2003 (K3) USA (E03)

FRONT WHEEL (SV650AK7/SAK7) SV650S 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5411108F40019
ref: 1

WHEEL,FR(17M/CXMT3.50)

€ 1,029.00

1

5411108F40019
ref: 1

WHEEL,FR(17M/CXMT3.50)

€ 1,029.00

2

0918017067
ref: 2

SPACER(17.5X25X88)

€ 17.50

3

0813362037
ref: 3

BEARING

€ 25.50

4

0928224004
ref: 4

SEAL,OIL(24X40X7)

€ 8.50

5

5416227G00
ref: 5

RING,SPEED SENSOR FR(50T)

€ 51.00

6

0713005127
ref: 6

BOLT

€ 3.50

7

5471108F10
ref: 7

AXLE,FR

€ 90.50

8

5921038G10
ref: 8

DISC,FR BRAKE

€ 240.00

9

0910608160
ref: 9

BOLT(8X21)

€ 4.00

10

5511017G00
ref: 10

TIRE,FR(120/60ZR17M/C 55W)

€ 156.00

10

5511017G00
ref: 10

TIRE,FR(120/60ZR17M/C 55W)

€ 156.00

11

4313024A00
ref: 11

VALVE ASSY,WHEEL RIM(TR412)

€ 9.00

12-1

5541139G00
ref: 12-1

BALANCER,WHEEL(10G)

€ 5.50

12-2

5541239G00
ref: 12-2

BALANCER,WHEEL(20G)

€ 6.50

12-3

5541339G00
ref: 12-3

BALANCER,WHEEL(30G)

€ 7.50
