TURNSIGNAL LAMP (SV650K3/K4/K5/K6/K7/AK7)

SV650S 2003 (K3) USA (E03)

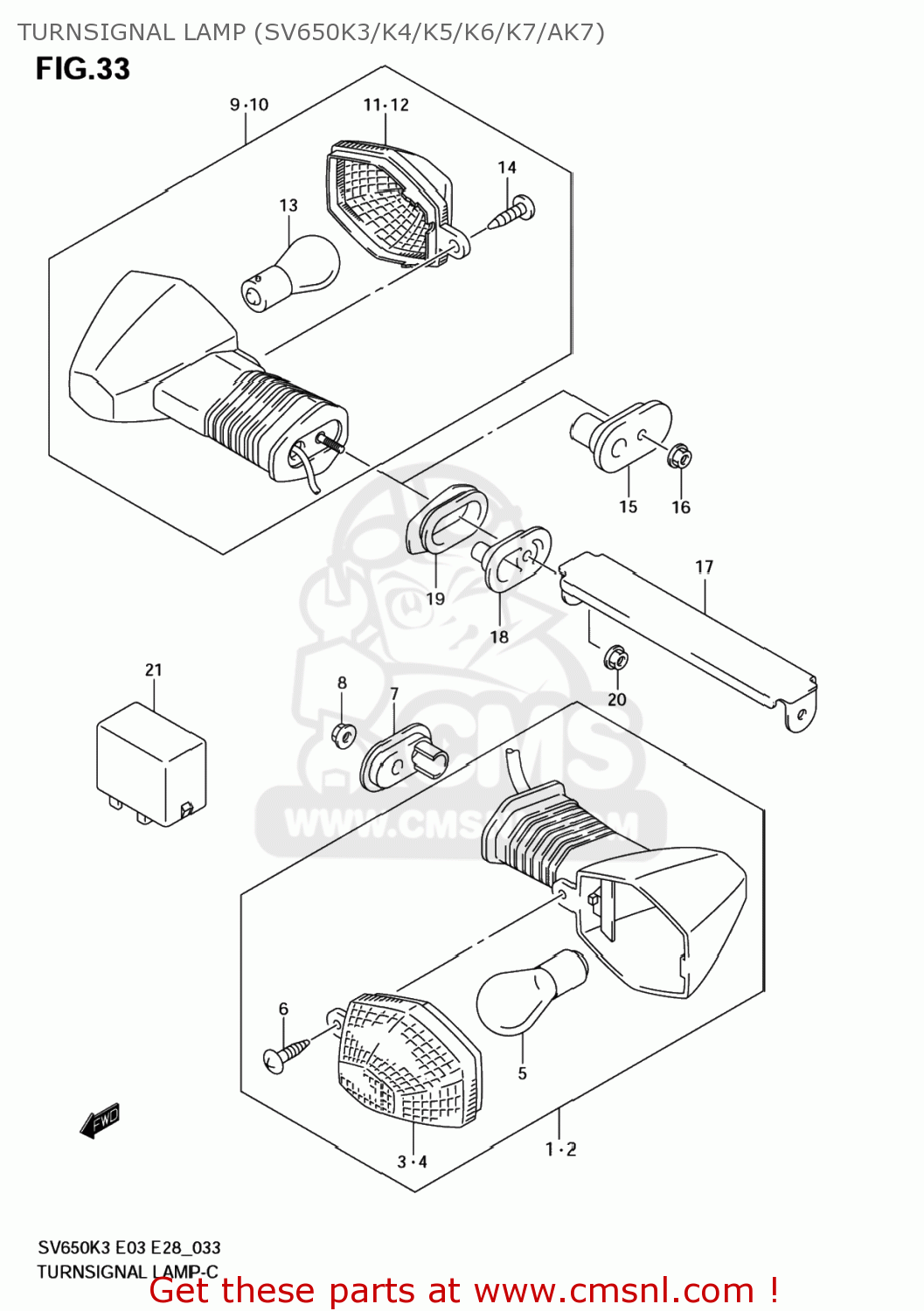

Turnsignal lamp (sv650k3/k4/k5/k6/k7/ak7) diagram SV650S 2003 (K3) USA (E03)

TURNSIGNAL LAMP (SV650K3/K4/K5/K6/K7/AK7) SV650S 2003 (K3) USA (E03)

TURNSIGNAL LAMP (SV650K3/K4/K5/K6/K7/AK7) SV650S 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560129F60
ref: 1

LAMP ASSY,FR TURN SIGNAL,R

€ 82.00

2

3560229F60
ref: 2

LAMP ASSY,FR TURN SIGNAL,L

€ 100.00

3

3561231F30
ref: 3

LENS

€ 8.00

4

3563231F30
ref: 4

LENS

€ 8.00

5

0947112045
ref: 5

BULB(12V21W)

€ 5.00

6

0324204163
ref: 6
03242-0416B

SCREW

€ 5.00

7

3562931F40
ref: 7

PLATE,TURNSIGNAL LAMP

€ 3.50

8

083161005A
ref: 8

NUT

€ 3.00

9-1

3560316G30
ref: 9-1
35603-16GC0

LAMP ASSY,RR TURNSIGNAL,R

€ 103.00

9-2

3560316GC0
ref: 9-2

LAMP ASSY,RR TURNSIGNAL,R

€ 103.00

10-1

3560416G30
ref: 10-1

LAMP ASSY,RR TURNSIGNAL,L

€ 107.50

10-2

3560416GC0
ref: 10-2

LAMP ASSY,RR TURNSIGNAL,L

€ 103.00

11

3563231F30
ref: 11

LENS

€ 8.00

12

3561231F30
ref: 12

LENS

€ 8.00

13

0947112045
ref: 13

BULB(12V21W)

€ 5.00

14

0324204163
ref: 14
03242-0416B

SCREW

€ 5.00

15

3562931F40
ref: 15

PLATE,TURNSIGNAL LAMP

€ 3.50

16

0831610053
ref: 16
08316-1005A

NUT

€ 3.00

17

3562016G00
ref: 17

BRACKET,RR TURNSIGNAL

€ 14.50

18

3562916G00
ref: 18

PLATE,RR TURN SIGNAL

€ 4.50

19

3564716G00
ref: 19

CUSHION,RR

€ 6.00

20

083161005A
ref: 20

NUT

€ 3.00

21

3861003F00
ref: 21

RELAY ASSY,TURNSIGNAL LAMP

€ 96.00
