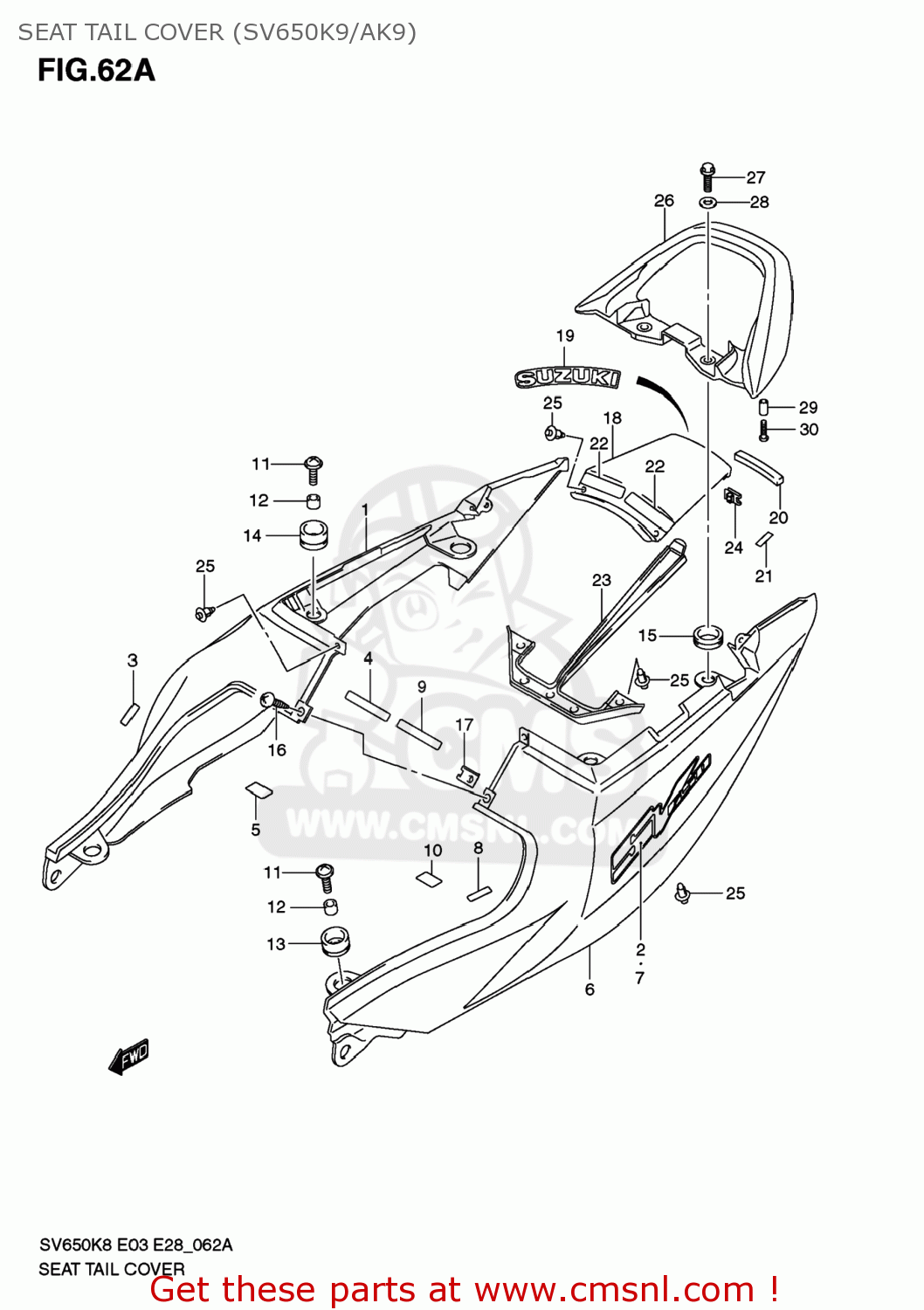

SEAT TAIL COVER (SV650K9/AK9)

ref

part #

description

quantity

1-1

4550117G114EX
ref: 1-1

COVER,SEAT TAIL,R(BLACK)

€ 146.50

1-2

4550117G115AX
ref: 1-2

COVER,SEAT TAIL,R(GRAY)

€ 107.50

2-1

6816117G00GLU
ref: 2-1

EMBLEM,SEAT TAIL COVER

€ 12.50

2-2

6816117G00GLV
ref: 2-2

EMBLEM,SEAT TAIL COVER

€ 13.00

3

4551642F00
ref: 3

TAPE,COVER

€ 7.00

4

4551716G10
ref: 4

TAPE,SEAT TAIL COVER NO.2 FR

€ 8.50

5

4716110D00
ref: 5

PROTECTOR,FRAME COVER

€ 3.50

6-1

4550217G114EX
ref: 6-1

COVER,SEAT TAIL,L(BLACK)

€ 146.50

6-2

4550217G115AX
ref: 6-2

COVER,SEAT TAIL,L(GRAY)

€ 132.50

7-1

6816117G00GLU
ref: 7-1

EMBLEM,SEAT TAIL COVER

€ 12.50

7-2

6816117G00GLV
ref: 7-2

EMBLEM,SEAT TAIL COVER

€ 13.00

8

4551642F00
ref: 8

TAPE,COVER

€ 7.00

9

4551716G10
ref: 9

TAPE,SEAT TAIL COVER NO.2 FR

€ 8.50

10

4716110D00
ref: 10

PROTECTOR,FRAME COVER

€ 3.50

11

0913606082
ref: 11

SCREW(6X25)

€ 3.00

12

0918006286
ref: 12

SPACER(6.5X10X9.4)

€ 2.50

13

0932010052
ref: 13

CUSHION

€ 4.50

14

4711516G00
ref: 14

CUSHION,SEAT TAIL COVER CTR

€ 3.00

15

0932020010
ref: 15

CUSHION

€ 2.50

16

032411512B
ref: 16

SCREW

€ 2.50

17

0914805038
ref: 17

NUT

€ 2.50

18-1

4550316G004CX
ref: 18-1

COVER,SEAT TAIL CTR

€ 76.00

18-1

4550316G004CX
ref: 18-1

COVER,SEAT TAIL CTR

€ 76.00

18-2

4550316G005VX
ref: 18-2

COVER,SEAT TAIL CTR

€ 27.50

18-2

4550316G005VX
ref: 18-2

COVER,SEAT TAIL CTR

€ 27.50

19-1

6816116G0017U
ref: 19-1

EMBLEM,SUZUKI

€ 7.50

19-2

6816116G0020G
ref: 19-2

EMBLEM,SUZUKI

€ 4.50

20

4551816G00
ref: 20

CUSHION,SEAT TAIL COVER CTR

€ 2.50

21

4551716G00
ref: 21

TAPE,SEAT TAIL COVER

€ 6.50

22

4551642F00
ref: 22

TAPE,COVER

€ 7.00

23-1

4551416G00YAY
ref: 23-1

COVER,SEAT TAIL RR

€ 48.00

23-2

4551416G00YHG
ref: 23-2

COVER,SEAT TAIL RR

€ 48.00

24

0914806018
ref: 24

NUT

€ 2.50

25

09409063145PK
ref: 25

CLIP(BLACK)

€ 3.50

26-1

4621116G00YAY
ref: 26-1

HANDLE,PILLION RIDER

€ 163.50

26-2

4621116G00YHG
ref: 26-2

HANDLE,PILLION RIDER

€ 129.50

27

015510840B
ref: 27

BOLT

€ 2.50

28

0916008158
ref: 28

WASHER(8.5X24X2.3)

€ 1.50

29

0918006271
ref: 29

SPACER(6.5X9X18)

€ 2.00

30

0913906112
ref: 30

SCREW(6X25)

€ 3.00
