REAR FENDER
TC100 1973 (K) USA (E03)

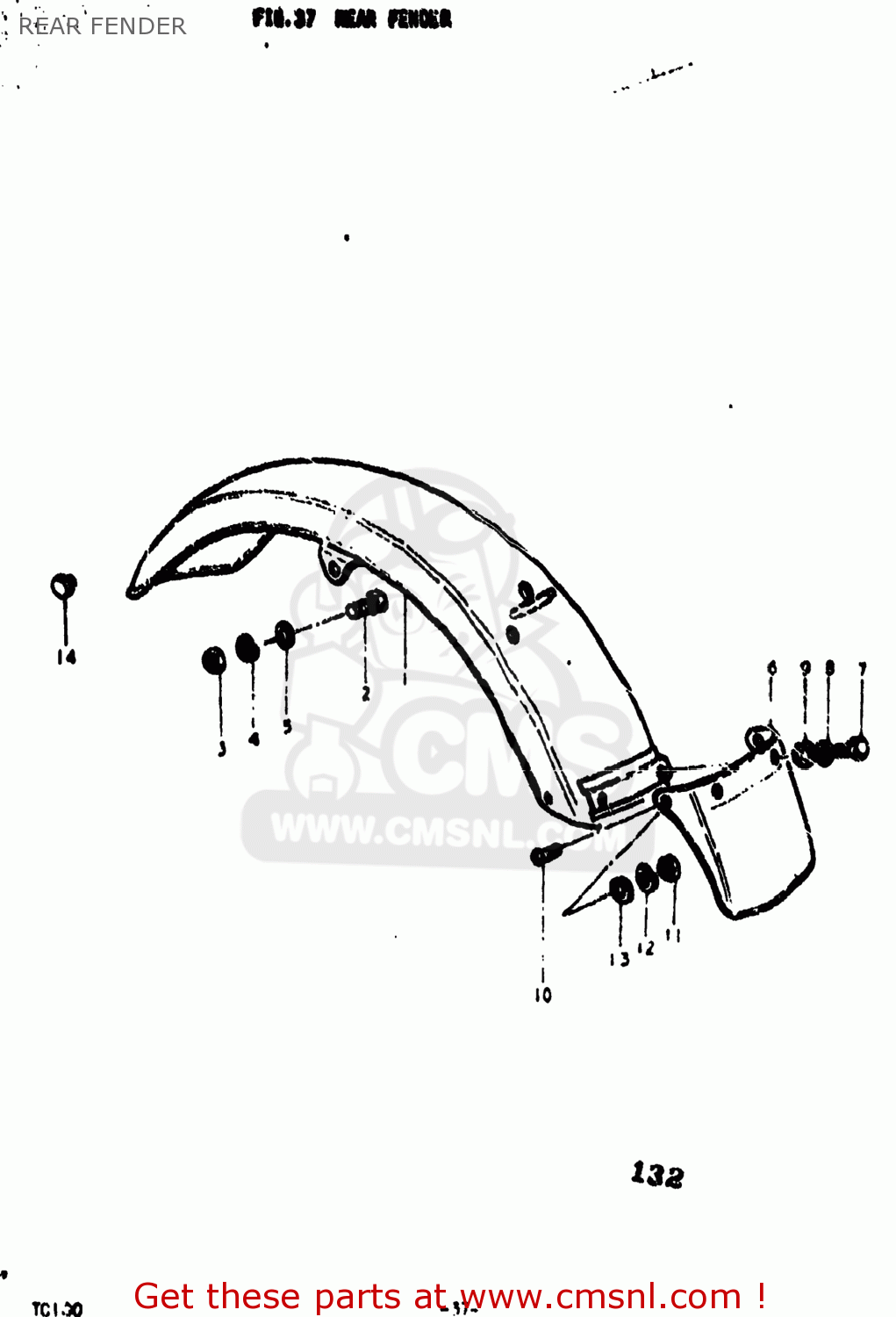

Rear fender diagram TC100 1973 (K) USA (E03)
REAR FENDER TC100 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6311025601
ref: 1-1
FENDER,REAR
€ 108.50
1-2
6311025602
ref: 1-2
FENDER,REAR
€ 108.50
1-3
6311025002737
ref: 1-3
FENDER,REAR
€ 59.50
1-4
6311025003737
ref: 1-4
FENDER,REAR
€ 59.50
2-1
0112208408
ref: 2-1
01500-0840A
BOLT 8X40
€ 3.00
2-2
0112208458
ref: 2-2
01500-08453
BOLT 8X45
€ 2.50
3
0831311087
ref: 3
08313-10087
NUT
€ 2.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
6
6341125000
ref: 6
MUD GUARD,REAR FENDER
€ 5.00
7
0910006026
ref: 7
09100-06067
BOLT
€ 2.50
8
0832121068
ref: 8
08321-01067
LOCK WASHER
€ 2.50
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
0214105107
ref: 10
02142-05107
SCREW
€ 2.50
11
0831111056
ref: 11
NUT
€ 0.00
12
0832121058
ref: 12
08321-0105A
LOCK WASHER
€ 2.00
13
0832221058
ref: 13
08322-01057
WASHER
€ 2.50
14
0932109001
ref: 14
CUSHION
€ 1.50
