TRANSMISSION
TC100 1973 (K) USA (E03)

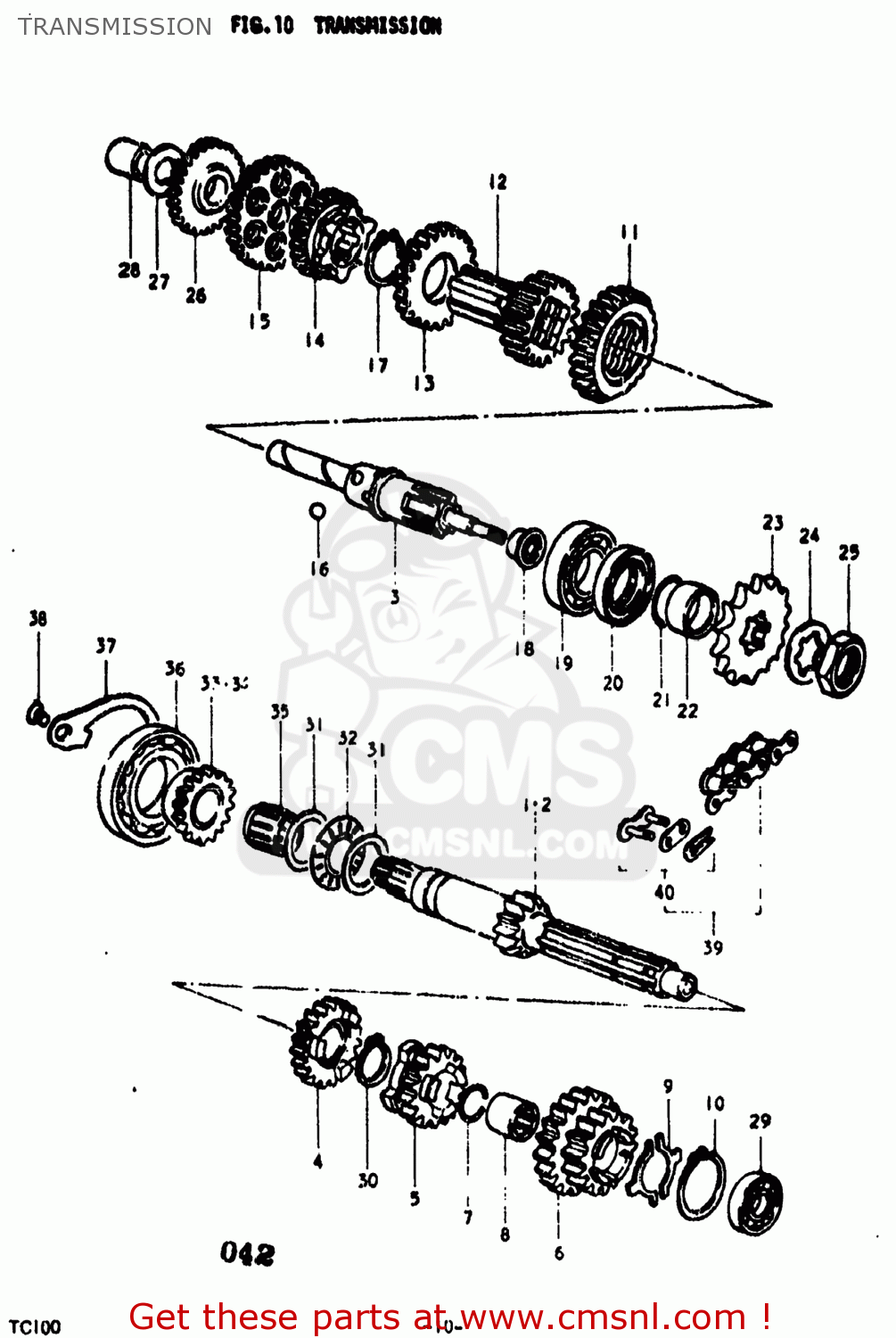

Transmission diagram TC100 1973 (K) USA (E03)
TRANSMISSION TC100 1973 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412125103
ref: 1
SHAFT,COUNTER
€ 32.00
2
2412125104
ref: 2
SHAFT,COUNTER
€ 32.00
3
2413025100
ref: 3
SHAFT,DRIVE
€ 56.00
4
2423125100
ref: 4
GEAR,THIRD DRIVE
€ 20.00
5
2422125100
ref: 5
GEAR,SECOND DRIVE
€ 41.00
6
2424125103
ref: 6
GEAR,FOURTH DRIVE
€ 35.00
7
0938017005
ref: 7
CIRCLIP
€ 1.50
8
2424225100
ref: 8
SLEEVE,FOURTH PINION
€ 18.50
9
0939914002
ref: 9
KNOCK RING
€ 1.50
10
0938026001
ref: 10
RING,SNAP
€ 2.00
11
2461125101
ref: 11
5TH DRIVEN GEAR
€ 19.50
12
2434025100
ref: 12
GEAR,FOURTH DRIVEN
€ 28.50
13
2432125100
ref: 13
GEAR,SECOND DRIVEN
€ 33.50
14
2433125100
ref: 14
GEAR,THIRD DRIVEN
€ 18.50
15
2431025101
ref: 15
GEAR,FIRST DRIVEN
€ 14.50
16
0611110003
ref: 16
BALL
€ 2.50
17
0938025003
ref: 17
RING,SNAP
€ 3.00
18
0928909001
ref: 18
OIL SEAL
€ 6.00
19
0811362050
ref: 19
09262-25003
BEARING
€ 20.50
20
0928330005
ref: 20
SEAL,OIL(30X44X6)
€ 6.00
21
0928025001
ref: 21
O RING(D:1,ID:24.5)
€ 2.50
22
0918025026
ref: 22
09180-25037
SPACER ENGINE SPROCKET 25X30X13.5
€ 6.00
23-1
2751120200
ref: 23-1
SPROCKET,ENGINE
€ 25.00
23-2
2751107400
ref: 23-2
SPROCKET,ENGINE
€ 31.00
24
0916725007
ref: 24
WASHER,LOCK
€ 7.50
25
0914024004
ref: 25
09140-24007
NUT
€ 4.50
26
2626023001
ref: 26
26260-23010
GEAR,KICK STARTER IDLE
€ 48.50
27
0916015016
ref: 27
08211-15301
WASHER
€ 2.00
28
0930315003
ref: 28
09303-15004
BUSHING
€ 5.50
29
0926212001
ref: 29
BEARING(12X28X8)
€ 15.00
30
0938017001
ref: 30
CIRCLIP
€ 2.00
31
0916021007
ref: 31
WASHER(21X30X0.8)
€ 3.50
32-1
0926321004
ref: 32-1
09263-21006
BEARING 21X35X2.8
€ 11.50
32-2
0926321006
ref: 32-2
BEARING(21X32X2.85)
€ 11.50
33
2628019000
ref: 33
GEAR,KICK STARTER DRIVEN(NT:16
€ 52.00
34
2628125001
ref: 34
GEAR,KICK STARTER DRIVE
€ 31.00
35
0926319006
ref: 35
BEARING(19.2X23.2X19)
€ 29.50
36
0926230002
ref: 36
09262-30003
BEARING
€ 30.00
37
2474125000
ref: 37
PLATE,COUNTERSHAFT BEARING
€ 6.50
38
0212106108
ref: 38
02122-0610A
SCREW
€ 1.50
39-1
2760036010
ref: 39-1
27600-29B20-124
CHAIN ASSEMBLY,DRIVE
€ 128.00
39-2
2760036011
ref: 39-2
27600-29B20-124
CHAIN ASSEMBLY,DRIVE
€ 128.00
40-1
2762020210
ref: 40-1
27620-40220
JOINT ASSEMBLY,CHAIN
€ 7.00
40-2
2762036011
ref: 40-2
27620-36012
JOINT ASSEMBLY,CHAIN
€ 4.50
