FRAME - OIL TANK
TC100 1975 (M) USA (E03)

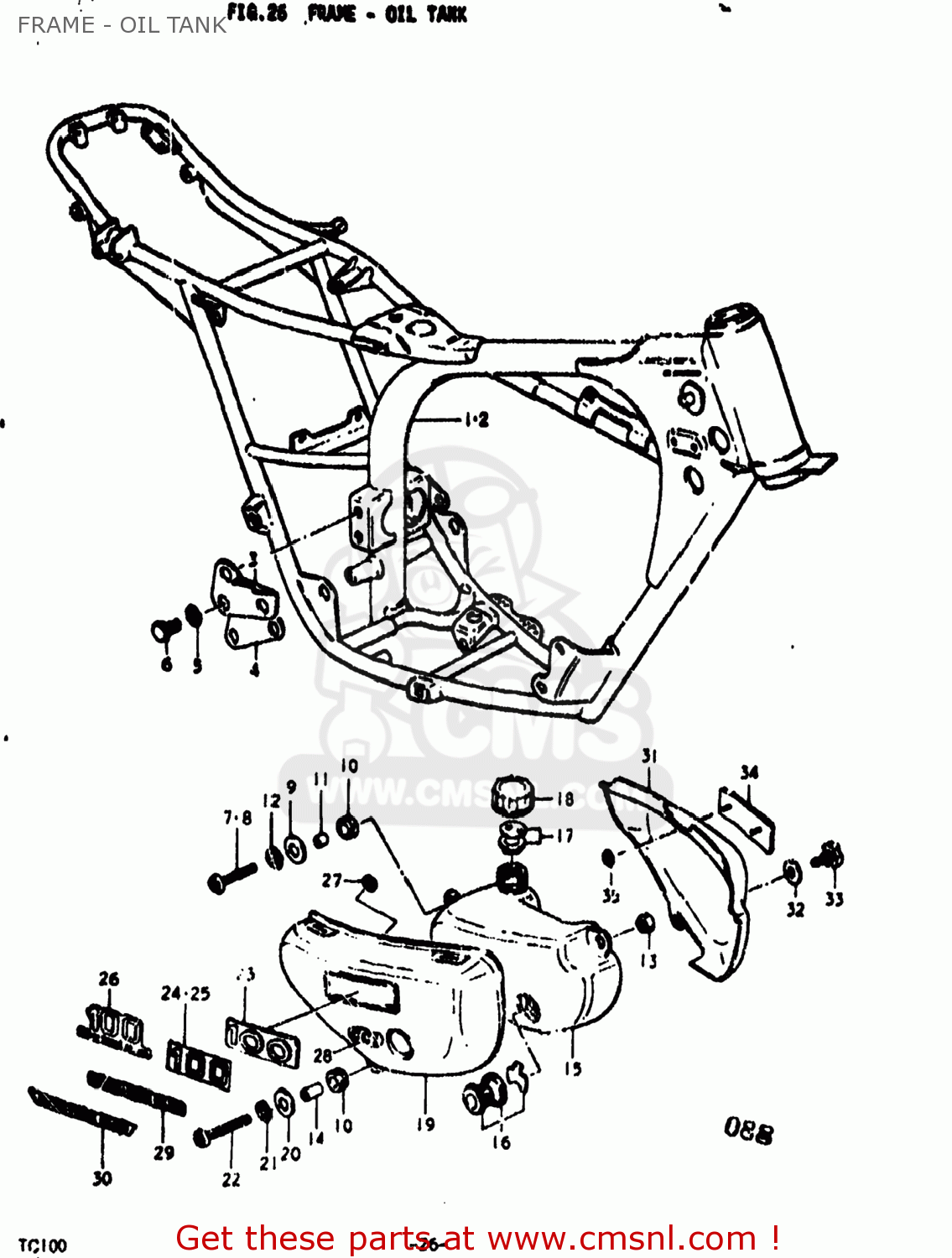

Frame - oil tank diagram TC100 1975 (M) USA (E03)
FRAME - OIL TANK TC100 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110025300019
ref: 1
FRAME
€ 169.00
2-1
4110025301019
ref: 2-1
41100-25710-019
FRAME
€ 169.00
2-2
4110025710019
ref: 2-2
FRAME
€ 169.00
3
4159125300
ref: 3
PLATE,ENGINE MOUNTING
€ 3.50
4
4159125000
ref: 4
PLATE,ENGINE MOUNTING
€ 4.50
5
0832121088
ref: 5
08321-01087
LOCK WASHER
€ 2.00
6
0112206168
ref: 6
01500-06167
BOLT
€ 3.00
6
0112208168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0211206208
ref: 7
02112-06207
SCREW
€ 2.00
7
0211206208
ref: 7
02112-06207
SCREW
€ 2.00
8
0211206258
ref: 8
02112-06257
SCREW
€ 2.00
9
0916006007
ref: 9
09160-06084
WASHER
€ 2.00
10
0932010008
ref: 10
CUSHION
€ 2.50
11
0918006030
ref: 11
09180-06310
SPACER (6.8X10X10)
€ 2.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
0831131068
ref: 13
08310-00067
NUT
€ 2.50
14
0918006026
ref: 14
09180-06195
SPACER
€ 3.50
15
4461125300
ref: 15
TANK,OIL
€ 32.50
16-1
4464031807
ref: 16-1
44600-31831
LENS SET,OIL LEVEL
€ 18.00
16-2
4460031830
ref: 16-2
44600-31831
LENS,OIL LEVEL INSPECTION
€ 18.00
17-1
4466033808
ref: 17-1
44600-30832
GASKET SET,OIL TANK CAP
€ 6.00
17-2
4460035820
ref: 17-2
44600-30832
LENS,OIL LEVEL INSPECTION
€ 6.00
17-3
4460035821
ref: 17-3
44600-30832
LENS,OIL LEVEL INSPECTION
€ 6.00
18-1
4465105000
ref: 18-1
44651-05003
CAP,OIL TANK
€ 4.00
18-2
4465105001
ref: 18-2
44651-05003
CAP,OIL TANK
€ 4.00
19-1
4711125300215
ref: 19-1
47111-25300-019
COVER,FRAME,RIGHT
€ 52.00
19-2
4711125300712
ref: 19-2
47111-25300-019
COVER,FRAME,RIGHT
€ 52.00
19-3
4711125300163
ref: 19-3
47111-25300-019
COVER,FRAME,RIGHT
€ 52.00
19-4
4711125610737
ref: 19-4
COVER,FRAME,RIGHT
€ 23.50
19-5
471112561000N
ref: 19-5
COVER,FRAME,RIGHT
€ 23.50
20
0916006007
ref: 20
09160-06084
WASHER
€ 2.00
21
0332121068
ref: 21
LOCK WASHER
€ 0.00
22
0211206307
ref: 22
SCREW
€ 2.50
23
6814125400
ref: 23
EMBLEM,FRAME COVER
€ 6.00
24-1
6813125600763
ref: 24-1
EMBLEM
€ 2.00
24-2
6813125600991
ref: 24-2
EMBLEM
€ 2.50
25
681312562060K
ref: 25
NO PRODUCT DESCRIPTION AVAILABLE
€ 1.50
26
6813125640538
ref: 26
68131-25640
EMBLEM
€ 5.00
27
0914803004
ref: 27
09148-03011
NUT
€ 2.00
28
6817126000
ref: 28
EMBLEM,CCIS
€ 4.00
29
6836326200
ref: 29
LABEL,COMPANY NAME
€ 7.50
30
6836326300
ref: 30
LABEL (COMPANY NAME)
€ 2.50
31-1
4721125300215
ref: 31-1
47211-25300-019
COVER,FRAME,LEFT
€ 53.00
31-2
4721125300712
ref: 31-2
COVER,FRAME,LEFT
€ 53.00
31-3
4721125300163
ref: 31-3
47211-25300-019
COVER,FRAME,LEFT
€ 53.00
31-4
4721125610737
ref: 31-4
47211-25610-019
COVER,FRAME,LEFT
€ 21.00
31-5
472112561000N
ref: 31-5
47211-25610-019
COVER,FRAME,LEFT
€ 21.00
32
0915205101
ref: 32
NUT (5MM)
€ 2.00
33-1
4713004001
ref: 33-1
KNOB,FRAME COVER
€ 4.50
33-2
4713004001
ref: 33-2
KNOB,FRAME COVER
€ 4.50
34
6814125400
ref: 34
EMBLEM,FRAME COVER
€ 6.00
35
0914803004
ref: 35
09148-03011
NUT
€ 2.00
