FRAME
TC125 1974 (L) USA (E03)

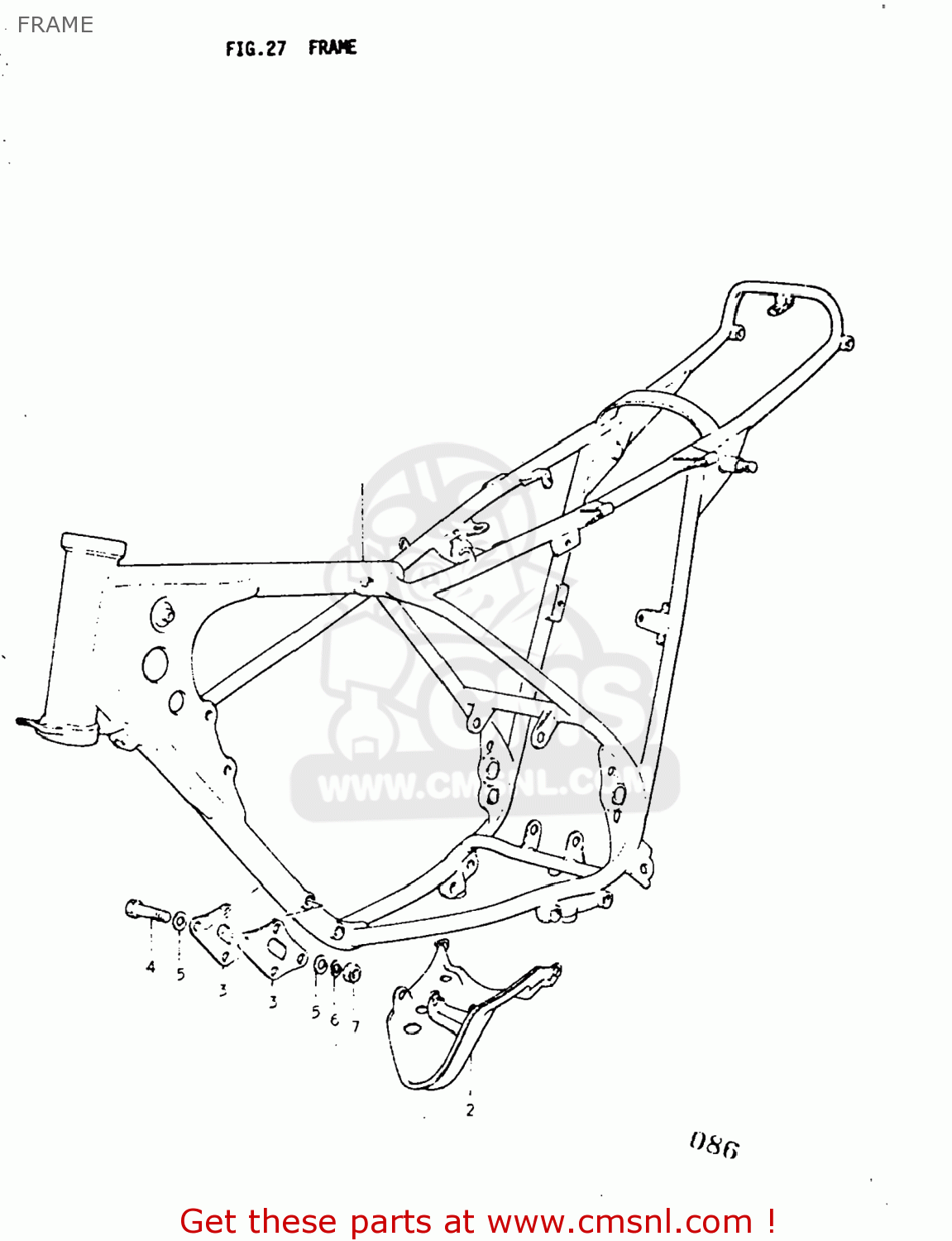

Frame diagram TC125 1974 (L) USA (E03)
FRAME TC125 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4110028100019
ref: 1-1
FRAME
€ 0.00
1-2
4110028700019
ref: 1-2
41100-28701-019
FRAME
€ 0.00
1-3
4110028701019
ref: 1-3
FRAME
€ 0.00
1-4
4110028401019
ref: 1-4
FRAME
€ 0.00
2
1191028000
ref: 2
GROMMET
€ 28.50
3
4159128000
ref: 3
PLATE,ENGINE MOUNTING
€ 7.50
4
0111208708
ref: 4
01500-0870B
BOLT
€ 2.50
5
0832211088
ref: 5
08322-01087
WASHER
€ 2.00
6
0832121088
ref: 6
08321-01087
LOCK WASHER
€ 2.00
7
0831211088
ref: 7
08310-00087
NUT
€ 2.00
