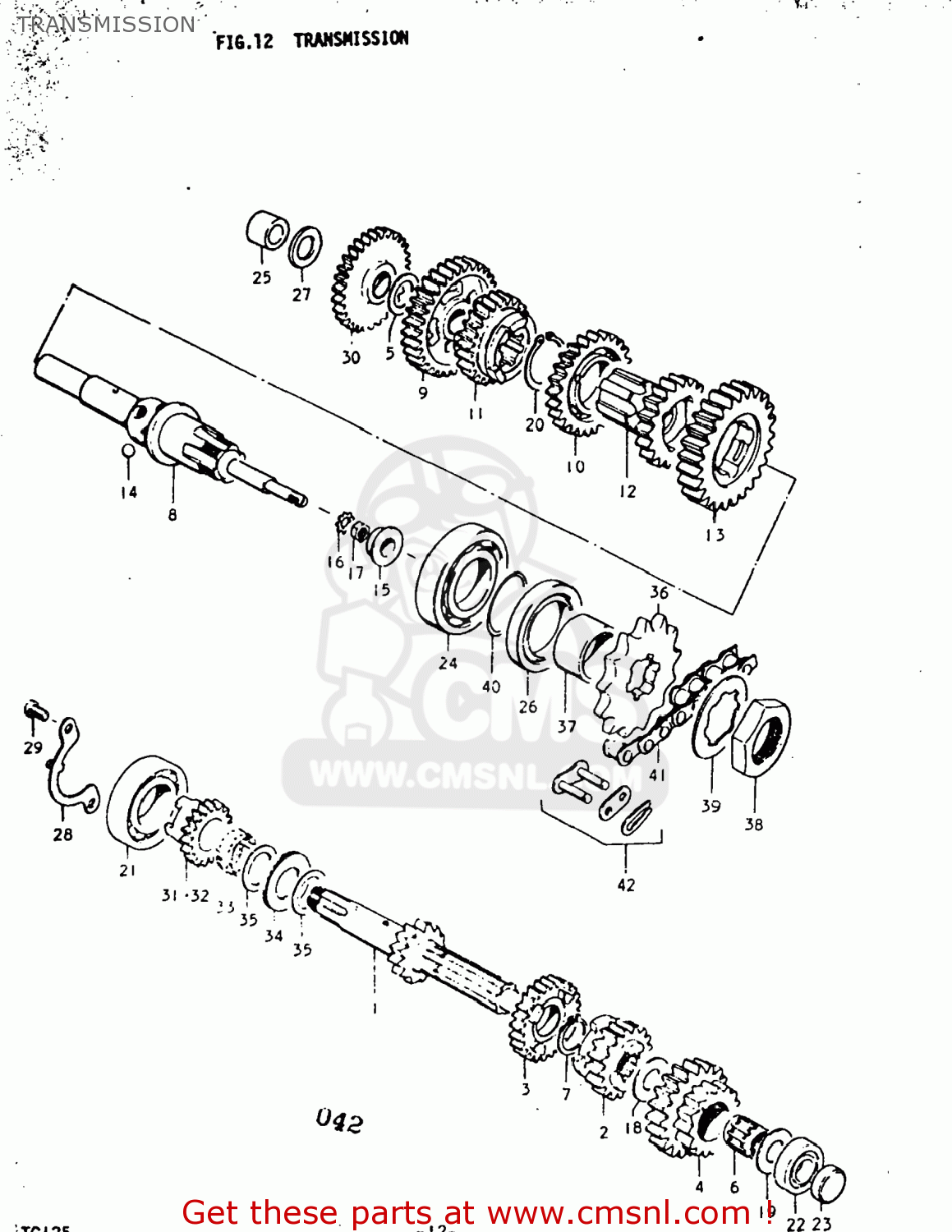

TRANSMISSION

ref

part #

description

quantity

1-1

2412128200
ref: 1-1

SHAFT,COUNTER

€ 66.50

1-2

2412128201
ref: 1-2

SHAFT,COUNTER

€ 66.50

2

2422128200
ref: 2

GEAR,SECOND DRIVE

€ 15.00

3

2423128200
ref: 3

GEAR,THIRD DRIVE

€ 10.00

4

2424128200
ref: 4

GEAR,FOURTH DRIVE

€ 27.50

5

0821115241
ref: 5
09181-15166

WASHER,THRUST

€ 4.00

6

0926315010
ref: 6

ROLLER BEARING (15X19X1

€ 7.50

7

0938020003
ref: 7
09380-20007

CIRCLIP

€ 3.00

8

2413028200
ref: 8

SHAFT,DRIVE

€ 113.00

9

2431028200
ref: 9

GEAR,FIRST DRIVEN

€ 15.50

10

2432128200
ref: 10

GEAR,SECOND DRIVEN

€ 13.00

11

2433128200
ref: 11

GEAR,THIRD DRIVEN

€ 14.50

12

2434028200
ref: 12

GEAR,FOURTH DRIVEN

€ 16.50

13

2461128200
ref: 13

NO PRODUCT DESCRIPTION AVAILABLE

€ 19.00

14

0611110003
ref: 14

BALL

€ 2.50

15

0928909001
ref: 15

OIL SEAL

€ 6.00

16

0832321068
ref: 16
08323-31068

LOCK WASHER

€ 1.50

17

0831111068
ref: 17
08310-00067

NUT

€ 2.50

18

0821115241
ref: 18
09181-15166

WASHER,THRUST

€ 4.00

19

0916015016
ref: 19
08211-15301

WASHER

€ 2.00

20

0833111289
ref: 20
08331-3128A

CIRCLIP

€ 2.50

21

0811060060
ref: 21
08113-60060

BEARING, RH

€ 17.00

22

0811360020
ref: 22

BEARING

€ 14.00

23

0924119001
ref: 23

PLUG

€ 6.00

24

0811362050
ref: 24
09262-25003

BEARING

€ 20.50

25-1

0930315003
ref: 25-1
09303-15004

BUSHING

€ 5.50

25-2

0930315004
ref: 25-2

BUSH

€ 5.50

26

0928330005
ref: 26

SEAL,OIL(30X44X6)

€ 6.00

27

0916015016
ref: 27
08211-15301

WASHER

€ 2.00

28

2474128001
ref: 28

RETAINER,CNTR SHAFT BEARING

€ 10.00

29-1

0211206108
ref: 29-1
02112-06107

SCREW

€ 1.50

29-2

0211206128
ref: 29-2
02112-06127

SCREW 6X12

€ 2.00

30

2626028002
ref: 30
26260-28003

GEAR,KICK STARTER IDLE

€ 38.00

31

2628023000
ref: 31
26280-23010

GEAR,KICK STARTER DRIVE

€ 60.50

32-1

2628136100
ref: 32-1

GEAR,KICK STARTER DRIVE

€ 64.50

32-2

2628136200
ref: 32-2

GEAR,KICK STARTER DRIVEN

€ 64.50

33

0926319006
ref: 33

BEARING(19.2X23.2X19)

€ 29.50

34

0926321006
ref: 34

BEARING(21X32X2.85)

€ 11.50

35

0916021007
ref: 35

WASHER(21X30X0.8)

€ 3.50

36

2751128200
ref: 36

SPROCKET,ENGINE

€ 19.00

37

0918025037
ref: 37

SPACER (25X30X12.4)

€ 6.00

38

0914024004
ref: 38
09140-24007

NUT

€ 4.50

39

0916725007
ref: 39

WASHER,LOCK

€ 7.50

40

0928025001
ref: 40

O RING(D:1,ID:24.5)

€ 2.50

41

2760036600
ref: 41
27600-43D01-108

CHAIN ASSEMBLY,DRIVE

€ 80.00

42

2762020210
ref: 42
27620-40220

JOINT ASSEMBLY,CHAIN

€ 7.00
