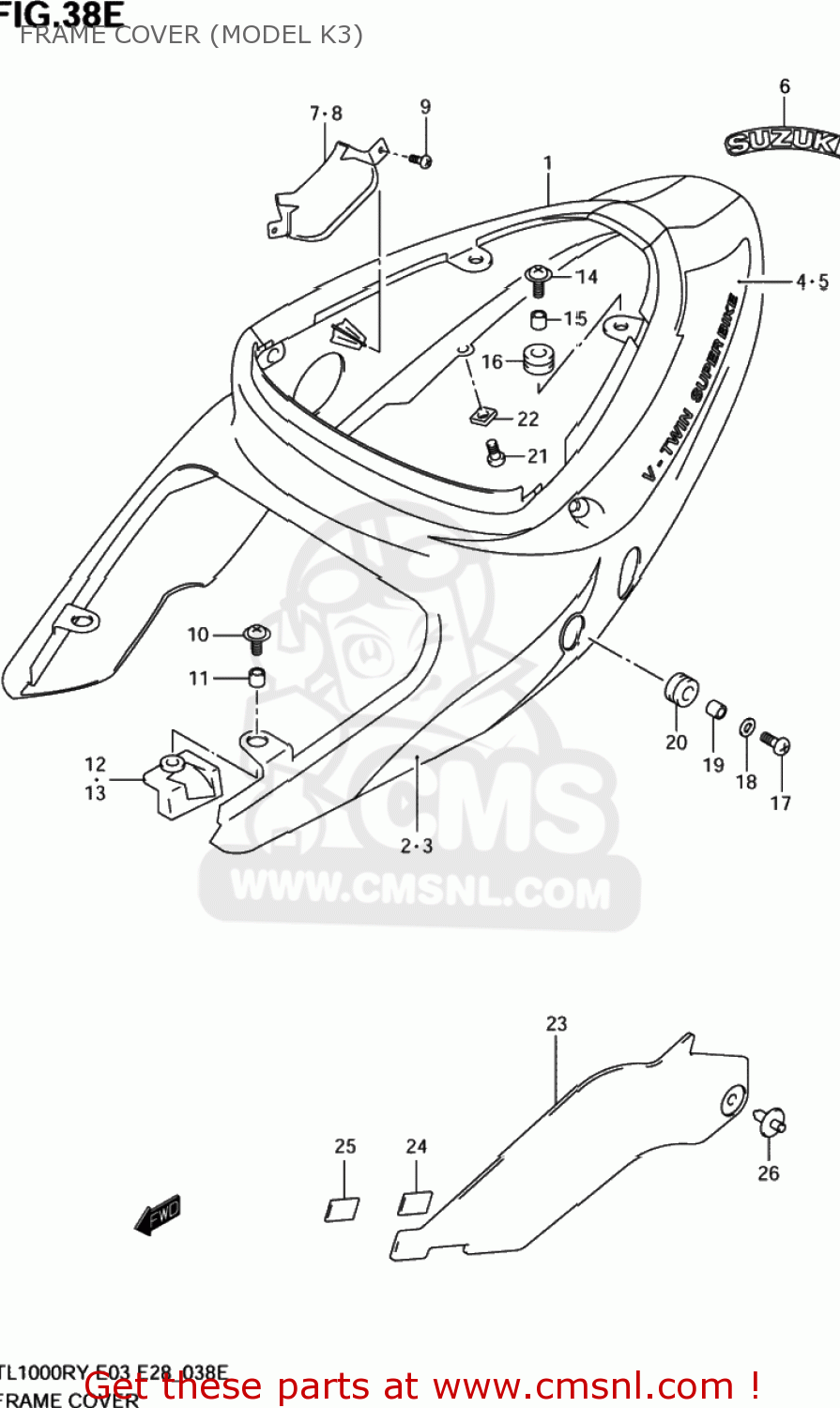

FRAME COVER (MODEL K3)

ref

part #

description

quantity

1-1

4711002FK00JW
ref: 1-1

COVER,FRAME(WHITE)

€ 0.00

1-2

4711002FK0YU9
ref: 1-2

COVER,FRAME(YELLOW)

€ 0.00

2-1

6813502FA01LE
ref: 2-1

TAPE,FRAME COVER STRIPE,R

€ 0.00

2-2

6813502FA0019
ref: 2-2

TAPE,FRAME COVER STRIPE,R

€ 0.00

3-1

6814502FA01LE
ref: 3-1

TAPE, LH LOWER (BLUE)

€ 0.00

3-2

6814502FA0019
ref: 3-2

TAPE,FRAME COVER STRIPE,L

€ 0.00

4-1

6813502FF03SP
ref: 4-1

TAPE,FRAME COVER,R

€ 0.00

4-2

6813502FF0CT5
ref: 4-2

TAPE,FRAME COVER,R

€ 0.00

5-1

6814502FF03SP
ref: 5-1

TAPE, LH UPPER

€ 0.00

5-2

6814502FF0CT5
ref: 5-2

TAPE, LH UPPER

€ 0.00

6

6813139F00019
ref: 6

EMBLEM,SUZUKI

€ 9.50

7

4751102FA0
ref: 7

CAP,FRAME COVER HOLE,R

€ 8.00

8

4752102FA0
ref: 8

CAP,FRAME COVER HOLE,L

€ 7.50

9

0354104163
ref: 9
03541-0416A

SCREW

€ 1.50

10

0913606022
ref: 10

SCREW(6X20)

€ 2.50

11

0918006263
ref: 11

SPACER(6.5X9X9)

€ 2.00

12

4716102FA0
ref: 12

CUSHION,FRAME COVER,R

€ 10.50

13

4726102FA0
ref: 13

CUSHION,FRAME COVER,L

€ 15.50

14

0913606105
ref: 14

SCREW(6X20)

€ 2.00

15

0918006286
ref: 15

SPACER(6.5X10X9.4)

€ 2.50

16

0932010045
ref: 16

CUSHION

€ 3.50

17

0913906071
ref: 17

SCREW(6X20)

€ 5.00

18

0916006054
ref: 18

WASHER(6.5X22X1.6)

€ 2.00

19

0918006258
ref: 19

SPACER(6.5X9X6.7)

€ 3.00

20

9443326B00
ref: 20

CUSHION

€ 4.00

21

0940907313
ref: 21

CLIP

€ 3.50

22

0914805038
ref: 22

NUT

€ 2.50

23

4732102FA0
ref: 23

COVER,FRAME,FRONT,RIGHT

€ 0.00

24

4732202FA0
ref: 24

FASTENER,NO.1

€ 0.00

25

4732302FA0
ref: 25

FASTENER,NO.2

€ 0.00

26

09409073306GS
ref: 26

CLIP(GRAY)

€ 2.50
