HEADLAMP
TL1000R 1998 (W) USA (E03)

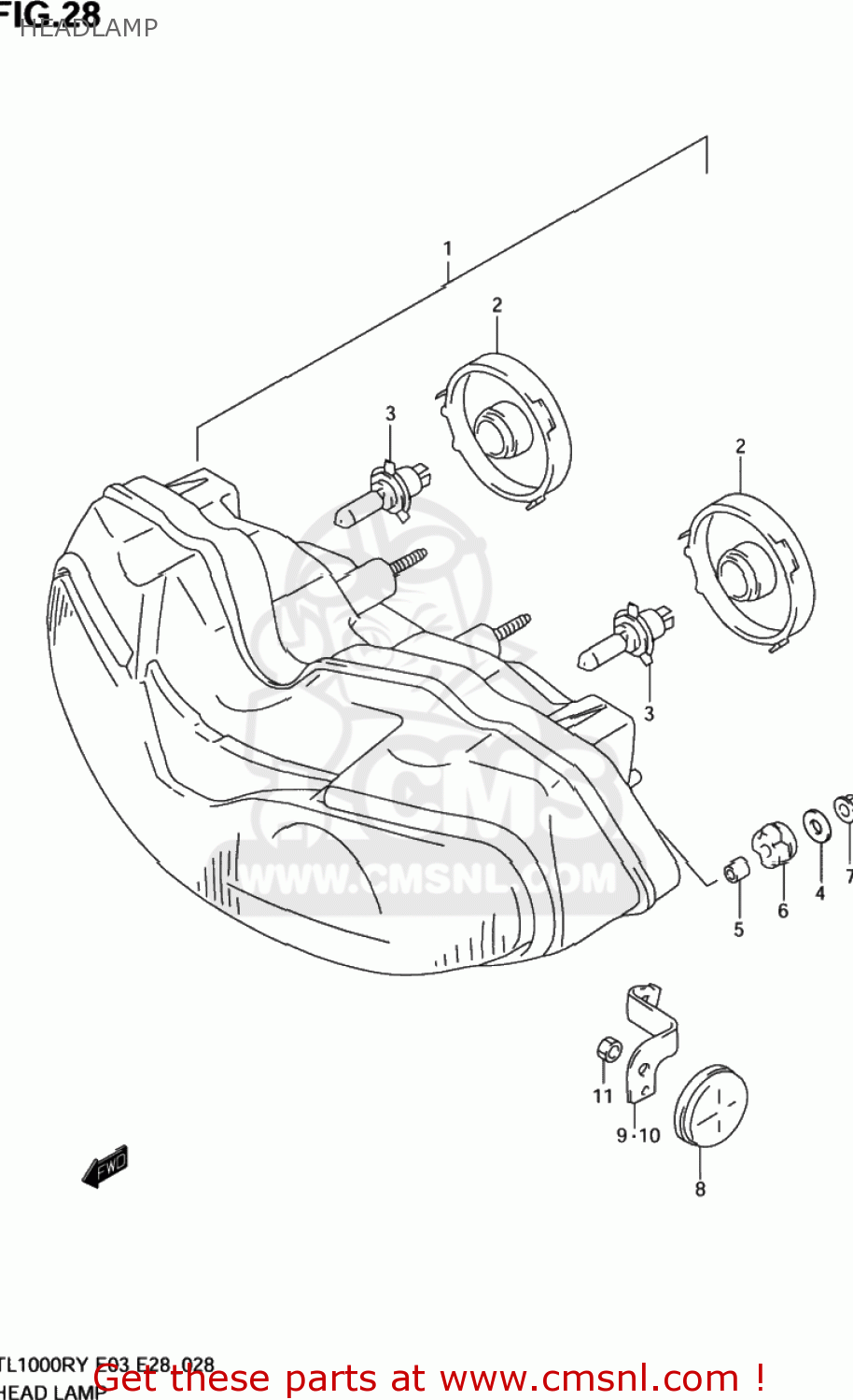

Headlamp diagram TL1000R 1998 (W) USA (E03)
HEADLAMP TL1000R 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3510002F80999
ref: 1-1
35100-02F82-999
HEADLAMP ASSEMBLY
€ 171.00
1-2
3510002F81999
ref: 1-2
35100-02F82-999
HEADLAMP ASSEMBLY
€ 171.00
1-3
3510002F82999
ref: 1-3
HEADLAMP ASSY
€ 171.00
2
3512502F00
ref: 2
COVER,SOCKET
€ 14.00
3
0947112185
ref: 3
09471-12060
BULB(12V60/55W,H4)
€ 8.00
4-1
0916006088
ref: 4-1
WASHER(6.5X20X1.6)
€ 2.00
4-2
0916006109
ref: 4-2
WASHER(6.5X18X1.6)
€ 2.00
5
0918006268
ref: 5
SPACER(6.5X9X13.5)
€ 2.00
6
0932009015
ref: 6
CUSHION
€ 2.50
7
0831610063
ref: 7
08316-1006B
NUT
€ 2.50
8
3595014A00
ref: 8
REFLECTOR,REFLEX FR
€ 15.00
9
3595602F00
ref: 9
BRACKET,FR SIDE RR,R
€ 6.50
10
3595702F00
ref: 10
BRACKET,FR SIDE RR,L
€ 6.50
11
0831000053
ref: 11
08310-0005A
NUT
€ 2.50
