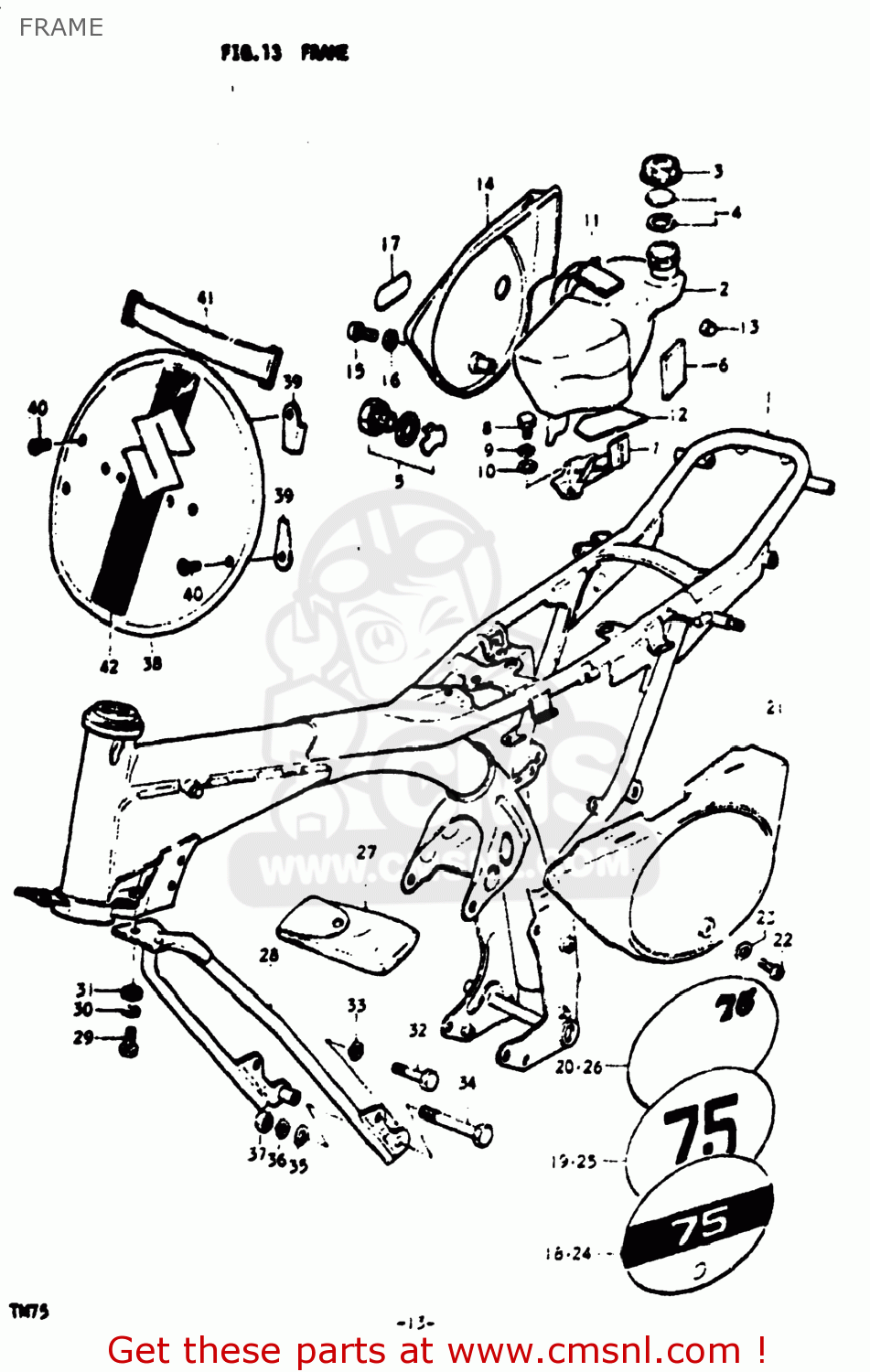

FRAME

ref

part #

description

quantity

1

4110026001019
ref: 1

FRAME

€ 145.00

2

4461126100
ref: 2

TANK,OIL

€ 27.50

3

4465105001
ref: 3
44651-05003

CAP,OIL TANK

€ 4.00

4

4460035820
ref: 4
44600-30832

LENS,OIL LEVEL INSPECTION

€ 6.00

5

4460031830
ref: 5
44600-31831

LENS,OIL LEVEL INSPECTION

€ 18.00

6

3365228000
ref: 6
33651-37000

CUSHION 20X45X6

€ 6.00

7

4482026000
ref: 7
44820-26001

44820-26001

€ 0.00

8

0111206128
ref: 8
01500-06127

BOLT

€ 2.00

9

0832121068
ref: 9
08321-01067

LOCK WASHER

€ 2.50

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0946200040
ref: 11

BAND

€ 4.50

12

4483125000
ref: 12

CUSHION

€ 0.00

13

0932106013
ref: 13

CUSHION

€ 2.50

14-1

4711126100
ref: 14-1

COVER,FRAME,RIGHT

€ 14.50

14-2

4711126600163
ref: 14-2

COVER,FRAME,RIGHT

€ 11.50

15

0211206307
ref: 15

SCREW

€ 2.50

16

0832221068
ref: 16
08322-01067

WASHER

€ 2.00

17

6817126000
ref: 17

EMBLEM,CCIS

€ 4.00

18

6813126100
ref: 18
68131-26102

EMBLEM

€ 3.50

19

6813126101
ref: 19
68131-26102

EMBLEM

€ 3.50

20

6813126102
ref: 20

EMBLEM

€ 3.50

21-1

4721126100
ref: 21-1

COVER,FRAME,LEFT

€ 20.50

21-2

4721126600163
ref: 21-2

COVER,FRAME,LEFT

€ 0.00

22

0211105558
ref: 22
02112-05557

SCREW

€ 2.50

23

0832211058
ref: 23
08322-01057

WASHER 5MM

€ 2.50

24

6814126100
ref: 24
68141-26102

EMBLEM,FRAME COVER

€ 5.00

25

6814126101
ref: 25
68141-26102

EMBLEM,FRAME COVER

€ 5.00

26

6814126102
ref: 26

EMBLEM,FRAME COVER

€ 5.00

27

0980000108
ref: 27
09800-21028

TOOL SET

€ 43.50

28

4130026001
ref: 28

NO PRODUCT DESCRIPTION AVAILABLE

€ 29.50

29

0111206128
ref: 29
01500-06127

BOLT

€ 2.00

30

0832121068
ref: 30
08321-01067

LOCK WASHER

€ 2.50

31

0832211068
ref: 31
08322-0106B

WASHER 6MM

€ 2.00

32

0111206408
ref: 32
01500-0640B

BOLT

€ 2.00

33

0832121068
ref: 33
08321-01067

LOCK WASHER

€ 2.50

34

0112208508
ref: 34
01500-08507

Bolt 8X50

€ 3.00

35

0832211088
ref: 35
08322-01087

WASHER

€ 2.00

36

0832121088
ref: 36
08321-01087

LOCK WASHER

€ 2.00

37

0831212088
ref: 37
08310-00087

NUT

€ 2.00

38-1

9491016500
ref: 38-1

PLATE SET,FRONT

€ 19.00

38-2

9491026600
ref: 38-2

PLATE SET,FRONT

€ 0.00

39

9495028300
ref: 39

NO PRODUCT DESCRIPTION AVAILABLE

€ 2.50

40

0214106127
ref: 40
02142-06127

SCREW 6X12

€ 1.50

41

0946200055A
ref: 41

BAND

€ 4.00

42

6816916500
ref: 42

EMBLEM,FRONT NUMBER PLATE

€ 3.50
