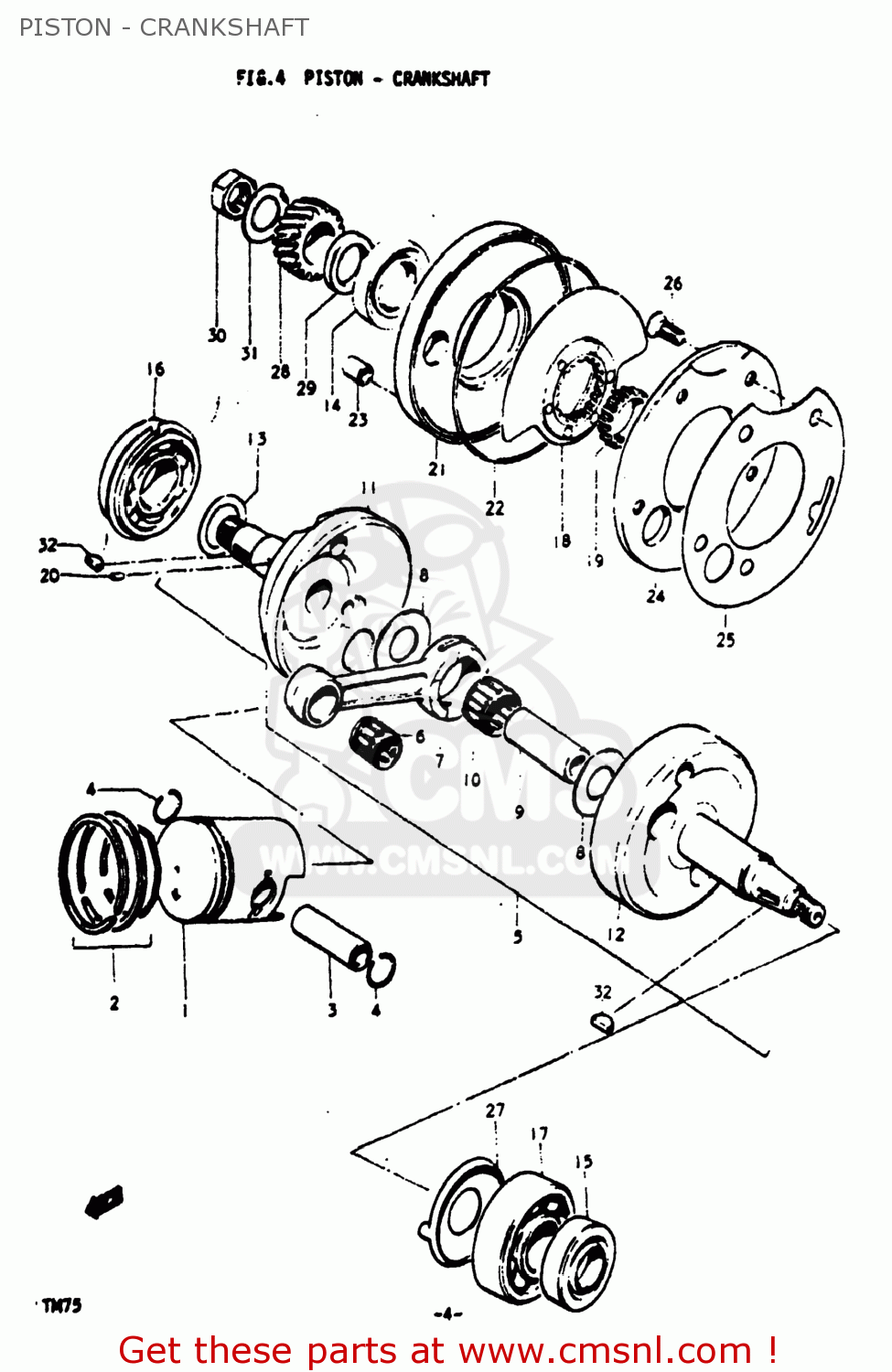

PISTON - CRANKSHAFT - TM75 1976 (A) USA (E03)

ref

part #

description

quantity

1-1

1211026101
ref: 1-1
12110-26102-0F0

PISTON (47.00MM)

€ 41.00

1-2

1211026120
ref: 1-2
12100-26100-025

PISTON

€ 37.50

1-3

1211026110
ref: 1-3
12100-26100-050

PISTON

€ 25.50

2-1

1214026100
ref: 2-1
12140-35410

RING SET,PISTON

€ 20.50

2-1

1214026100
ref: 2-1
12140-35410

RING SET,PISTON

€ 20.50

2-2

1210025870
ref: 2-2
12140-35410

RING SET,PISTON

€ 38.50

2-3

1210125810
ref: 2-3
12140-26100-025

TOP END KIT,ENGINE

€ 13.50

2-4

1214025780
ref: 2-4
12140-26100-025

RING SET,PISTON

€ 13.50

2-5

1210025880
ref: 2-5

RING SET,PISTON(OS:0.50)

€ 28.50

2-6

1214025790
ref: 2-6
12140-35410-050

RING SET,PISTON

€ 28.50

3

1215109204
ref: 3

PIN,PISTON

€ 8.50

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5-1

1220022820
ref: 5-1

CRANKSHAFT ASSEMBLY

€ 146.50

5-2

1220026100
ref: 5-2

CRANKSHAFT ASSY

€ 146.50

6

0926312003
ref: 6
09263-12023

BEARING

€ 9.00

7-1

1216126100
ref: 7-1
12161-05001

CONNECTING ROD

€ 33.50

7-1

1216126100
ref: 7-1
12161-05001

CONNECTING ROD

€ 33.50

7-2

1216105000
ref: 7-2
12161-05001

CONNECTING ROD

€ 33.50

8

0916019002
ref: 8
09160-19001

WASHER

€ 3.50

9

1221105000
ref: 9

PIN,CRANK

€ 33.00

10-1

0926319003
ref: 10-1
09263-19009

BEARING

€ 15.00

10-2

0926319007
ref: 10-2
09263-19009

BEARING

€ 15.00

11-1

1222005000
ref: 11-1

CRANKSHAFT

€ 56.50

11-2

1222105002
ref: 11-2

CRANKSHAFT,RIGHT

€ 56.50

12-1

1226005000
ref: 12-1

CRANKSHAFT,LEFT

€ 56.50

12-2

1226105001
ref: 12-2

CRANKSHAFT,LEFT

€ 56.50

13

0822120285
ref: 13
09181-20158

THRUST WASHER

€ 2.50

14

0928325009
ref: 14
09283-25107

OIL SEAL (25X44X7)

€ 6.50

15

0928320011
ref: 15
09283-20034

OIL SEAL

€ 6.00

16

0926220015
ref: 16

BEARING(20X52X15)

€ 30.50

17

0926220005
ref: 17

BEARING(20X47X14)

€ 29.50

18

1241005010
ref: 18

VALVE,ROTARY

€ 17.00

19

1242105210
ref: 19

GUIDE,ROTERY VALVE

€ 17.50

20

0621103052
ref: 20
04221-03059

PIN 3X5

€ 1.50

21

1245026000
ref: 21
12450-05002

SEAT,CRANKCASE OUTER VALVE

€ 1,665.00

22

0928000002
ref: 22

O RING(D:2.4,ID:100.6)

€ 5.50

23

0421109129
ref: 23

PIN

€ 2.00

24

1246005001
ref: 24
12461-05002

SEAT,INNER VALVE

€ 28.00

25

1247105001
ref: 25

GASKET,ROTERY VALVE INNER SEAT (NAS)

€ 5.50

26

0212206168
ref: 26
02122-06167

SCREW

€ 2.00

27

1251105000
ref: 27

PLATE,CSHAFT OIL GUIDE

€ 6.00

28

2111103001
ref: 28

GEAR,PRIMARY DRIVE

€ 28.00

29

0918020006
ref: 29

SPACER(20X25X10)

€ 5.50

30

0914014002
ref: 30

NUT

€ 4.00

31

0916614008
ref: 31

WASHER

€ 2.50

32

0834131039
ref: 32

KEY

€ 2.00
