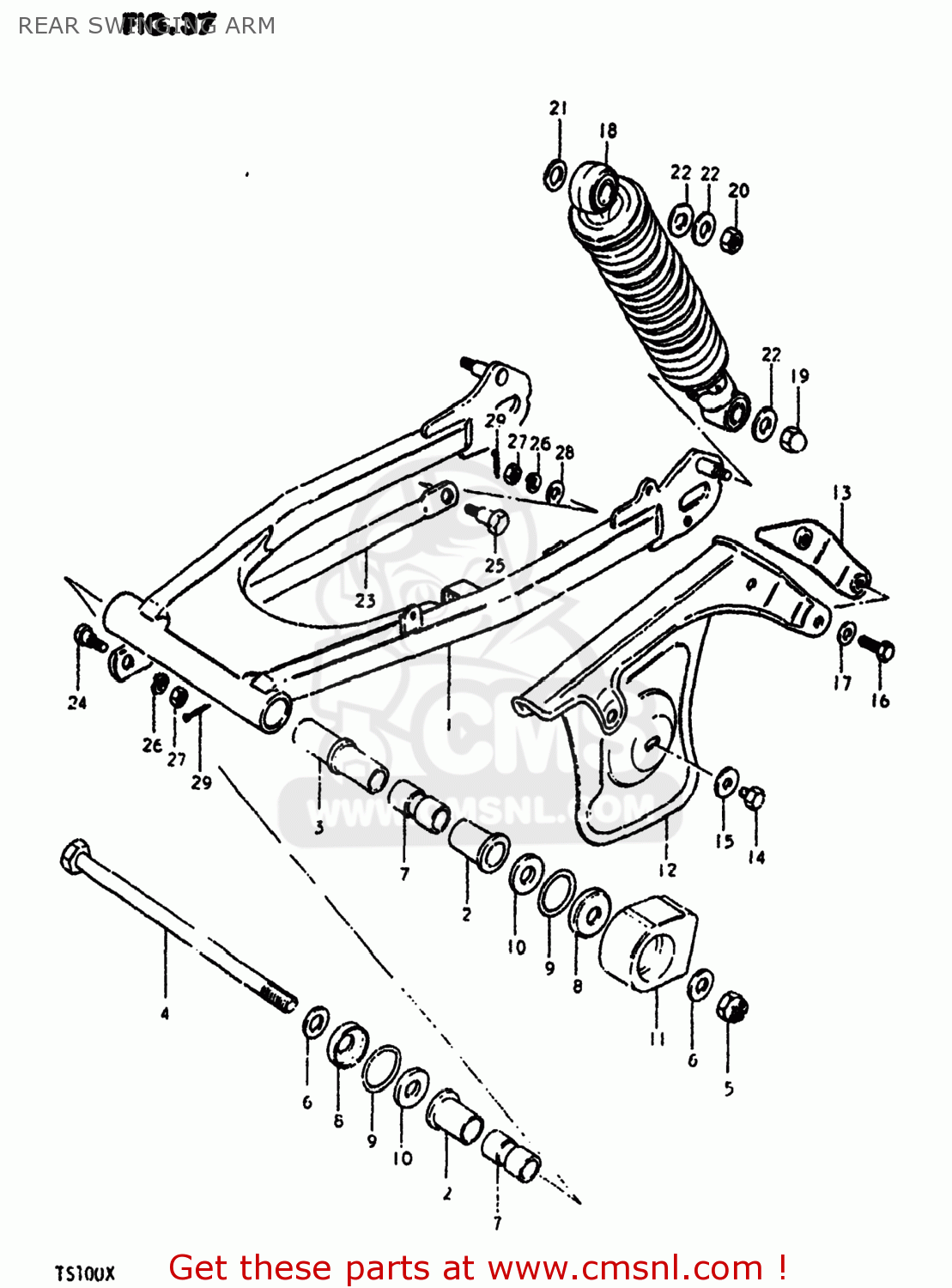

REAR SWINGING ARM

ref

part #

description

quantity

1-1

611004886008C
ref: 1-1
61100-48860-019

SWING ARM ASSEMBLY,REAR

€ 79.00

1-2

6110048852019
ref: 1-2

SWING ARM ASSEMBLY,REAR

€ 208.00

2

0930718002
ref: 2

BUSH

€ 10.50

3

6128029300
ref: 3

SPACER,RR SWGARM PIVOT CTR

€ 9.00

4

6121129301
ref: 4
61211-29302

SHAFT,REAR SWING ARM

€ 11.50

5

0831921128
ref: 5
08319-2112A

NUT 12MM

€ 4.00

6

0832211128
ref: 6
08322-01127

WASHER

€ 2.00

7

6125128000
ref: 7

SPACER,RR SWGARM PIVOT

€ 8.50

8

6126209200
ref: 8

COVER,SWGARM BUSH DUST SEAL

€ 2.50

9

0928024001
ref: 9

O RING(D:2,ID:24.5)

€ 2.00

10

0916012005
ref: 10

WASHER(12.5X24X2.3)

€ 3.00

11

6127348501
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 10.50

12

6131129302019
ref: 12

CASE,CHAIN

€ 94.00

13

6138029300
ref: 13
61380-26500

REINFORCEMENT,CHAIN CASE

€ 8.50

14

0910006011
ref: 14

BOLT(6X8)

€ 2.50

15

0916906010
ref: 15

WASHER

€ 3.00

16

0110706168
ref: 16
01500-06167

BOLT, UPPER

€ 3.00

17

0832221068
ref: 17
08322-01067

WASHER

€ 2.00

18

6210048511
ref: 18
62100-48530

ABSORBER ASSEMBLY,REAR SHOCK

€ 64.50

19

0831311108
ref: 19
08313-10107

NUT, LOWER LH

€ 2.50

20

0831011108
ref: 20
08310-00107

NUT

€ 2.50

21

0832211128
ref: 21
08322-01127

WASHER

€ 2.00

22

0916010001
ref: 22
09160-10093

WASHER

€ 2.00

23-1

643114601008C
ref: 23-1
64311-46000-019

TORQUE LINK,REAR

€ 8.00

23-2

6431146000
ref: 23-2
64311-46000-019

TORQUE LINK,REAR

€ 8.00

24

0911108015
ref: 24

BOLT(8X22)

€ 3.00

25

0911108013
ref: 25

BOLT(8X26.5)

€ 3.00

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0914008008
ref: 27

NUT

€ 1.50

28

0832211088
ref: 28
08322-01087

WASHER

€ 2.00

29

0411120158
ref: 29
04111-2015A

PIN

€ 1.50

all assemblies
