FRONT FORK (TS125K)
TS125 1975 (M) USA (E03)

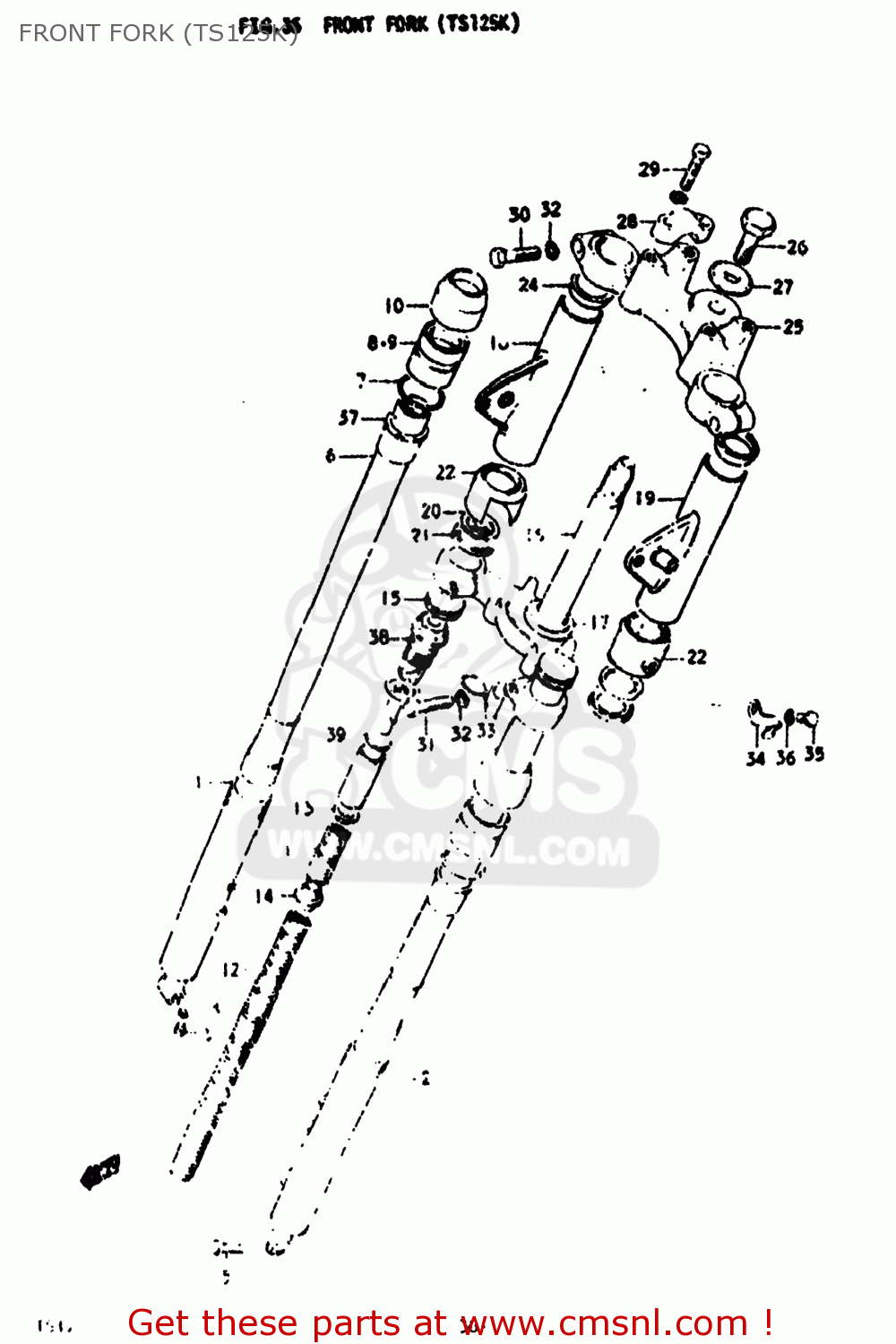

Front fork (ts125k) diagram TS125 1975 (M) USA (E03)
FRONT FORK (TS125K) TS125 1975 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110029620019
ref:
DAMPER SET
€ 0.00
1
5113028600
ref: 1
TUBE,OUTER,RIGHT
€ 59.00
2
5114028600
ref: 2
TUBE,OUTER,LEFT
€ 59.00
3
0211104087
ref: 3
02112-04087
SCREW
€ 1.50
4
5118303010
ref: 4
GASKET,DRAIN,PLUG (NAS)
€ 3.00
5
0112208258
ref: 5
01500-08257
BOLT
€ 2.50
6
5111028010
ref: 6
TUBE,FORK,INNER
€ 135.50
7
5115407010
ref: 7
O RING,OIL SEAL LWR
€ 7.00
8
5115025011
ref: 8
NUT,FORK OUTER TUBE
€ 19.50
9
5115308011
ref: 9
SEAL,OIL
€ 10.50
10
5117325010
ref: 10
SEAL,DUST
€ 10.00
11
5117129010
ref: 11
SPRING
€ 15.00
12
5118429011
ref: 12
SPRING,FRONT FORK
€ 14.50
13
5117228010
ref: 13
GUIDE,SPRING
€ 0.00
14
5119229011
ref: 14
JOINT,SPRING
€ 4.00
15
5118929010
ref: 15
CAP,FRONT FORK
€ 7.50
16
5141028011
ref: 16
51410-36260
STEM,STEERING
€ 72.50
17
5162133001
ref: 17
RACE,STEERING OUTER LWR
€ 10.00
18-1
5153029620
ref: 18-1
51530-29621
BRACKET,HEADLAMP HOUSING
€ 54.00
18-2
5153029621
ref: 18-2
BRACKET,HEADLAMP HOUSING
€ 54.00
19-1
5154029620
ref: 19-1
51540-29621
BRACKET,HEADLAMP,LEFT
€ 75.50
20
5155307110
ref: 20
CUSHION,HEADLAMP BRACKET
€ 1.50
21
5155828010
ref: 21
GUIDE, COVER
€ 7.50
22
5155428010
ref: 22
CUSHION,HEADLAMP BRACKET
€ 0.00
23
5155728010
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 5.50
24
5155125010
ref: 24
SEAT,HEADLAMP BRACKET
€ 0.00
25
5131128012019
ref: 25
HEAD,STEERING STEM
€ 65.50
26
5135120010
ref: 26
51351-29400
BOLT,FORK INNER TUBE
€ 25.00
27
5135622011
ref: 27
WASHER
€ 6.00
28
5621112111019
ref: 28
HOLDER,HANDLEBAR
€ 0.00
29
0122108307
ref: 29
01204-08307
BOLT
€ 2.50
30
5145115113
ref: 30
01104-10388
BOLT,FORK INNER TUBE F
€ 2.50
31
5145128012
ref: 31
BOLT,FR FORK LWR(12X33)
€ 11.50
32
0832121108
ref: 32
08321-01107
LOCK WASHER
€ 2.00
33
5145536010
ref: 33
CLIP
€ 6.50
34
5145330011
ref: 34
CLIP
€ 3.50
35
0211206108
ref: 35
02112-06107
SCREW
€ 1.50
36
0832121068
ref: 36
08321-01067
LOCK WASHER
€ 2.50
37
5115225010
ref: 37
51152-25011
BUSHING,GUIDE
€ 6.00
38
5118029010
ref: 38
CAP
€ 41.50
39
5118629620
ref: 39
SEAT,SPRING
€ 0.00
