CRANKCASE COVER

TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

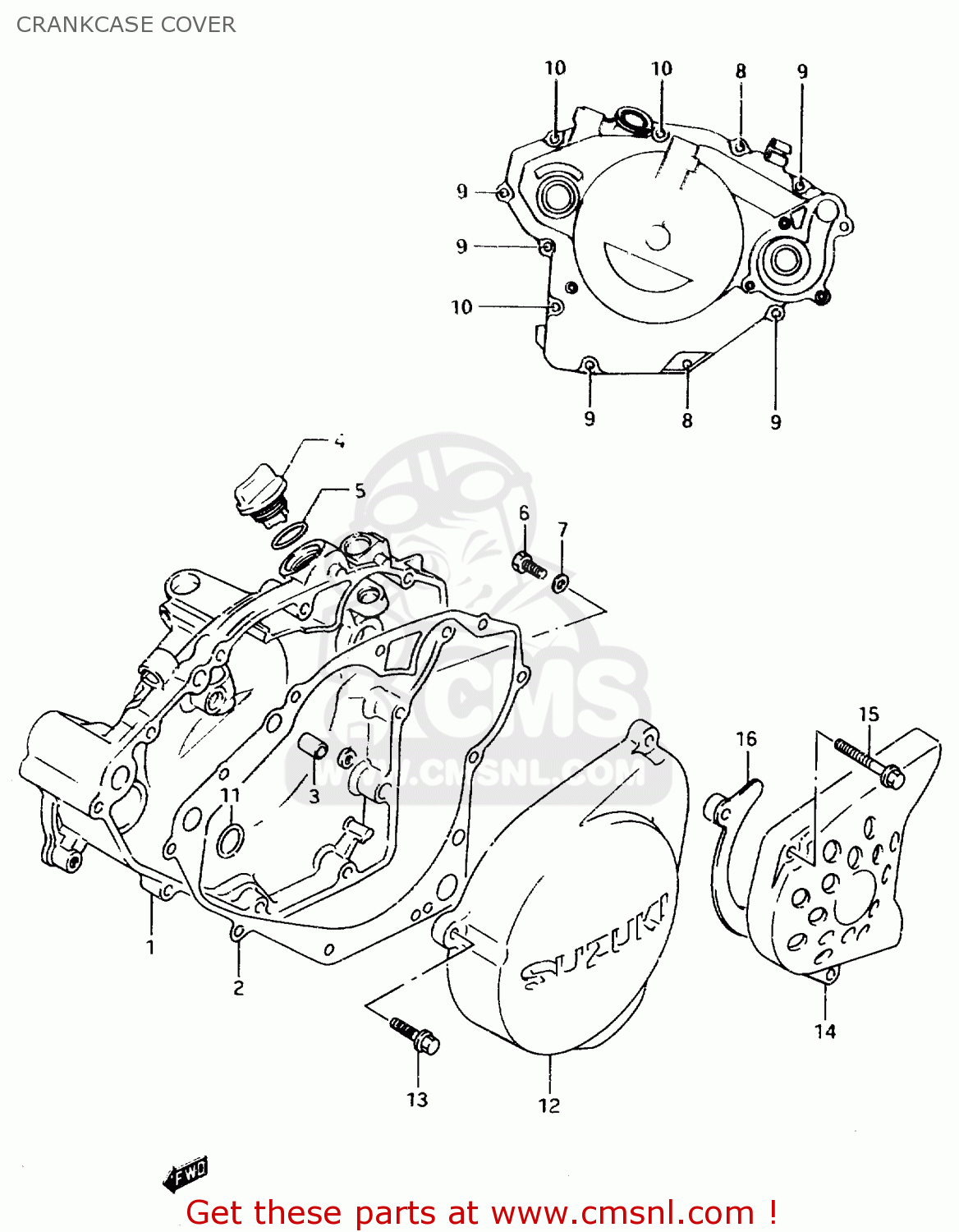

Crankcase cover diagram TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

CRANKCASE COVER TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
CRANKCASE COVER TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
CRANKCASE COVER TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
1134103D02
ref: 1-1
~E.NO.116737
COVER, CLUTCH
1134103D02
€ 196.50
1-2
1134103D03
ref: 1-2
E.NO.116738~
COVER, CLUTCH
€ 196.50
1-3
1134103D12
ref: 1-3
E24
COVER, CLUTCH
€ 0.00
2-1
1148203D00
ref: 2-1
MODEL K/L/M/N
GASKET, CLUTCH COVER (MCA)
1148203D00
€ 34.00
2-2
1148203D10
ref: 2-2
MODEL P/R
GASKET,CLUTCH COVER (NAS)
1148203D10
€ 34.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4
1197120A00
ref: 4
PLUG,OIL FILLE
1197120A00
€ 7.00
5
0928017003
ref: 5
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
6
0912806004
ref: 6
SCREW(6X10)
0912806004
€ 1.50
7
0916806001
ref: 7
GASKET(6.2X11X1) (NAS)
0916806001
€ 1.50
8-1
0154706257
ref: 8-1
MODEL K/L/M/N/P
BOLT
0154706257
€ 2.50
8-2
0154706253
ref: 8-2
MODEL R
SCREW
0154706253
€ 2.50
9-1
0154706307
ref: 9-1
MODEL K/L/M/N/P
BOLT
0154706307
€ 2.50
9-2
0154706303
ref: 9-2
MODEL R
BOLT,G/S SWITC
0154706303
€ 3.00
10-1
0154706407
ref: 10-1
MODEL K/L/M/N/P
BOLT
0154706407
€ 2.50
10-2
0154706403
ref: 10-2
MODEL R
BOLT
0154706403
€ 3.00
11
0928015002
ref: 11
O RING(D:1.9,ID:14.5)
0928015002
€ 3.50
12-1
1135003D00
ref: 12-1
~E.NO.116737
COVER, MAGNETO
€ 54.50
12-2
1135003D01
ref: 12-2
E.NO.116738~
COVER,MAGNETO
€ 54.50
13-1
0154706207
ref: 13-1
MODEL K/L/M/N/P
BOLT
0154706207
€ 2.50
13-2
0154706203
ref: 13-2
MODEL R
SCREW
0154706203
€ 2.50
14-1
1136103D00
ref: 14-1
~E.NO.116737
COVER, ENGINE SPROCKET
€ 29.50
14-2
1136103D01
ref: 14-2
E.NO.116738~
COVER,SPROCKET
1136103D01
€ 29.50
15-1
0154706357
ref: 15-1
MODEL K/L/M/N/P
BOLT
0154706357
€ 2.50
15-2
0154706353
ref: 15-2
MODEL R
BOLT
0154706353
€ 3.00
16-1
2764003D10
ref: 16-1
MODEL K MODEL L E15
PLATE,FR CHAIN GUIDE
2764003D10
€ 11.50
16-2
2764003D00
ref: 16-2
MODEL L/M/N/P/R FOR
PLATE, FRONT CHAIN GUIDE
€ 11.50
