TURNSIGNAL LAMP

TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

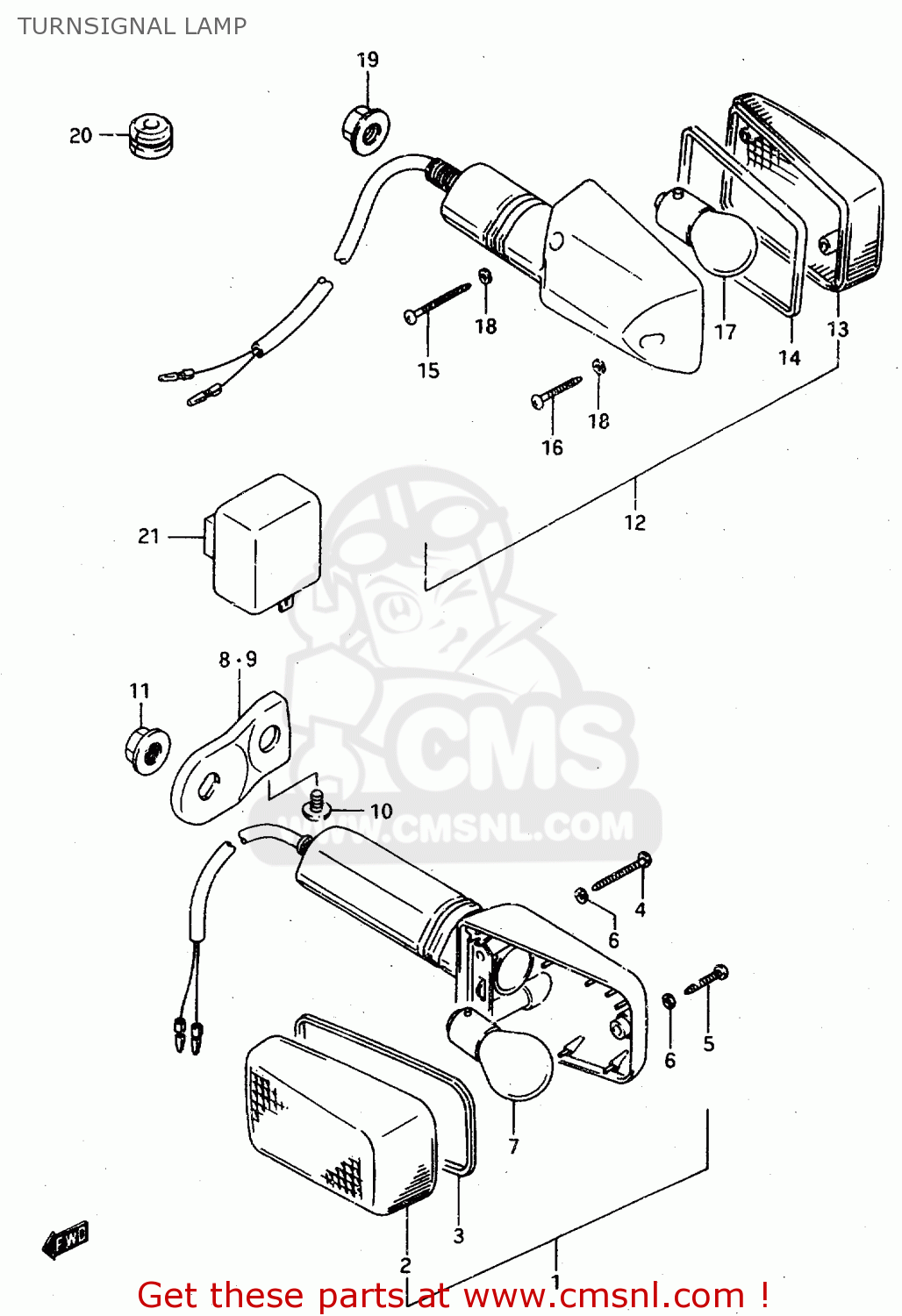

Turnsignal lamp diagram TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)

TURNSIGNAL LAMP TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
TURNSIGNAL LAMP TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
TURNSIGNAL LAMP TS125R 1990 (L) (E02 E04 E15 E17 E18 E21 E24 E34 E53)
prices are in EUR
ref
part #
description
quantity
1-1
3560101D10
ref: 1-1
LAMP ASSY,FR TURN SIGNAL
3560101D10
€ 70.50
1-2
3560101D00
ref: 1-2
E4,E21,E34,E53
LAMP ASSY,FR TURN SIGNAL
3560101D00
€ 81.00
2
3561217C20
ref: 2
LENS
3561217C20
€ 6.50
3
3561327A00
ref: 3
GASKET (NAS)
3561327A00
€ 3.00
4
3562327A00
ref: 4
SCREW(3X30)
3562327A00
€ 1.50
5
3572540511
ref: 5
SCREW
3572540511
€ 1.50
6
3562727A02
ref: 6
GASKET (NAS)
3562727A02
€ 1.50
7
0947112045
ref: 7
BULB(12V21W)
0947112045
€ 5.00
8
3567003D20
ref: 8
BRACKET,FR TURN,R
3567003D20
€ 9.00
9
3568003D20
ref: 9
BRACKET,FR TURN,L
3568003D20
€ 9.00
10-1
0214205084
ref: 10-1
MODEL K/L/M/N/P
SCREW
€ 2.00
10-2
0214205083
ref: 10-2
MODEL R
SCREW
0214205083
€ 2.00
11-1
0831616105
ref: 11-1
MODEL K/L/M/N/P
NUT
€ 2.00
11-2
0831610103
ref: 11-2
MODEL R
NUT
0831610103
€ 2.00
12-1
3560303D20
ref: 12-1
MODEL K/L/M
LAMP ASSY, REAR TURNSIGNAL
€ 88.00
12-2
3560314D10
ref: 12-2
MODEL N/P/R
LAMP ASSY,RR TURNSIGNAL
3560314D10
€ 88.00
12-3
3560303D30
ref: 12-3
MODEL K/L/M E18
LAMP ASSY, REAR TURNSIGNAL
€ 74.00
12-4
3560317C31
ref: 12-4
MODEL N/P/R E18
LAMP ASSEMBLY,REAR TURN SIGNAL
3560317C31
€ 74.00
13
3565217C20
ref: 13
LENS
3565217C20
€ 6.50
14
3561327A00
ref: 14
GASKET (NAS)
3561327A00
€ 3.00
15
3562327A00
ref: 15
SCREW(3X30)
3562327A00
€ 1.50
16
3572540511
ref: 16
SCREW
3572540511
€ 1.50
17
0947112045
ref: 17
BULB(12V21W)
0947112045
€ 5.00
18
3562727A02
ref: 18
GASKET (NAS)
3562727A02
€ 1.50
19-1
0831616105
ref: 19-1
MODEL K/L/M/N/P
NUT
€ 2.00
19-2
0831610103
ref: 19-2
MODEL R
NUT
0831610103
€ 2.00
20
0930805015
ref: 20
GROMMET
0930805015
€ 4.50
21
3861031310
ref: 21
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
up

all assemblies
