FOOTREST

TS185 1971 1972 (R) (J) USA (E03)

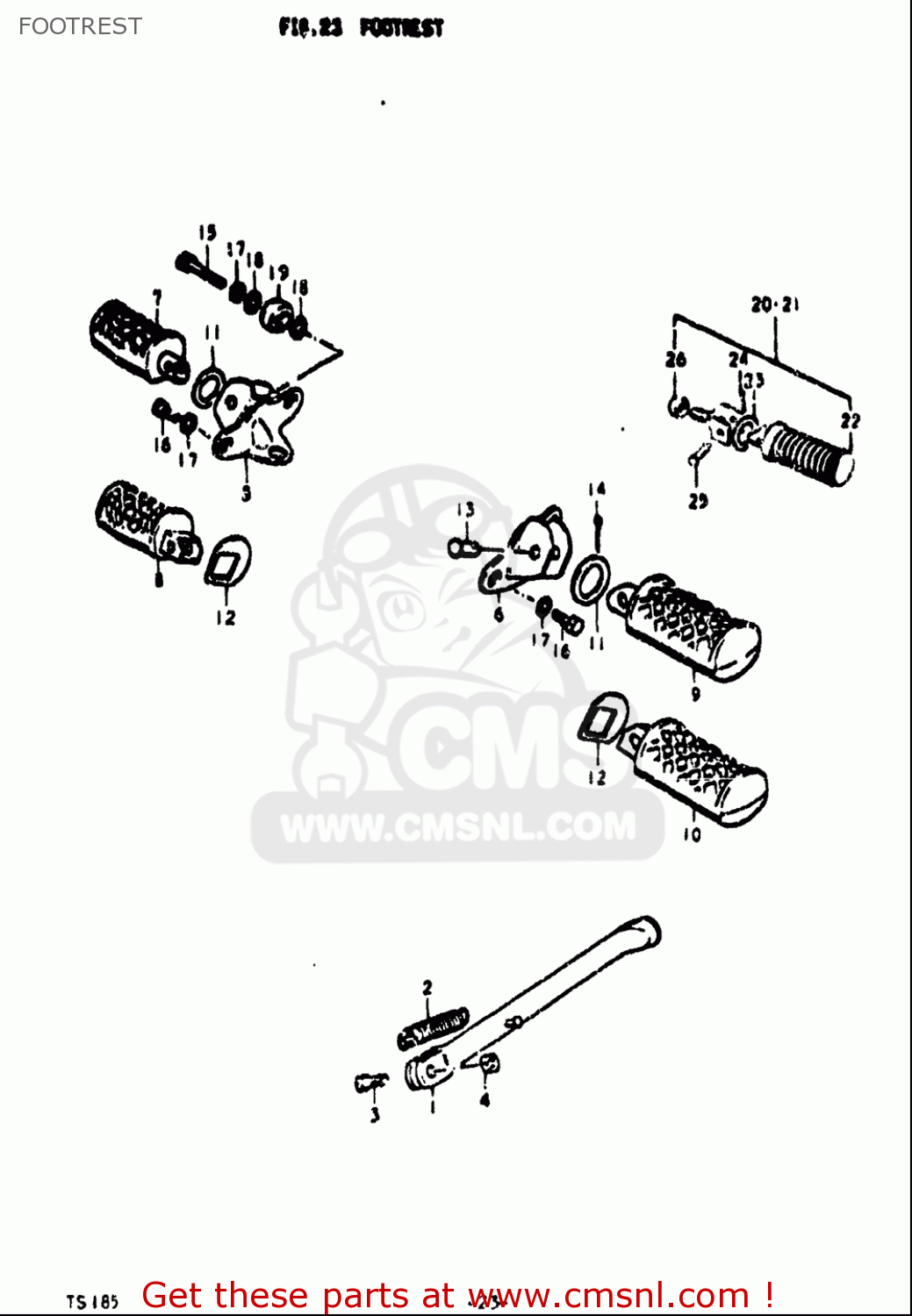

Footrest diagram TS185 1971 1972 (R) (J) USA (E03)

FOOTREST TS185 1971 1972 (R) (J) USA (E03)

FOOTREST TS185 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0944314017
ref: 2

SPRING

€ 6.50

3

0910010067
ref: 3

BOLT(10X30)

€ 3.50

4

0831000107
ref: 4

NUT

€ 2.50

11

0916022033
ref: 11

WASHER(22.5X38X1)

€ 3.50

12

4358125300
ref: 12

WASHER

€ 5.00

13

0920008002
ref: 13

PIN

€ 2.00

14

041112020A
ref: 14

PIN

€ 1.50

15

0150008353
ref: 15

BOLT

€ 3.50

16

0910008143
ref: 16

BOLT(8X14)

€ 2.50

17

0832101087
ref: 17

WASHER,LOCK

€ 2.00

18

0832201087
ref: 18

WASHER

€ 2.00

21

4360003001
ref: 21

FOOTREST ASSEMBLY,REAR

€ 21.00

22

4361203001
ref: 22

RUBBER,PILLION FOOTREST

€ 3.50

23

0916019024
ref: 23

WASHER(19.5X32X2)

€ 2.00

24

041112020A
ref: 24

PIN

€ 1.50

25

0920006010
ref: 25

PIN

€ 2.50

26

0831000107
ref: 26

NUT

€ 2.50
