REAR FENDER

TS185 1971 1972 (R) (J) USA (E03)

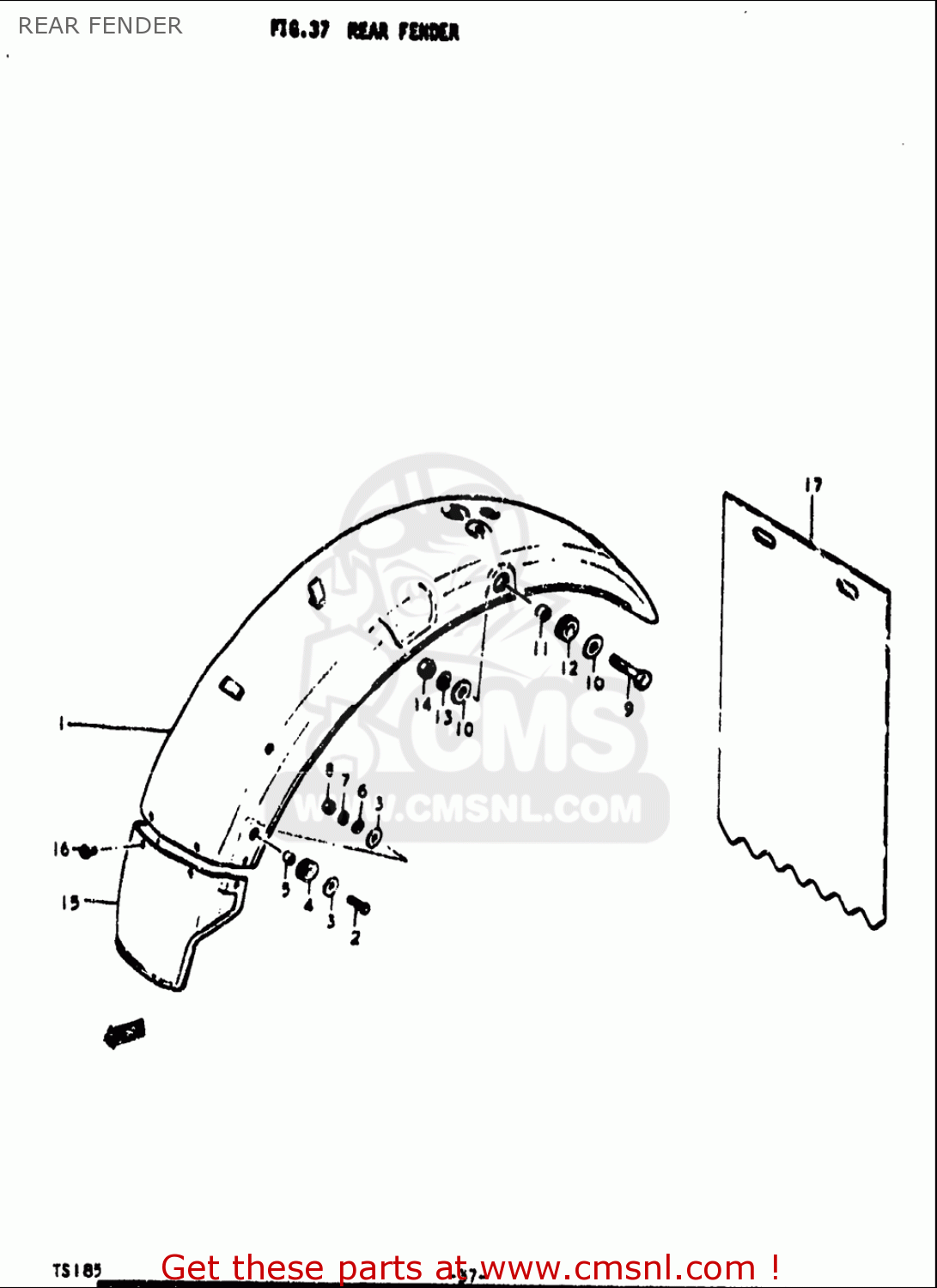

Rear fender diagram TS185 1971 1972 (R) (J) USA (E03)

REAR FENDER TS185 1971 1972 (R) (J) USA (E03)

REAR FENDER TS185 1971 1972 (R) (J) USA (E03)

prices are in EUR

ref

part #

description

quantity

2

0150006207
ref: 2

BOLT

€ 2.00

3

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

4

0932008021
ref: 4

CUSHION

€ 4.00

6

0832201067
ref: 6

WASHER

€ 2.00

7

0832101067
ref: 7

WASHER,LOCK

€ 2.50

8

0831000067
ref: 8

NUT

€ 2.50

9

0150010453
ref: 9

BOLT

€ 2.00

10

0916010126
ref: 10

WASHER(10.5X24X1.6)

€ 2.50

11

0918010026
ref: 11

SPACER

€ 6.00

12

0932012011
ref: 12

CUSHION

€ 3.00

13

0832101107
ref: 13

WASHER,LOCK

€ 2.00

14

0831000107
ref: 14

NUT

€ 2.50

16

0214205107
ref: 16

SCREW

€ 2.50
