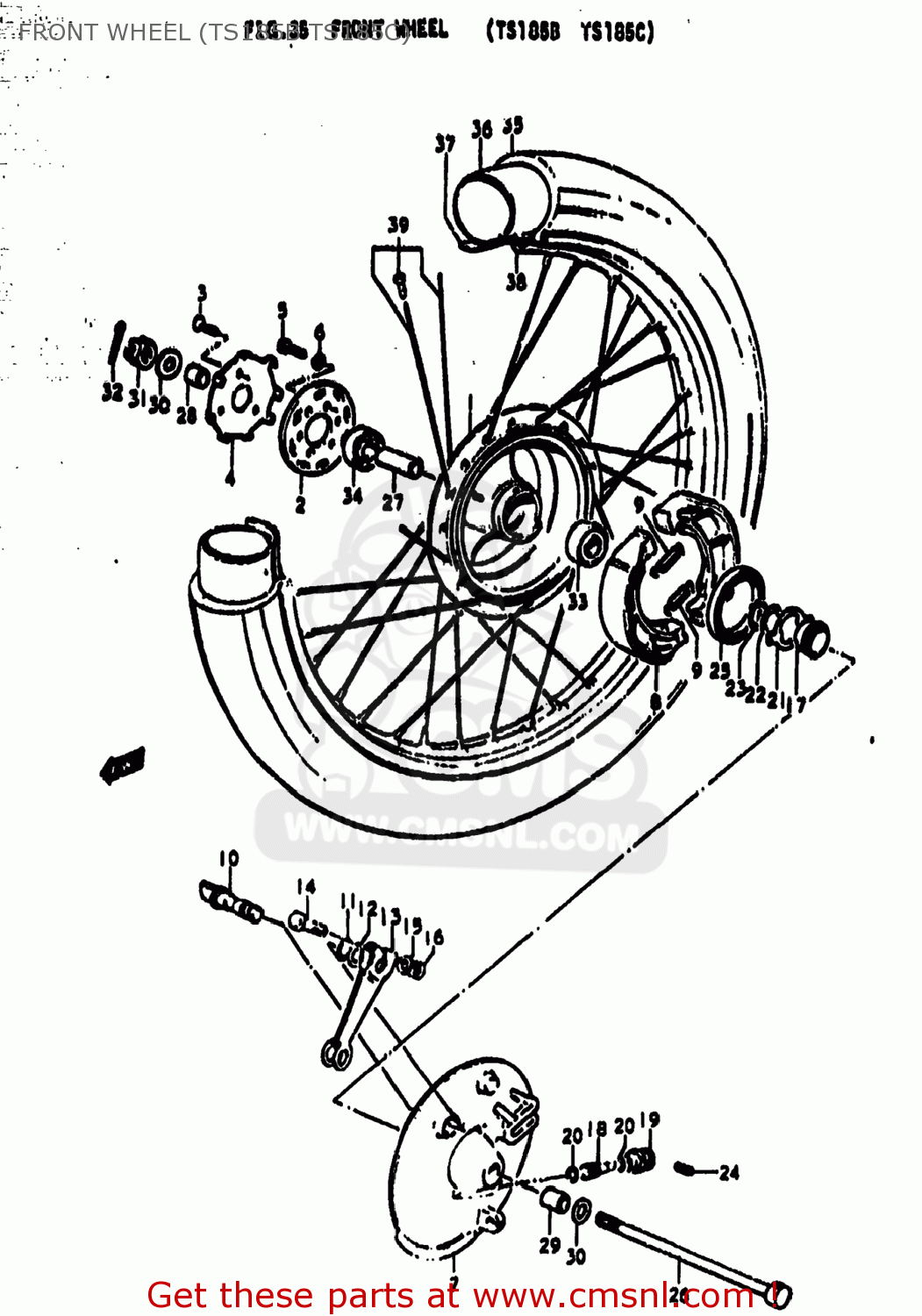

FRONT WHEEL (TS185B TS185C)

ref

part #

description

quantity

1

5411029300
ref: 1

HUB,FR WHEEL

€ 156.50

2

5411230500
ref: 2

FLANGE,FR HUB,R

€ 17.00

3

0212206168
ref: 3
02122-06167

SCREW

€ 2.00

4

5415130500
ref: 4

RETAINER,FR HUB BEARING,R

€ 7.00

5

0110706168
ref: 5
01500-06167

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6
08321-01067

LOCK WASHER

€ 2.50

7

5421029300
ref: 7

PANEL,FRONT HUB

€ 0.00

8

5441007002
ref: 8
54401-07810

SHOE,BRAKE

€ 35.00

9

0944307001
ref: 9
09443-07025

SPRING(L:34)

€ 2.50

10-1

5444129300
ref: 10-1
54441-29305

CAM,FRONT BRAKE

€ 13.00

10-2

5444129301
ref: 10-2
54441-29305

CAM,FRONT BRAKE

€ 13.00

11

0928014003
ref: 11
09280-14011

O-RING (D:2.4 ID:13.8)

€ 3.50

12

0916014001
ref: 12
09160-14055

WASHER (14.5X22X1.6)

€ 2.50

13

5445129300
ref: 13

LEVER,FR BRAKE CAM

€ 11.50

14-1

0910006033
ref: 14-1

BOLT(6X35)

€ 12.50

14-2

0910006078
ref: 14-2

BOLT(6X33)

€ 2.50

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00

16

0831011068
ref: 16
08310-00067

NUT

€ 2.50

17

5461128401
ref: 17
54611-28402

GEAR,SPEEDOMETER

€ 26.00

18

5462128400
ref: 18
54621-28401

PINION,SPEEDOMETER

€ 15.50

19

5463201001
ref: 19

BUSH,METER GEAR OUTER

€ 9.00

20

0916005001
ref: 20
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

21

5466129300
ref: 21

DRIVER,SPEEDOMETER GEAR

€ 4.00

22

0916018002
ref: 22

WASHER(18.5X24X1)

€ 2.00

23

0833111189
ref: 23

CIRCLIP

€ 2.00

24

0913403101
ref: 24
09134-03101-A05

SCREW

€ 1.50

25

0928543001
ref: 25
09283-43004

OIL SEAL (43X58X7)

€ 10.00

26

6471143000
ref: 26
64711-43001

AXLE,REAR

€ 28.50

27

0918012041
ref: 27
09180-12144

SPACER (12.6X19X52)

€ 4.50

28

0918012076
ref: 28
09180-12141

SPACER (12.2X19X18.5)

€ 5.00

29

0918012063
ref: 29

SPACER(12X20X34.5)

€ 4.50

30

0832221128
ref: 30
08322-01127

WASHER

€ 2.00

31

0831431128
ref: 31
08314-3112A

NUT 12MM

€ 2.00

32

0411130308
ref: 32
04111-3030A

COTTER PIN

€ 1.50

33

0814362017
ref: 33

BEARING

€ 11.50

34

0812362017
ref: 34
08133-62017

BEARING, RH

€ 15.00

35

5510028600
ref: 35

TIRE,FRONT

€ 0.00

36

5520016510
ref: 36

TUBE

€ 32.50

37

5526116510
ref: 37
55261-14540

PROTECTOR,WHEEL,INNER

€ 5.00

38-1

5531129300
ref: 38-1
55311-30501

RIM,FRONT WHEEL

€ 193.00

38-2

5531148020
ref: 38-2

RIM,FR WHEEL(1.60X21)

€ 136.00

39-1

5530029820
ref: 39-1
55320-29310

SPOKE SET,FRONT

€ 34.50

39-2

5530029830
ref: 39-2
55320-29300

SPOKE SET,FRONT

€ 37.00
