CRANKCASE
TS185 1978 (C) USA (E03)

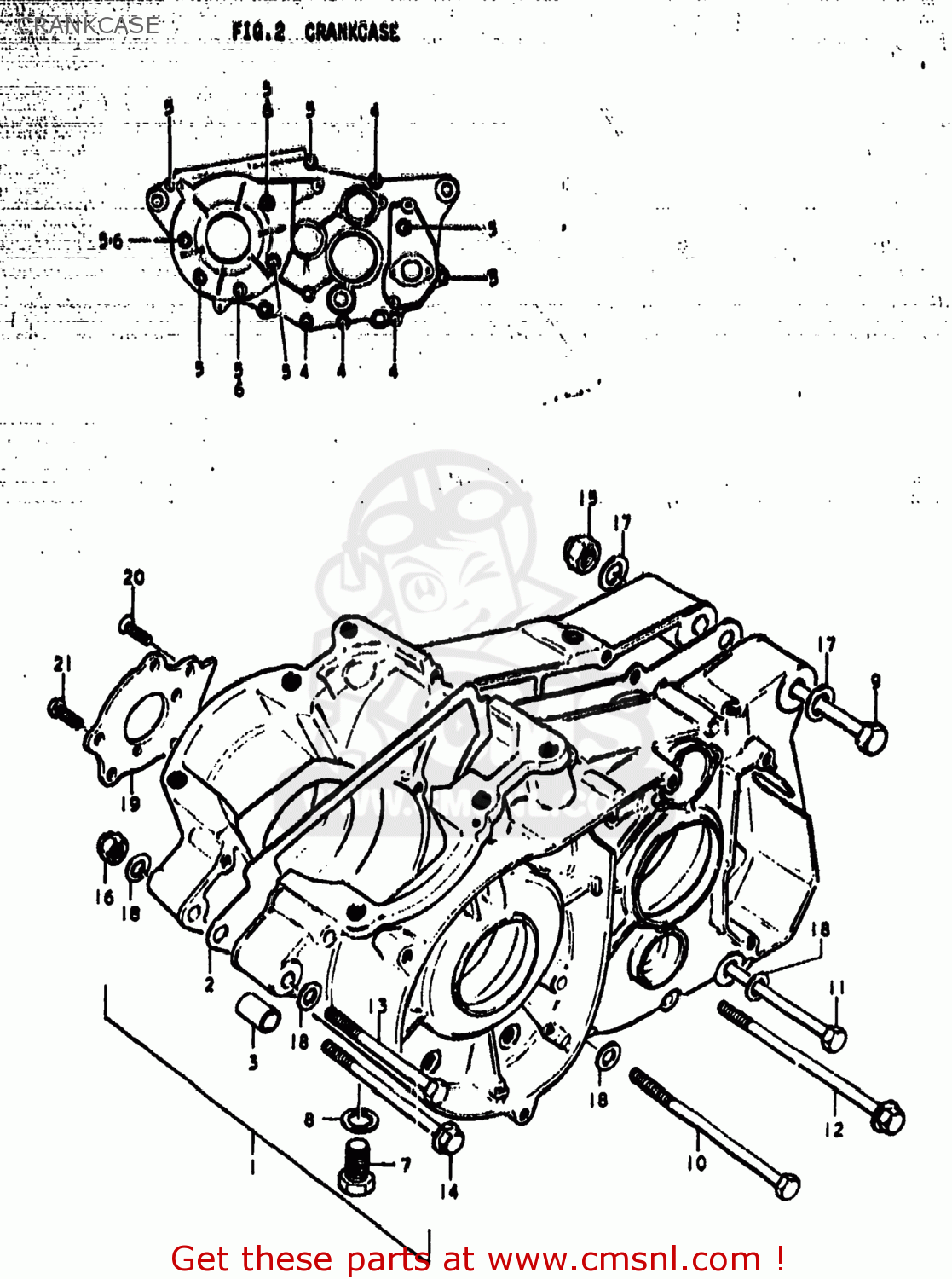

Crankcase diagram TS185 1978 (C) USA (E03)
CRANKCASE TS185 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130029850
ref: 1-1
11300-29852
CRANKCASE SET
€ 513.50
1-2
1130029851
ref: 1-2
11300-29852
CRANKCASE SET
€ 513.50
2
1148129300
ref: 2
11481-29310
GASKET,CRANKCASE (MCA)
€ 19.00
3
0920613001
ref: 3
04211-13189
PIN
€ 2.50
4
0211206658
ref: 4
02112-06657
SCREW 6X65
€ 2.00
5
0211206458
ref: 5
02112-06457
SCREW (6X45)
€ 2.00
6
0832211068
ref: 6
08322-0106B
WASHER 6MM
€ 2.00
7
0924714007
ref: 7
09247-14025
PLUG
€ 3.50
8
0916814004
ref: 8
GASKET(14X19.2X2) (NAS)
€ 2.50
9
0910010051
ref: 9
09100-10274
BOLT
€ 6.50
10
0910008142
ref: 10
BOLT(8X145)
€ 4.00
11
0910008078
ref: 11
BOLT 8X120
€ 4.50
12
0910308026
ref: 12
09103-08109
BOLT
€ 3.50
13
0910008023
ref: 13
BOLT 8X100
€ 2.00
14
0910308009
ref: 14
09103-08070
BOLT
€ 5.00
15
0915910011
ref: 15
NUT
€ 3.00
16
0915908020
ref: 16
NUT
€ 2.50
17
0832211108
ref: 17
08322-01107
WASHER
€ 2.50
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
19
1252128002
ref: 19
PLATE,OIL RESERVOIR
€ 4.00
20
0212206128
ref: 20
02122-06127
SCREW
€ 3.00
21
0211206168
ref: 21
02112-06167
SCREW
€ 2.50
