STAND - FOOTREST
TS185 1978 (C) USA (E03)

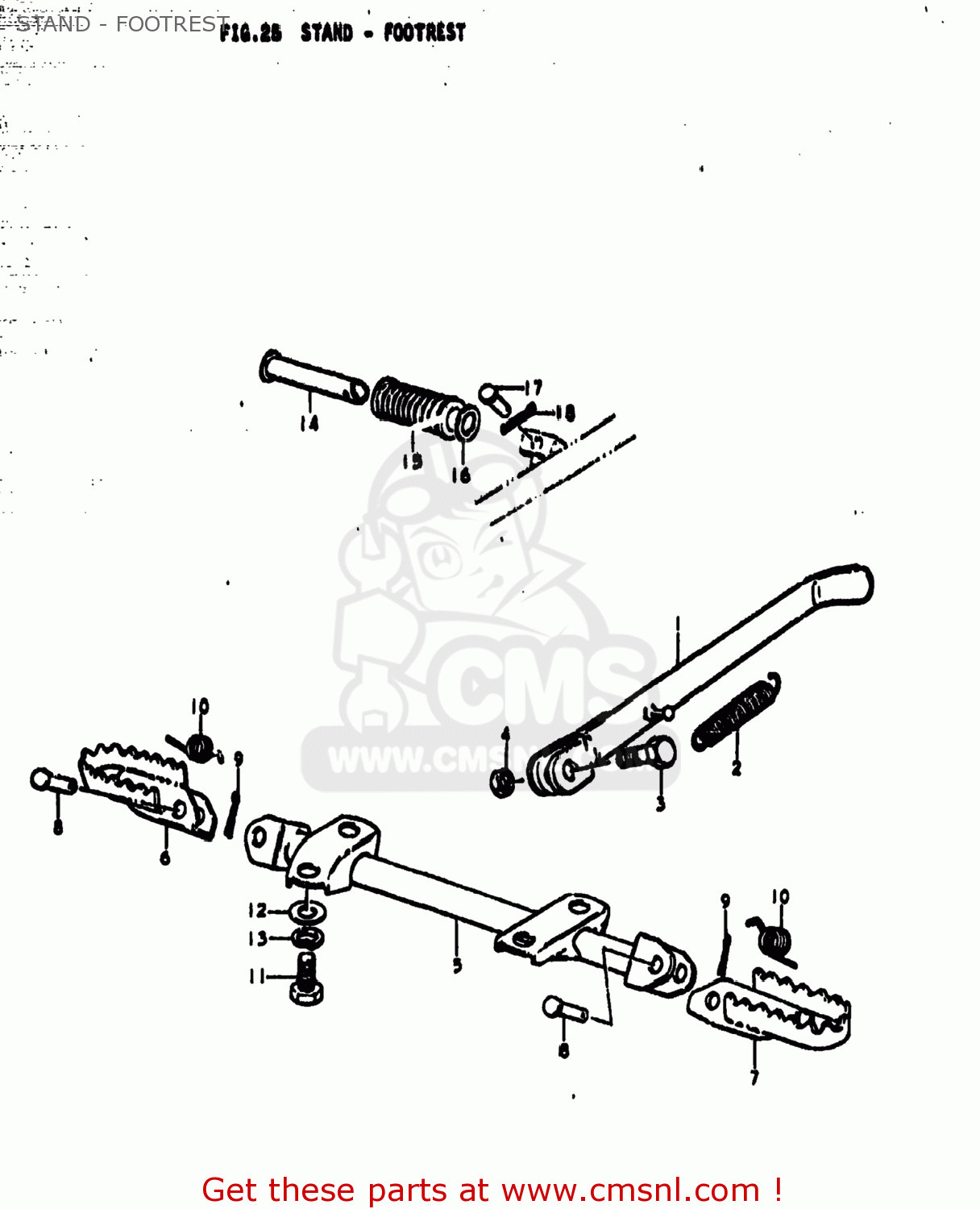

Stand - footrest diagram TS185 1978 (C) USA (E03)
STAND - FOOTREST TS185 1978 (C) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231030500
ref: 1
42310-05280-019
STAND,SIDE
€ 94.50
2
0944314005
ref: 2
09443-14017
SPRING
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
€ 3.50
5-1
4351029300
ref: 5-1
BAR,FRONT FOOTREST
€ 35.00
5-1
4356029300
ref: 5-1
FOOTREST,FR,L
€ 11.50
5-2
0831022108
ref: 5-2
08310-00107
NUT
€ 2.50
5-2
4351029303
ref: 5-2
BAR,FR FOOTREST
€ 24.50
6
4355029300
ref: 6
FOOTREST,FR,R
€ 11.50
8
0920010008
ref: 8
PIN
€ 3.00
9
0411120208
ref: 9
04111-2020A
PIN 20X20
€ 1.50
10
0944815004
ref: 10
SPRING
€ 2.50
11-1
0110710208
ref: 11-1
01500-10203
BOLT 10X20
€ 3.50
11-2
0110708208
ref: 11-2
01500-08207
BOLT
€ 3.00
12-1
0832211108
ref: 12-1
08322-01107
WASHER
€ 2.50
12-2
0832211088
ref: 12-2
08322-01087
WASHER
€ 2.00
13-1
0832131108
ref: 13-1
08321-01107
LOCK WASHER
€ 2.00
13-2
0832131088
ref: 13-2
08321-01087
WASHER,LOCK,8.
€ 2.00
14
4361003001
ref: 14
BAR,FOOTREST RUBBER
€ 5.50
15
4361203001
ref: 15
RUBBER,PILLION FOOTREST
€ 3.50
16
0916019006
ref: 16
09160-19024
WASHER (19.5X32X2)
€ 2.00
17
0920006010
ref: 17
PIN
€ 2.50
18
0411120208
ref: 18
04111-2020A
PIN 20X20
€ 1.50
