AIR CLEANER
TS250 1974 (L) USA (E03)

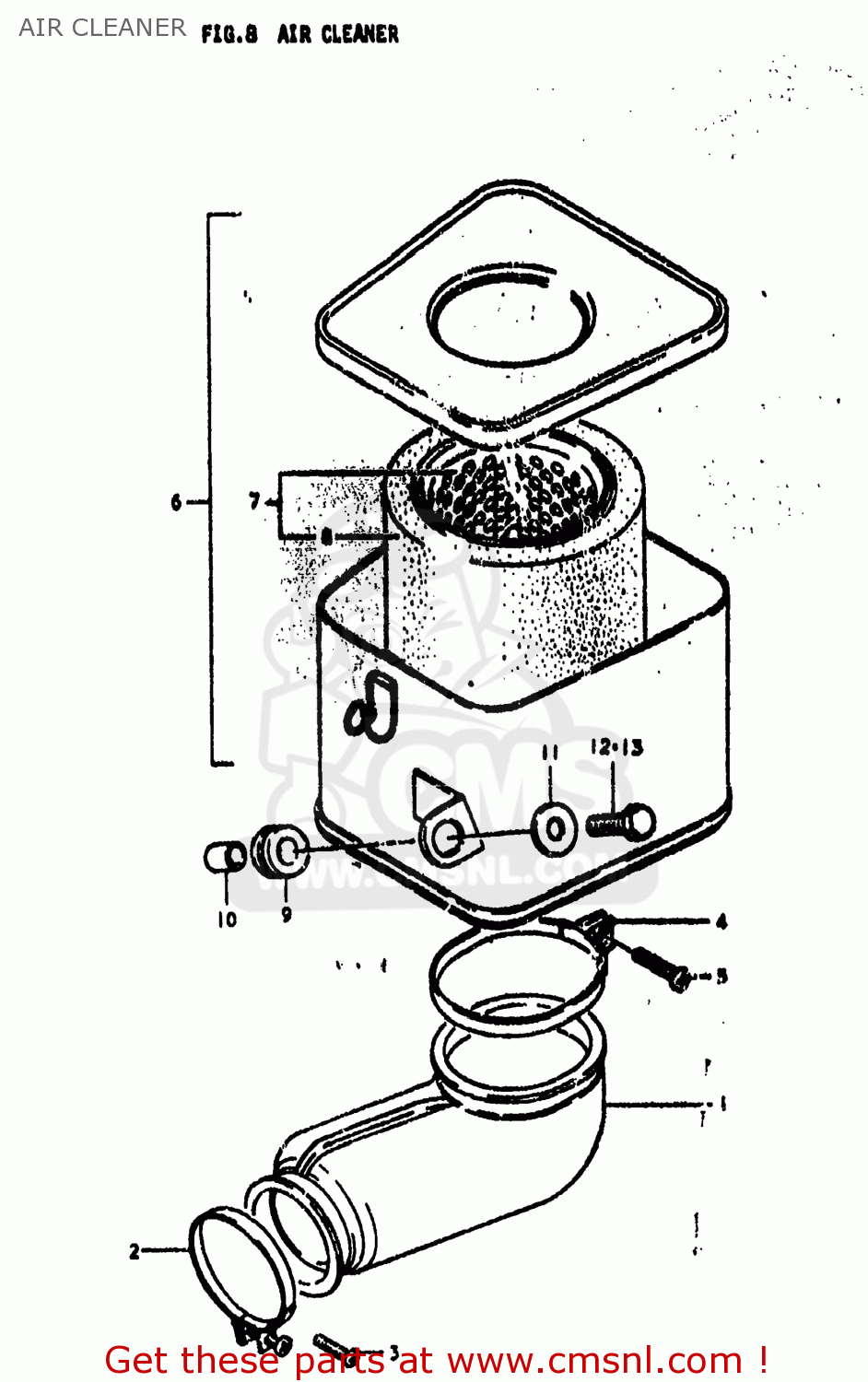

Air cleaner diagram TS250 1974 (L) USA (E03)
AIR CLEANER TS250 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1388130001
ref: 1-1
13881-30002
TUBE,AIR CLEANER OUTLET
€ 29.50
1-1
1388130001
ref: 1-1
13881-30002
TUBE,AIR CLEANER OUTLET
€ 29.50
1-2
1388130002
ref: 1-2
HOSE,CARBURETOR AIR INLET
€ 29.50
2-1
0940250306
ref: 2-1
CLAMP
€ 6.00
2-2
0940252306
ref: 2-2
CLAMP
€ 6.00
3
0211104208
ref: 3
02112-0420A
SCREW
€ 1.00
4
0940200217
ref: 4
CLAMP
€ 4.00
5
0211104208
ref: 5
02112-0420A
SCREW
€ 1.00
6
1370030611
ref: 6
CLEANER ASSEMBLY,AIR
€ 50.00
7
1378030610
ref: 7
FILTER ASSY
€ 46.50
8
1378130611
ref: 8
13780-30610
FILTER
€ 46.50
9
0932008007
ref: 9
09320-08021
CUSHION
€ 4.00
10
0918007005
ref: 10
09180-06259
SPACER (7X9X7)
€ 2.50
11
0916006027
ref: 11
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
12
0111206168
ref: 12
01500-06167
BOLT
€ 3.00
12
0111206168
ref: 12
01500-06167
BOLT
€ 3.00
13
0910006066
ref: 13
BOLT
€ 0.00
