STAND - FOOTREST
TS250 1974 (L) USA (E03)

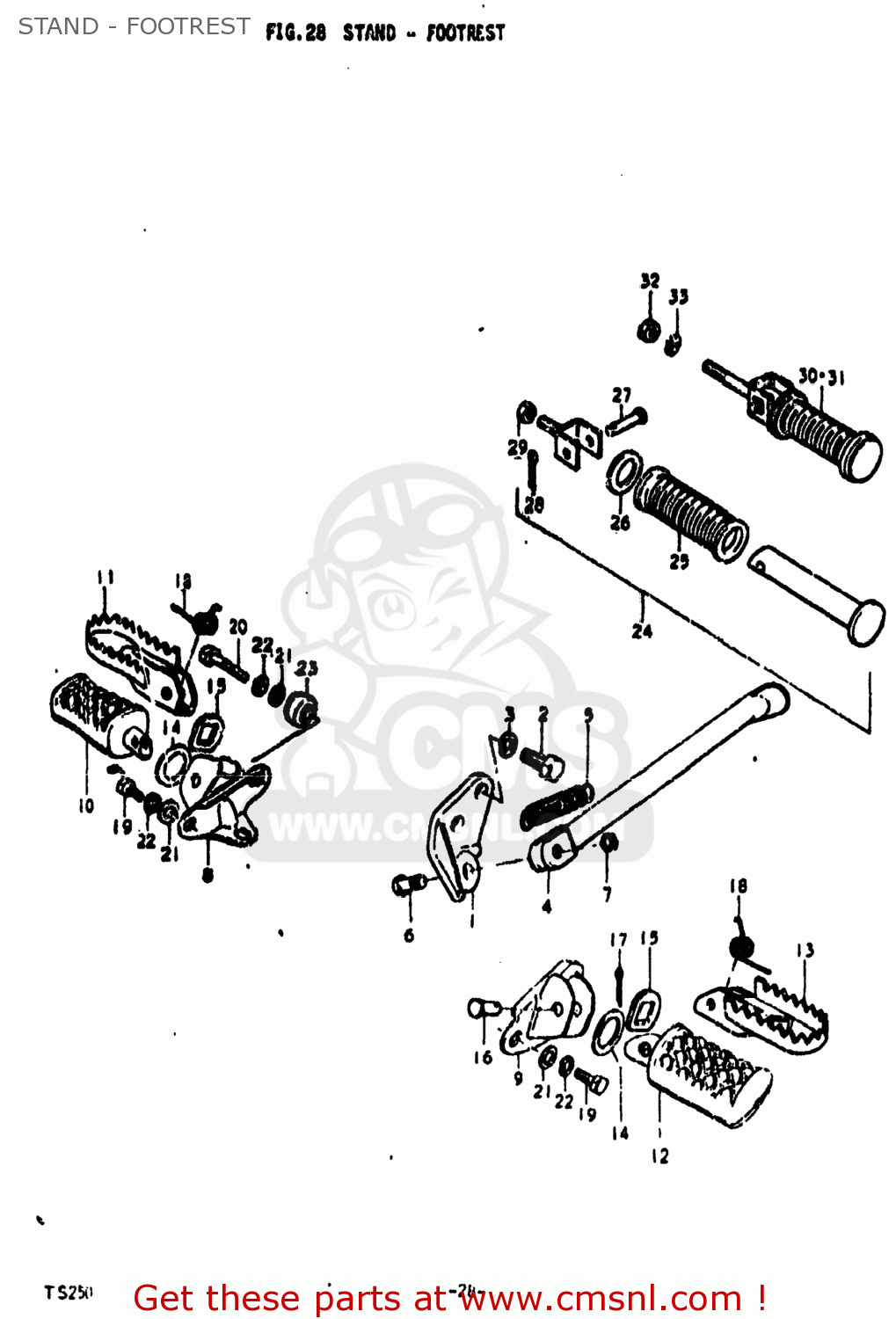

Stand - footrest diagram TS250 1974 (L) USA (E03)
STAND - FOOTREST TS250 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4233030000
ref: 1-1
BRACKET,SIDE STAND
€ 15.00
1-2
4233030300
ref: 1-2
BRACKET,SIDE STAND
€ 12.50
2
0112210258
ref: 2
01500-10257
BOLT 10X25
€ 3.00
3
0832121108
ref: 3
08321-01107
LOCK WASHER
€ 2.00
4-1
4231030000
ref: 4-1
42310-30001
STAND,SIDE
€ 33.50
4-2
4231030001
ref: 4-2
STAND,SIDE
€ 33.50
4-3
4231030300
ref: 4-3
STAND,SIDE
€ 23.50
5
0944314005
ref: 5
09443-14017
SPRING
€ 6.50
6
0910010067
ref: 6
BOLT(10X30)
€ 3.50
7
0831232108
ref: 7
08310-00107
NUT
€ 2.50
8-1
4351030001
ref: 8-1
BAR,FRONT FOOTREST
€ 16.50
8-2
4351030002
ref: 8-2
BAR,FRONT FOOTREST
€ 16.00
9-1
4352030001
ref: 9-1
HOLDER,FRONT FOOTREST
€ 17.50
9-2
4352030002
ref: 9-2
HOLDER,FRONT FOOTREST
€ 13.50
10-1
4355025000
ref: 10-1
43550-25301
RUBBER,FOOTREST,RIGHT
€ 34.50
10-1
4355025000
ref: 10-1
43550-25301
RUBBER,FOOTREST,RIGHT
€ 34.50
10-2
4355025301
ref: 10-2
RUBBER,FOOTREST,RIGHT
€ 34.50
11
4355025302
ref: 11
RUBBER,FOOTREST,RIGHT
€ 13.00
12-1
4356025000
ref: 12-1
43560-25301
RUBBER,FOOTREST,LEFT
€ 34.50
12-1
4356025000
ref: 12-1
43560-25301
RUBBER,FOOTREST,LEFT
€ 34.50
12-2
4356025301
ref: 12-2
RUBBER,FOOTREST,LEFT
€ 34.50
13
4356025302
ref: 13
RUBBER,FOOTREST,LEFT
€ 17.50
14
0916022002
ref: 14
09160-22033
WASHER
€ 3.50
15
4358125300
ref: 15
WASHER
€ 5.00
16
0920008002
ref: 16
PIN
€ 2.00
17
0411120208
ref: 17
04111-2020A
PIN 20X20
€ 1.50
18
0944814012
ref: 18
SPRING
€ 3.00
19
0910008067
ref: 19
09100-08143
BOLT
€ 2.50
20
0112208408
ref: 20
01500-0840A
BOLT 8X40
€ 3.00
21
0832221088
ref: 21
08322-01087
WASHER
€ 2.00
22
0832131088
ref: 22
08321-01087
WASHER,LOCK,8.
€ 2.00
23
4353416400
ref: 23
NO PRODUCT DESCRIPTION AVAILABLE
€ 2.50
24
4360003001
ref: 24
43600-09D00
FOOTREST ASSEMBLY,REAR
€ 21.00
25
4361203001
ref: 25
RUBBER,PILLION FOOTREST
€ 3.50
26
0916019006
ref: 26
09160-19024
WASHER (19.5X32X2)
€ 2.00
27
0920006010
ref: 27
PIN
€ 2.50
28
0411120208
ref: 28
04111-2020A
PIN 20X20
€ 1.50
29
0831232108
ref: 29
08310-00107
NUT
€ 2.50
30
4360036200
ref: 30
FOOTREST ASSY,PILLION
€ 31.00
31
4360028000
ref: 31
FOOTREST ASSEMBLY,REAR
€ 21.00
31
4360028000
ref: 31
FOOTREST ASSEMBLY,REAR
€ 21.00
32
0831231128
ref: 32
09140-12039
NUT
€ 3.00
33
0832121128
ref: 33
08321-01127
WASHER,LOCK 12
€ 2.50
