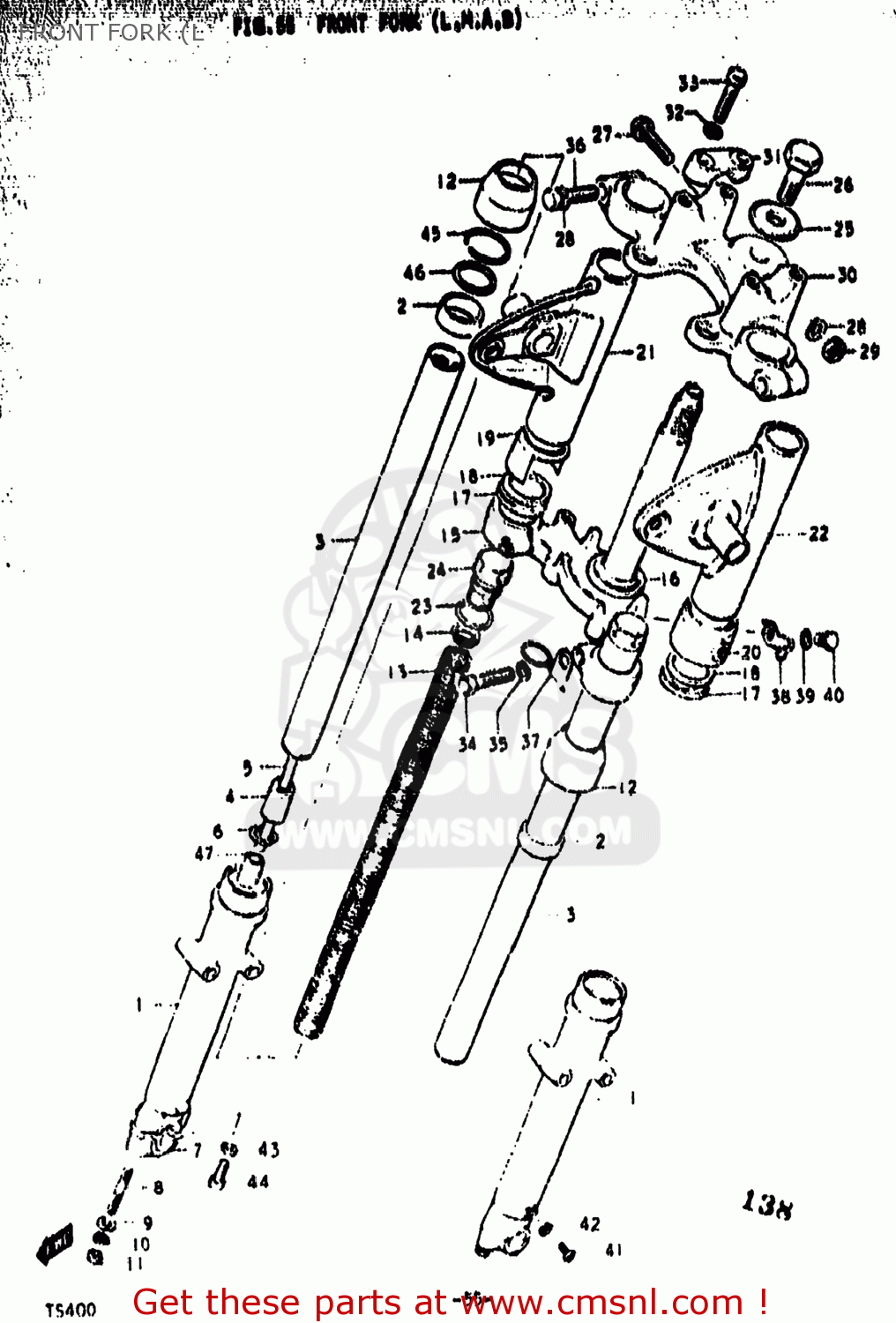

FRONT FORK (L

ref

part #

description

quantity

0-1

5110030310019
ref: 0-1

DAMPER SET

€ 309.00

0-2

5110030310126
ref: 0-2

DAMPER SET

€ 309.00

0-3

5110030311291
ref: 0-3
51106-30311

DAMPER SET

€ 309.00

1

5113030700
ref: 1

TUBE,OUTER,RIGHT

€ 62.00

2

5115316511
ref: 2

SEAL,OIL

€ 10.50

3

5111130310
ref: 3

TUBE,FORK,INNER

€ 166.50

4-1

5111216510
ref: 4-1

PISTON L

€ 4.50

4-2

5111216511
ref: 4-2

PISTON M

€ 4.50

5-1

5114630702
ref: 5-1

CYLINDER,FRONT FORK

€ 73.00

5-2

5114630703
ref: 5-2

CYLINDER,FRONT FORK

€ 15.00

6-1

5111816510
ref: 6-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 1.50

6-2

5111816511
ref: 6-2

SNAP RING

€ 1.50

7

5113216510
ref: 7

HOLDER,AXLE

€ 11.50

8-1

5113731010
ref: 8-1
09108-08142

BOLT,STUD

€ 2.00

8-2

0142108308
ref: 8-2
09108-08142

STUD BOLT

€ 2.00

9

0832221088
ref: 9
08322-01087

WASHER

€ 2.00

10

0832121088
ref: 10
08321-01087

LOCK WASHER

€ 2.00

11

0914008005
ref: 11
09140-08017

NUT (8MM)

€ 1.50

12

5117318510
ref: 12

DUST SEAL,FRONT FORK

€ 4.50

13

5117130601
ref: 13

SPRING,FRONT FORK

€ 20.50

14

5117234110
ref: 14

SEAT,FRONT FORK SPRING

€ 7.50

15

5141030601
ref: 15

STEM,STEERING

€ 89.00

16

5162133001
ref: 16

RACE,STEERING OUTER LWR

€ 10.00

17

5155830010
ref: 17

GUIDE, COVER

€ 2.50

18

5155330010
ref: 18

CUSHION,HEADLAMP BRACKET

€ 0.00

19

5155430011
ref: 19

CUSHION,HEADLAMP BRACKET

€ 5.50

20

5155730011
ref: 20

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

21-1

5153030611
ref: 21-1

BRACKET,HEADLAMP HOUSING

€ 25.50

21-2

5153030612126
ref: 21-2
51500-30830-126

BRACKET,HEADLAMP HOUSING

€ 44.00

21-3

5153030612291
ref: 21-3
51500-30830-126

BRACKET,HEADLAMP HOUSING

€ 44.00

22-1

5154030611
ref: 22-1

BRACKET,HEADLAMP,LEFT

€ 62.50

22-2

5154030612126
ref: 22-2
51500-30830-126

BRACKET,HEADLAMP,LEFT

€ 46.00

22-3

5154030612291
ref: 22-3
51500-30830-126

BRACKET,HEADLAMP,LEFT

€ 44.00

23

5111716310
ref: 23

O RING

€ 4.50

24

5135130010
ref: 24
51351-40210

CAP,FORK INNER TUBE

€ 14.00

25-1

5135622011
ref: 25-1

WASHER

€ 6.00

25-2

5135622012
ref: 25-2

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

26

5135120010
ref: 26
51351-29400

BOLT,FORK INNER TUBE

€ 25.00

27

5145115010
ref: 27

BOLT,FORK INNER TUBE F

€ 4.00

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

29

0831212108
ref: 29
08310-00107

NUT

€ 2.50

30

5131130210019
ref: 30

HEAD,STEERING STEM

€ 112.50

31-1

5621127720019
ref: 31-1

HOLDER, HANDLEBAR L,M,A

€ 0.00

31-2

5621127210019
ref: 31-2
56211-29320-291

HOLDER,HANDLEBAR

€ 12.00

32

0832121088
ref: 32
08321-01087

LOCK WASHER

€ 2.00

33

0122108357
ref: 33
01204-08357

Bolt

€ 3.50

34

5145128012
ref: 34

BOLT,FR FORK LWR(12X33)

€ 11.50

35

0832121128
ref: 35
08321-01127

WASHER,LOCK 12

€ 2.50

36

5145115113
ref: 36
01104-10388

BOLT,FORK INNER TUBE F

€ 2.50

37-1

5145528012
ref: 37-1

GUIDE,CABLE

€ 6.50

37-2

5145536010
ref: 37-2

CLIP

€ 6.50

38

5145330011
ref: 38

CLIP

€ 3.50

39

0832121068
ref: 39
08321-01067

LOCK WASHER

€ 2.50

40

0211206108
ref: 40
02112-06107

SCREW

€ 1.50

41

0211104087
ref: 41
02112-04087

SCREW

€ 1.50

42

5118303010
ref: 42

GASKET,DRAIN,PLUG (NAS)

€ 3.00

43

5114816510
ref: 43

GASKET (NAS)

€ 2.00

44

5114716510
ref: 44

BOLT,FORK CYLINDER(10X25)

€ 3.50

45

5115616510
ref: 45

RING,OIL SEAL STOPPER

€ 3.00

46

5111516510
ref: 46

WASHER, OIL SEAL

€ 0.00

47

5119532111
ref: 47
51195-38010

PIECE,OIL LOCK

€ 16.00

all assemblies
