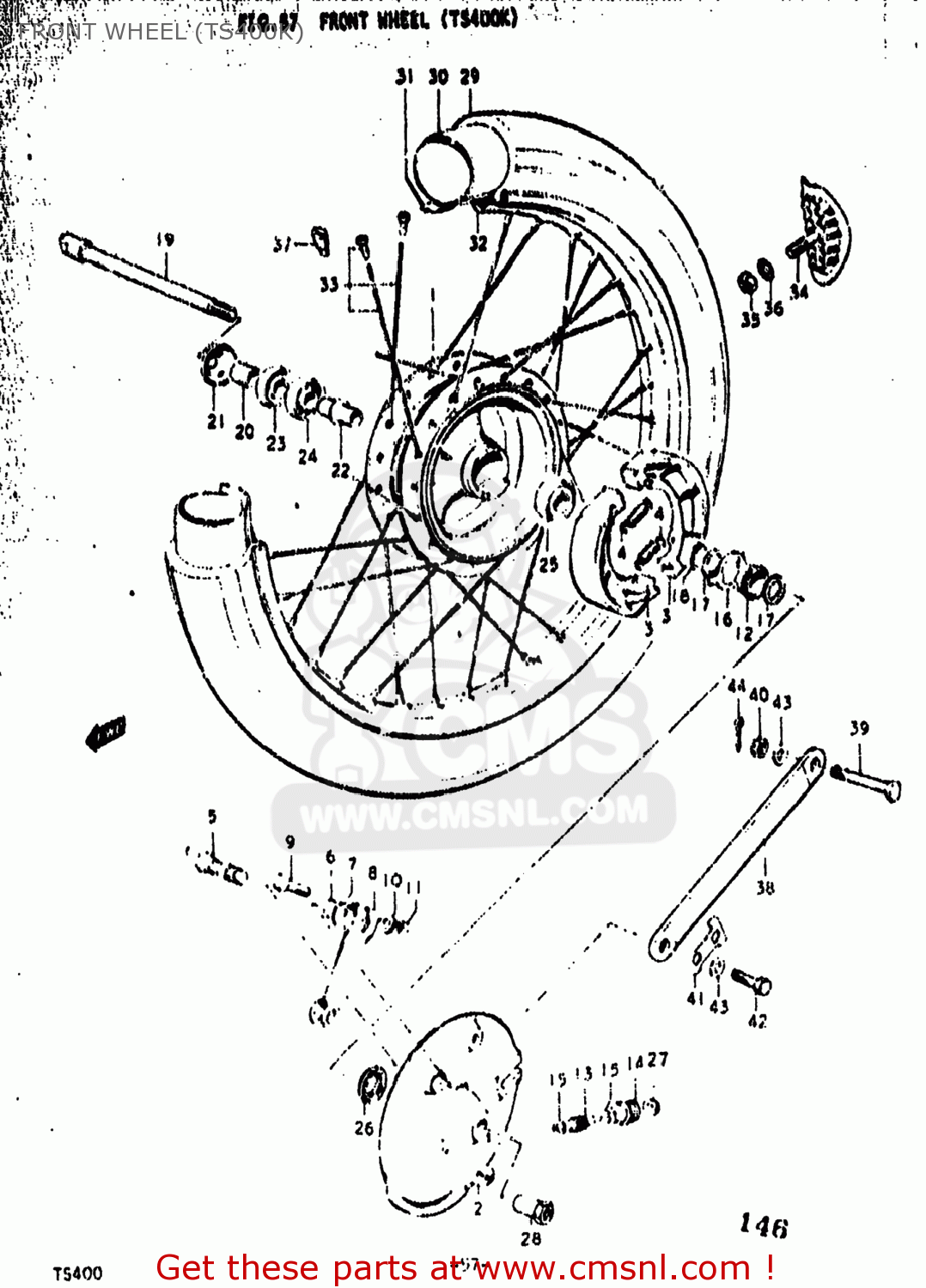

FRONT WHEEL (TS400K)

ref

part #

description

quantity

1

5411030000
ref: 1

HUB,FRONT

€ 166.00

2

5420030823
ref: 2

PANEL,FRONT HUB

€ 52.50

3

5441008002
ref: 3
64400-02830

SHOE,BRAKE

€ 35.00

4

5542030000
ref: 4

SPRING,BRAKE SHOE

€ 3.50

5

5444030000
ref: 5

CAM,FRONT BRAKE

€ 19.00

6

0928015001
ref: 6
09280-15003

O-RING,BOSS

€ 2.00

7

0916015001
ref: 7
09160-15048

WASHER (15X24X1.6)

€ 2.50

8

5445130000
ref: 8
54451-30001

LEVER,FRONT BRAKE CAM

€ 28.00

9

0111206408
ref: 9
01500-0640B

BOLT

€ 2.00

10

0832221068
ref: 10
08322-01067

WASHER

€ 2.00

11

0831111068
ref: 11
08310-00067

NUT

€ 2.50

12

5461115000
ref: 12

GEAR,SPEEDOMETER

€ 27.00

13

5462111000
ref: 13

PINION,SPEEDOMETER

€ 11.50

14

5463211020
ref: 14
54632-49200

BUSHING,SPEEDOMETER PINION

€ 6.50

15

0916005001
ref: 15
09160-05001-A05

WASHER (5.1X9X0.4)

€ 2.00

16

5466011030
ref: 16
54660-11031

DRIVER,SPEEDOMETER GEAR

€ 31.00

17

0916022001
ref: 17

WASHER(22.5X27X1)

€ 2.00

18

0833111229
ref: 18
08331-3122A

CIRCLIP

€ 2.00

19

5471130700
ref: 19

AXLE,FRONT

€ 20.00

20

0918015018
ref: 20

SPACER

€ 6.00

21

5489233000
ref: 21

DUST SEAL,FRONT HUB DRUM

€ 4.00

22

5473008100
ref: 22

SPACER,FRONT HUB BEARING

€ 7.50

23

0928422001
ref: 23

OIL SEAL

€ 4.00

24

0811360020
ref: 24

BEARING

€ 14.00

25

0814362020
ref: 25
08143-62027

BEARING

€ 12.50

26

0928526001
ref: 26
09285-26003

OIL SEAL

€ 22.00

27

0928906001
ref: 27

SEAL,OIL(6X10X3)

€ 4.00

28

5472130700
ref: 28

NUT,FRONT AXLE

€ 6.00

29

5510016411
ref: 29

TIRE,FRONT

€ 0.00

30

5520015010
ref: 30
55200-44610

TUBE,INNER

€ 41.00

31

5526115010
ref: 31

PROTECTOR,WHL INR TUBE

€ 2.50

32

5531130020
ref: 32

RIM,FRONT WHEEL

€ 53.50

33

5530230805
ref: 33

SPOKE SET,FRONT

€ 35.00

34

6527030000
ref: 34
65270-43D00

STOPPER,BEAD

€ 30.50

35

0915908016
ref: 35

NUT

€ 2.00

36

0832221088
ref: 36
08322-01087

WASHER

€ 2.00

37

5541130000
ref: 37

BALANCER,WHEEL (50G)

€ 4.50

38

5431130700
ref: 38

NO PRODUCT DESCRIPTION AVAILABLE

€ 6.00

39

0910108008
ref: 39

BOLT

€ 1.50

40

0831441088
ref: 40
08314-4008B

NUT 8MM

€ 2.50

41

5331216501
ref: 41

MUD FLAP,FRONT FENDER,LEFT

€ 3.50

42

0910008013
ref: 42

BOLT(8X19.5)

€ 0.00

43

0832211084
ref: 43
08322-0108A

WASHER

€ 1.50

44

0411120158
ref: 44
04111-2015A

PIN

€ 1.50
