FRONT WHEEL

TS50 1971 1972 1973 1974 (R) (J) (K) (L) USA (E03)

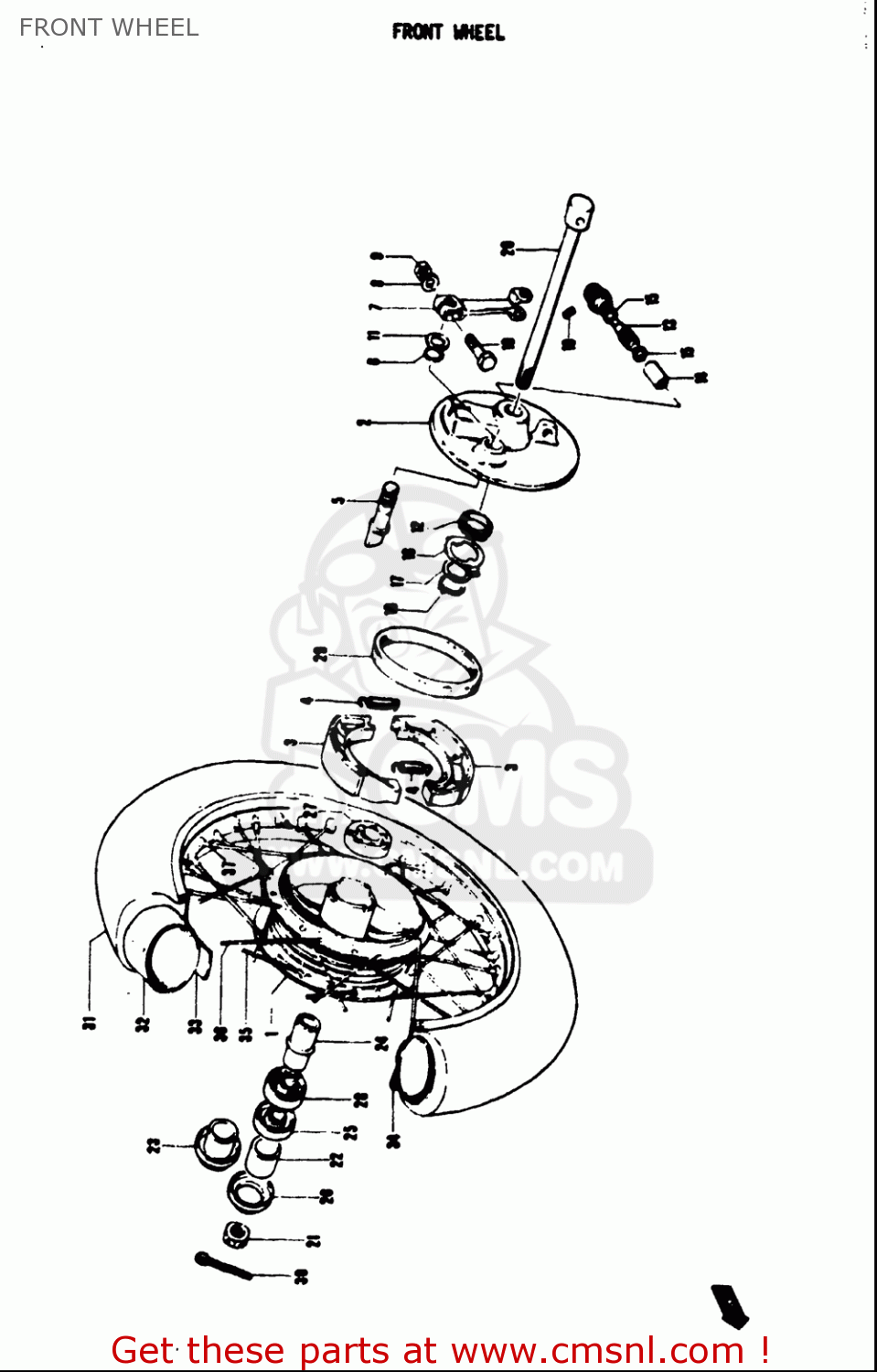

Front wheel diagram TS50 1971 1972 1973 1974 (R) (J) (K) (L) USA (E03)

FRONT WHEEL TS50 1971 1972 1973 1974 (R) (J) (K) (L) USA (E03)
FRONT WHEEL TS50 1971 1972 1973 1974 (R) (J) (K) (L) USA (E03)
FRONT WHEEL TS50 1971 1972 1973 1974 (R) (J) (K) (L) USA (E03)
prices are in EUR
ref
part #
description
quantity
3
5440035860
ref: 3
SHOE & SPRING SET,BRAKE (NAS)
5440035860
€ 39.00
4
0944307025
ref: 4
SPRING(L:35.8)
0944307025
€ 2.50
5-2
5444101002
ref: 5-2
CAM,FR BRAKE
5444101002
€ 19.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
0928012001
€ 2.50
7-2
5445103002
ref: 7-2
LEVER,FR BRAKE CAM
5445103002
€ 10.50
8
0832201067
ref: 8
WASHER
0832201067
€ 2.00
9
0831000067
ref: 9
NUT
0831000067
€ 2.50
10
0910006150
ref: 10
BOLT(6X31)
0910006150
€ 1.50
11
0916012011
ref: 11
WASHER(12.5X20X1)
0916012011
€ 1.50
12
5461103002
ref: 12
GEAR,SPEEDOMETER(NT:24)
5461103002
€ 16.00
15
0916005001A05
ref: 15
WASHER(5.1X9X0.4)
0916005001A05
€ 2.00
17
0916016005
ref: 17
WASHER(16X22X1)
0916016005
€ 1.50
18
0913403101
ref: 18
SCREW
0913403101
€ 1.50
19
0833131156
ref: 19
CIRCLIP
0833131156
€ 2.00
20-1
5471103602
ref: 20-1
AXLE,FR
5471103602
€ 17.50
20-2
5471104711
ref: 20-2
AXLE,FR
5471104711
€ 19.50
21
0831431108
ref: 21
NUT
0831431108
€ 1.50
22
0918010003
ref: 22
SPACER(10X15X12.4)
0918010003
€ 3.50
23
5474026101
ref: 23
SPACER,FR AXLE,R
5474026101
€ 11.00
25
0928415001
ref: 25
SEAL,OIL(15X31X5)
0928415001
€ 4.00
27
0814363007
ref: 27
BEARING
0814363007
€ 12.50
28
0811362000
ref: 28
BEARING
0811362000
€ 7.50
29
0928343004
ref: 29
SEAL,OIL(43X58X7)
0928343004
€ 10.00
30
0411120308
ref: 30
COTTER PIN
€ 1.00
31-1
6510009401
ref: 31-1
TIRE,RR(2.25-17-4PR NR7/B)
6510009401
€ 238.00
33
5526102B40
ref: 33
PROTECTOR,WHL INR TUBE
5526102B40
€ 3.50
34-1
5531101021
ref: 34-1
RIM,WHEEL(17X1.20)
5531101021
€ 77.00
34-2
5531107020
ref: 34-2
RIM,WHEEL(1.40X17)
5531107020
€ 71.00
34-3
5532001012
ref: 34-3
SPOKE SET,FR
5532001012
€ 26.50
