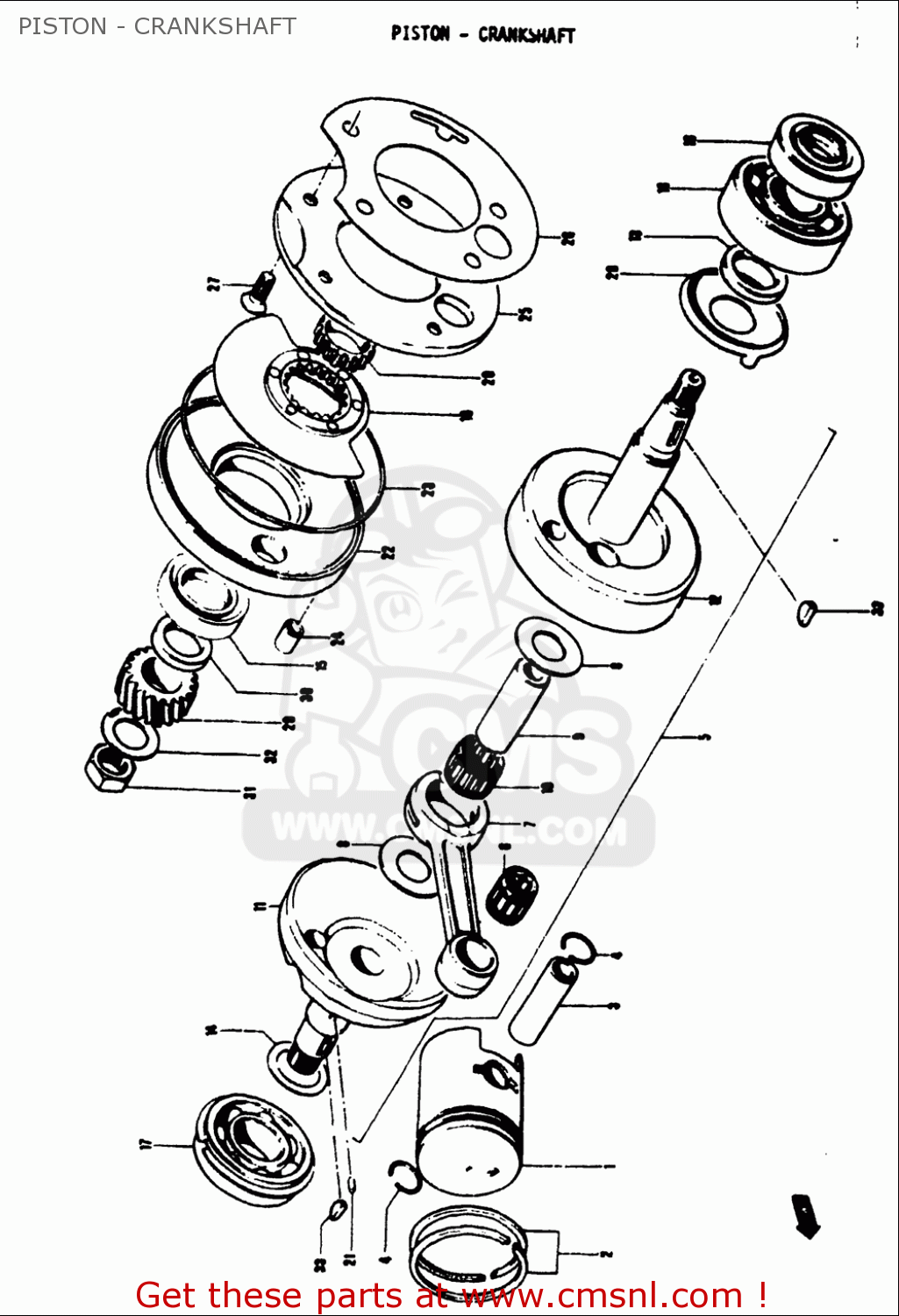

PISTON - CRANKSHAFT - TS50 1971 1972 1973 1974 (R) (J) (K) (L) USA (E03)

ref

part #

description

quantity

1-2

1210092820
ref: 1-2

PISTON & PISTON RING SET

€ 70.50

1-5

1210335810100
ref: 1-5

PISTON SET(OS:1.0)

€ 93.00

1-6

1210335810100
ref: 1-6

PISTON SET(OS:1.0)

€ 93.00

2-1

1214005111
ref: 2-1

RING SET,PISTON

€ 25.00

2-4

1214005100
ref: 2-4

RING SET,PISTON

€ 40.00

3

1215104700
ref: 3

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

6

0926312023
ref: 6

BEARING(12X16X16)

€ 9.00

7

1216104710
ref: 7

ROD,CONNECTING

€ 52.50

8

0916016011
ref: 8

WASHER(16X32X1)

€ 5.00

9

1221106100
ref: 9

PIN,CRANK

€ 17.00

10

0926316034
ref: 10

BEARING(16X22X11.8)

€ 19.00

13

0918020017
ref: 13

SPACER(20X28X4.5)

€ 3.50

14

0918120158
ref: 14

SHIM(20X28X0.5)

€ 2.50

15

0928325009
ref: 15

OIL SEAL (25X44X7)

€ 6.50

16

0928320034
ref: 16

SEAL,OIL(19.6X37X8)

€ 6.00

17

0926220015
ref: 17

BEARING(20X52X15)

€ 30.50

18

0926920006
ref: 18

BEARING(20X47X14)

€ 21.50

20

1242105210
ref: 20

GUIDE,ROTERY VALVE

€ 17.50

21

0422103059
ref: 21

PIN

€ 1.50

22

1245005002
ref: 22

SEAT,CRANK OUTER VALVE

€ 1,665.00

23

0928000002
ref: 23

O RING(D:2.4,ID:100.6)

€ 5.50

24

0421109129
ref: 24

PIN

€ 2.00

25

1246105002
ref: 25

SEAT,INNER DISC VALVE

€ 28.00

26

1247105001
ref: 26

GASKET,ROTERY VALVE INNER SEAT (NAS)

€ 5.50

27

0212206167
ref: 27

SCREW

€ 2.00

28

1251106100
ref: 28

PLATE,CSHAFT OIL GUIDE

€ 8.00

29

2111103001
ref: 29

GEAR,PRIMARY DRIVE

€ 28.00

31

0914014002
ref: 31

NUT

€ 4.00

32

0916614008
ref: 32

WASHER

€ 2.50

33

0834131039
ref: 33

KEY

€ 2.00

PISTON - CRANKSHAFT

all assemblies
