LYLINDER - CRANKCASE
TS50 1974 (L) USA (E03)

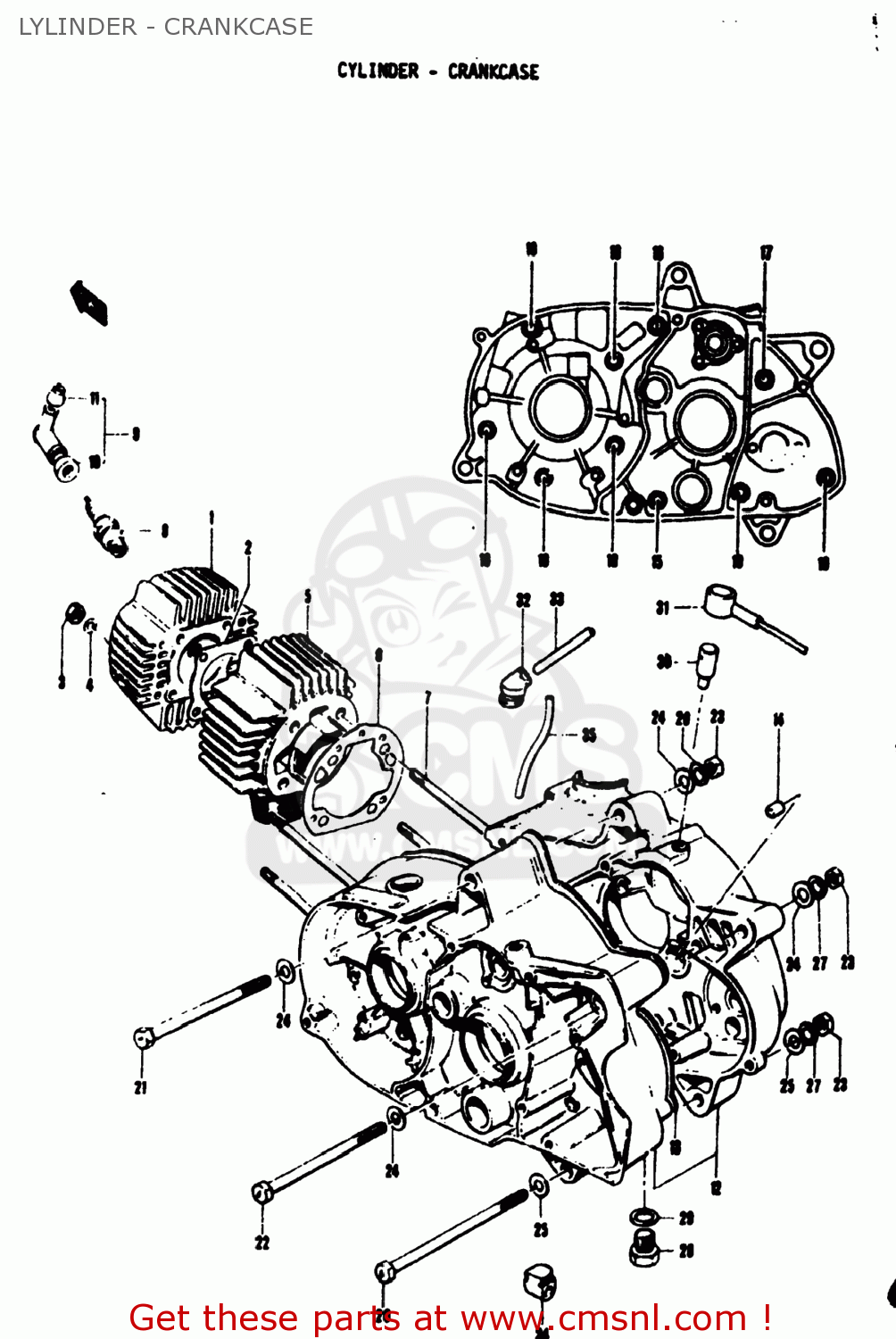

Lylinder - crankcase diagram TS50 1974 (L) USA (E03)
LYLINDER - CRANKCASE TS50 1974 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1111126000
ref: 1
HEAD,CYLINDER
€ 65.50
2
1114114000
ref: 2
11141-06110
GASKET,CYLINDER HEAD (NAS)
€ 4.50
3
0831111068
ref: 3
08310-00067
NUT
€ 2.50
4
0832221068
ref: 4
08322-01067
WASHER
€ 2.00
5
1121126000
ref: 5
CYLINDER
€ 227.00
6
1124105001
ref: 6
11241-19310
GASKET,CYLINDER (MCA)
€ 3.50
7
0910806026
ref: 7
BOLT,STUD
€ 2.50
8-1
0948200003
ref: 8-1
09482-00082
SPARK PLUG
€ 2.00
8-1
0948200003
ref: 8-1
09482-00082
SPARK PLUG
€ 2.00
8-2
0948200050
ref: 8-2
09482-00082
SPARK PLUG
€ 3.50
8-2
0948200050
ref: 8-2
09482-00082
SPARK PLUG
€ 3.50
8-3
0948200057
ref: 8-3
09482-00198
SPARK PLUG
€ 3.50
8-4
0948200052
ref: 8-4
09482-00082
SPARK PLUG
€ 9.00
9
3350310801
ref: 9
CAP,SPARK PLUG
€ 29.50
10
3354122000
ref: 10
SEAL,SPARK PLUG
€ 5.00
11
3354298000
ref: 11
33542-38B00
SEAL,SPARK PLU
€ 4.50
12
1130226801
ref: 12
CRANKCASE SET
€ 172.00
13
1148105000
ref: 13
11481-05010
GASKET,CRANKCASE (MCA)
€ 12.00
14
0421109129
ref: 14
PIN
€ 2.00
15
0211206657
ref: 15
SCREW
€ 2.00
16
0211206458
ref: 16
02112-06457
SCREW (6X45)
€ 2.00
17
0211206408
ref: 17
02112-06407
SCREW
€ 2.00
18
0211206358
ref: 18
02112-06357
SCREW (6X35)
€ 2.50
19
0211206307
ref: 19
SCREW
€ 2.50
20
0910008026
ref: 20
BOLT 8X110
€ 2.00
21
0910008024
ref: 21
09100-08228
BOLT 8X105
€ 4.00
22
0910008023
ref: 22
BOLT 8X100
€ 2.00
23
0831211088
ref: 23
08310-00087
NUT
€ 2.00
24
0832211088
ref: 24
08322-01087
WASHER
€ 2.00
25
0832221088
ref: 25
08322-01087
WASHER
€ 2.00
26
0832131088
ref: 26
08321-01087
WASHER,LOCK,8.
€ 2.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0924714001
ref: 28
09247-14002
PLUG
€ 5.00
29
0916814004
ref: 29
GASKET(14X19.2X2) (NAS)
€ 2.50
30
2482109000
ref: 30
24821-09001
PLUG,TRANSMISSION BREATHER
€ 5.50
31
2482226000
ref: 31
24822-20000
PLUG,BREATHER
€ 19.00
32
0930907008
ref: 32
GROMMET
€ 2.00
33
0934305018
ref: 33
09343-05137
HOSE
€ 28.50
34
0930907009
ref: 34
GROMMET
€ 6.00
35
0934305111
ref: 35
HOSE
€ 13.00
