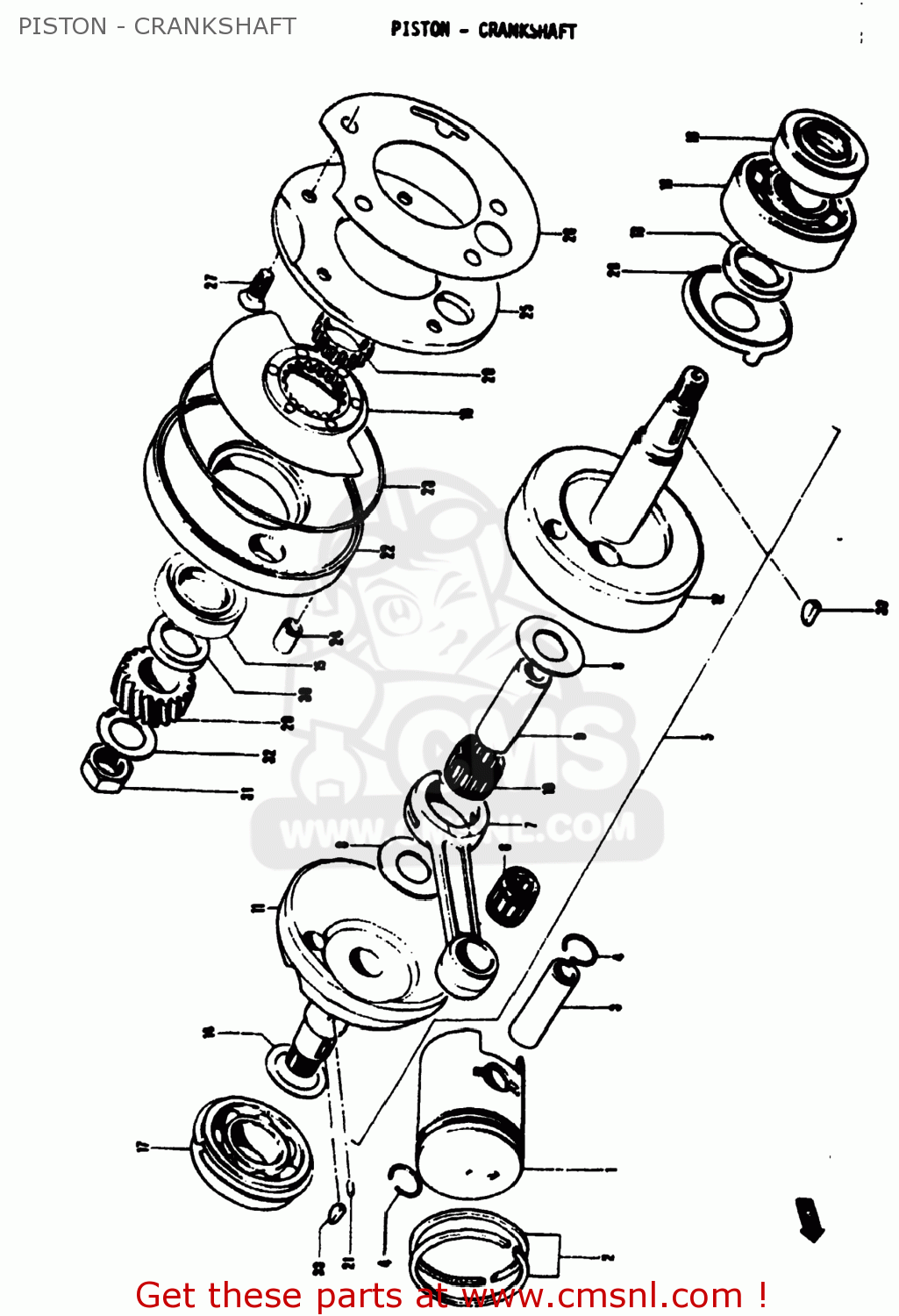

PISTON - CRANKSHAFT - TS50 1974 (L) USA (E03)

ref

part #

description

quantity

1-1

1211005101
ref: 1-1

PISTON

€ 70.50

1-2

1211005102
ref: 1-2
12100-92820

PISTON

€ 70.50

1-3

1211005750
ref: 1-3

PISTON

€ 0.00

1-3

1211005750
ref: 1-3

PISTON

€ 0.00

1-4

1211005751
ref: 1-4

PISTON

€ 73.00

1-5

1211005760
ref: 1-5
12103-35810-100

PISTON

€ 93.00

1-5

1211005760
ref: 1-5
12103-35810-100

PISTON

€ 93.00

1-6

1211005761
ref: 1-6
12103-35810-100

PISTON

€ 93.00

1-6

1211005761
ref: 1-6
12103-35810-100

PISTON

€ 93.00

2-1

1214005111
ref: 2-1

RING SET,PISTON

€ 25.00

2-2

1214005751
ref: 2-2
12140-05111-050

RING SET,PISTON

€ 10.00

2-3

1214005761
ref: 2-3
12140-05111-100

RING SET,PISTON

€ 14.50

2-4

1214005110
ref: 2-4
12140-05100

RING SET,PISTON

€ 40.00

2-5

1214005750
ref: 2-5
12140-05100-050

RING SET,PISTON

€ 26.00

2-6

1214005760
ref: 2-6
12140-05100-100

RING SET,PISTON

€ 21.00

3

1215102000
ref: 3
12151-04700

PIN,PISTON

€ 9.00

4

0938112001
ref: 4

RING,SNAP

€ 1.50

5-1

1200006822
ref: 5-1

CRANKSHAFT SET

€ 333.00

5-2

1220035860
ref: 5-2

CRANKSHAFT ASSEMBLY

€ 333.00

6

0926312003
ref: 6
09263-12023

BEARING

€ 9.00

7

1216113100
ref: 7
12161-04710

CONNECTING ROD

€ 52.50

8

0916016011
ref: 8

WASHER(16X32X1)

€ 5.00

9

1221106100
ref: 9

PIN,CRANK

€ 17.00

10

0926316002
ref: 10
09263-16034

BEARING

€ 19.00

11-1

1222106100
ref: 11-1

CRANKSHAFT

€ 73.50

11-2

1222106101
ref: 11-2

CRANKSHAFT

€ 73.50

12

1226106100
ref: 12

CRANKSHAFT,LEFT

€ 55.50

13

0918020017
ref: 13

SPACER(20X28X4.5)

€ 3.50

14

0822120285
ref: 14
09181-20158

THRUST WASHER

€ 2.50

15

0928325009
ref: 15
09283-25107

OIL SEAL (25X44X7)

€ 6.50

16

0928320011
ref: 16
09283-20034

OIL SEAL

€ 6.00

17

0926220015
ref: 17

BEARING(20X52X15)

€ 30.50

18

0926920006
ref: 18

BEARING(20X47X14)

€ 21.50

19

1241022200
ref: 19

PLATE,DISC VALVE

€ 32.50

20

1242105210
ref: 20

GUIDE,ROTERY VALVE

€ 17.50

21

0621103052
ref: 21
04221-03059

PIN 3X5

€ 1.50

22

1245026000
ref: 22
12450-05002

SEAT,CRANKCASE OUTER VALVE

€ 1,665.00

23

0928000002
ref: 23

O RING(D:2.4,ID:100.6)

€ 5.50

24

0421109129
ref: 24

PIN

€ 2.00

25

1246005001
ref: 25
12461-05002

SEAT,INNER VALVE

€ 28.00

26

1247105001
ref: 26

GASKET,ROTERY VALVE INNER SEAT (NAS)

€ 5.50

27

0212206168
ref: 27
02122-06167

SCREW

€ 2.00

28

1251106100
ref: 28

PLATE,CSHAFT OIL GUIDE

€ 8.00

29

2111103001
ref: 29

GEAR,PRIMARY DRIVE

€ 28.00

30

0918020006
ref: 30

SPACER(20X25X10)

€ 5.50

31

0914014002
ref: 31

NUT

€ 4.00

32

0916614008
ref: 32

WASHER

€ 2.50

33

0834131039
ref: 33

KEY

€ 2.00

PISTON - CRANKSHAFT

all assemblies
