prices are in EUR
ref
part #
description
quantity
0

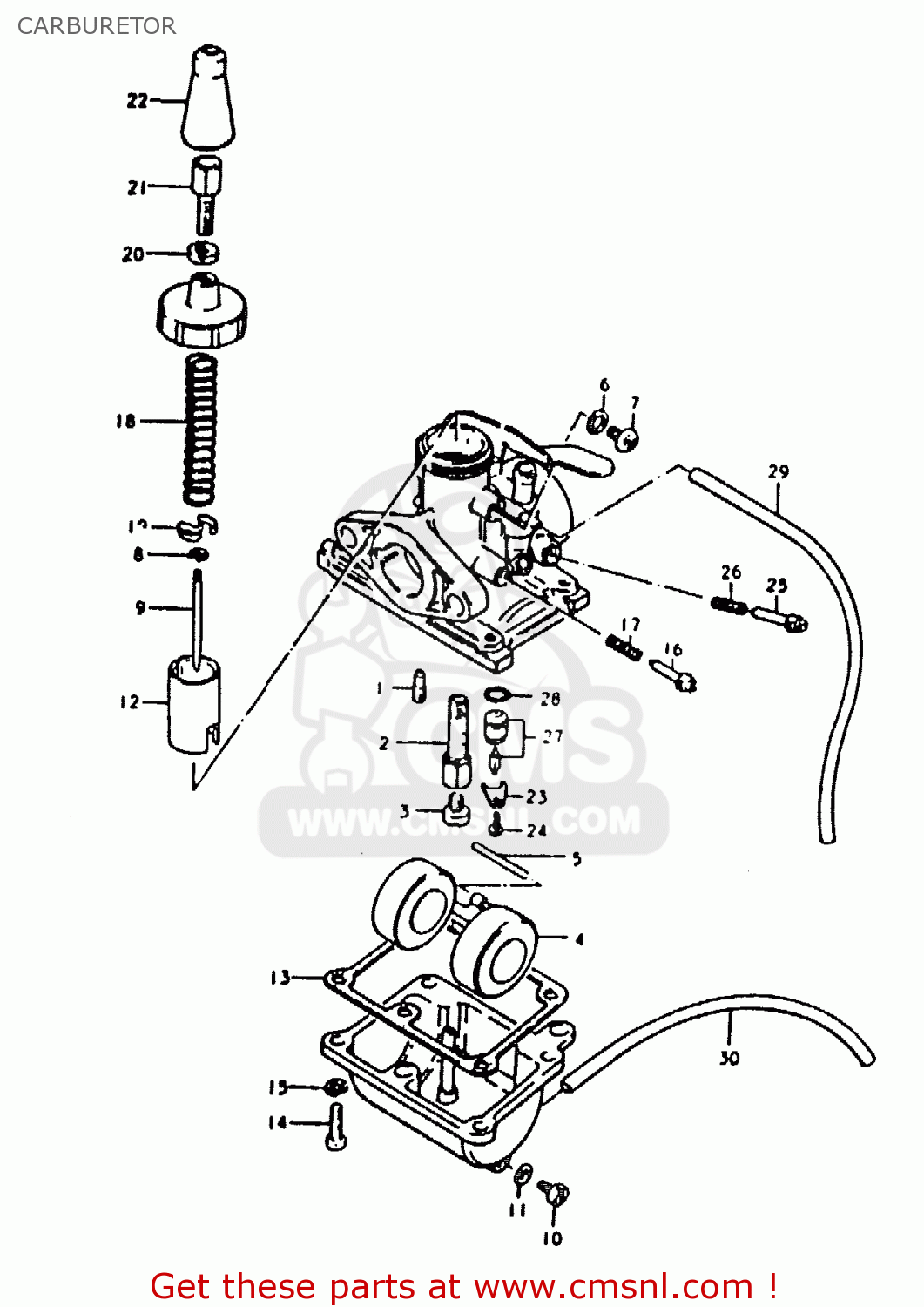

CARBURETOR ASSY
0
NO PRODUCT DESCRIPTION AVAILABLE
0
NO PRODUCT DESCRIPTION AVAILABLE
1-1
JET,PILOT
1-2
NO PRODUCT DESCRIPTION AVAILABLE
2-1
JET, NEEDLE (E-7)
2-2
NO PRODUCT DESCRIPTION AVAILABLE
3-1
JET,MAIN(70)
3-2
NO PRODUCT DESCRIPTION AVAILABLE
3-3
NO PRODUCT DESCRIPTION AVAILABLE
4
FLOAT
5
PIN,FLOAT
7
SCREW
9-1
NEEDLE,JET
9-2
NO PRODUCT DESCRIPTION AVAILABLE
10
PLUG
11
GASKET,DRAIN,PLUG (NAS)
12-1
VALVE,THROTTLE(CA:2.0)
12-2
NO PRODUCT DESCRIPTION AVAILABLE
13
GASKET,FLOAT CHAMBER (NAS)
14
SCREW
15
LOCK WASHER
16
SCREW,THROTTLE STOP
17
SPRING
18
SPRING,THROTTLE VALVE RETURN
20
NUT
21-1
ADJUSTER,CABLE
21-2
NO PRODUCT DESCRIPTION AVAILABLE
22-2
NO PRODUCT DESCRIPTION AVAILABLE
23
PLATE,NEEDLE VALVE FITING
25
SCREW,AIR
26
SPRING
27
VALVE ASSY,NEEDLE
28
O RING
30
HOSE
