FUEL COCK

TS50ERK 1982 (Z) (E02 E16 E22)

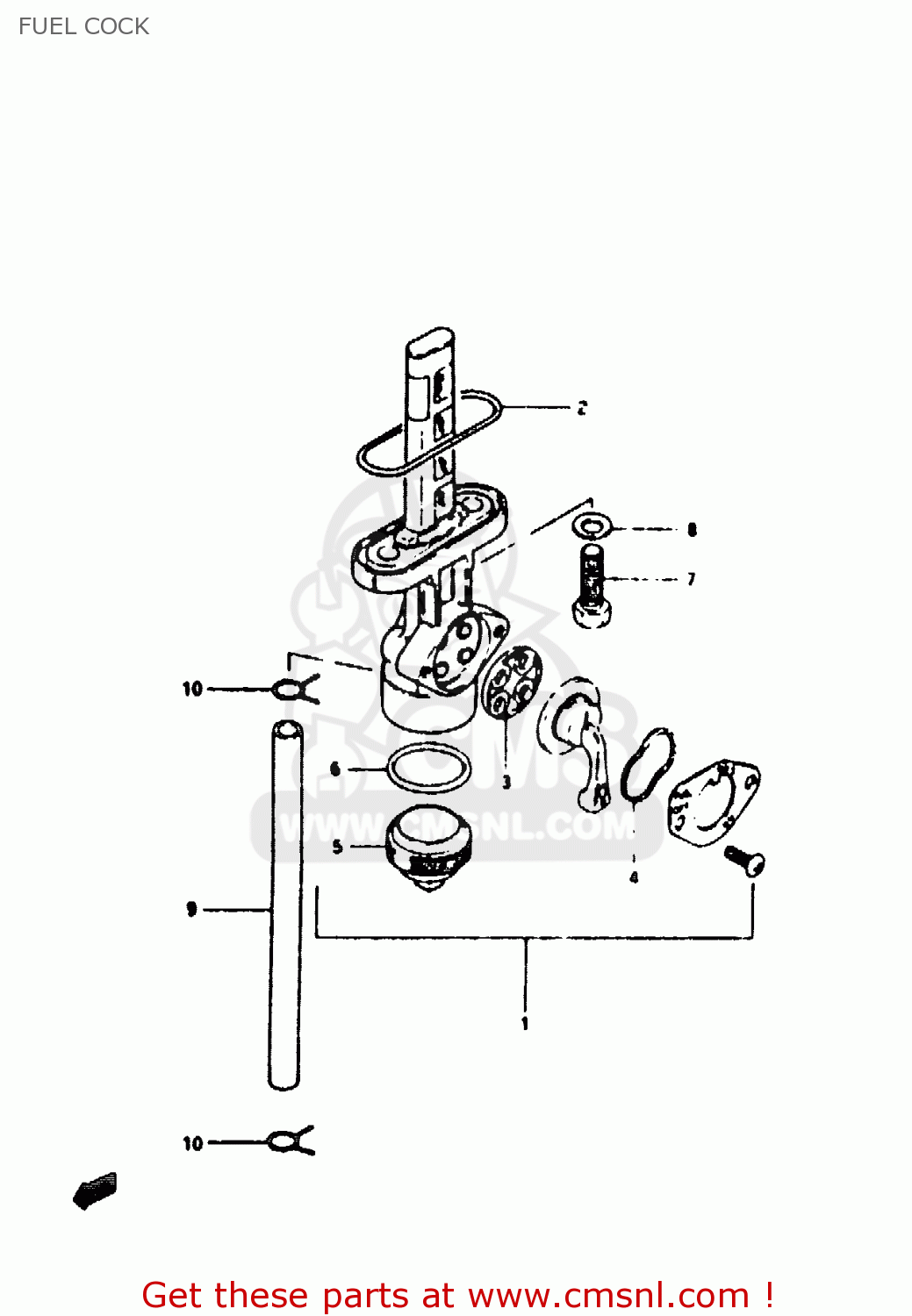

Fuel cock diagram TS50ERK 1982 (Z) (E02 E16 E22)

FUEL COCK TS50ERK 1982 (Z) (E02 E16 E22)

FUEL COCK TS50ERK 1982 (Z) (E02 E16 E22)

prices are in EUR

ref

part #

description

quantity

1

4430022604
ref: 1

COCK ASSEMBLY,FUEL

€ 57.50

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434128070
ref: 3

GASKET,LEVER (NAS)

€ 4.00

4

4435428070
ref: 4

WASHER,LEVER

€ 4.00

5

4434728601
ref: 5

CUP,FUEL COCK

€ 6.00

6

4434628070
ref: 6

GASKET,FILTER (NAS)

€ 2.50

7

0912806006
ref: 7

BOLT(6X20)

€ 2.00

8

0916806010
ref: 8

GASKET

€ 2.00

9

0934305129
ref: 9

HOSE

€ 13.00

10

0940108402
ref: 10

CLIP

€ 1.50
