REAR COMBINATION LAMP

TS50ERKDB 1983 (D) ZWITSERLAND (E18)

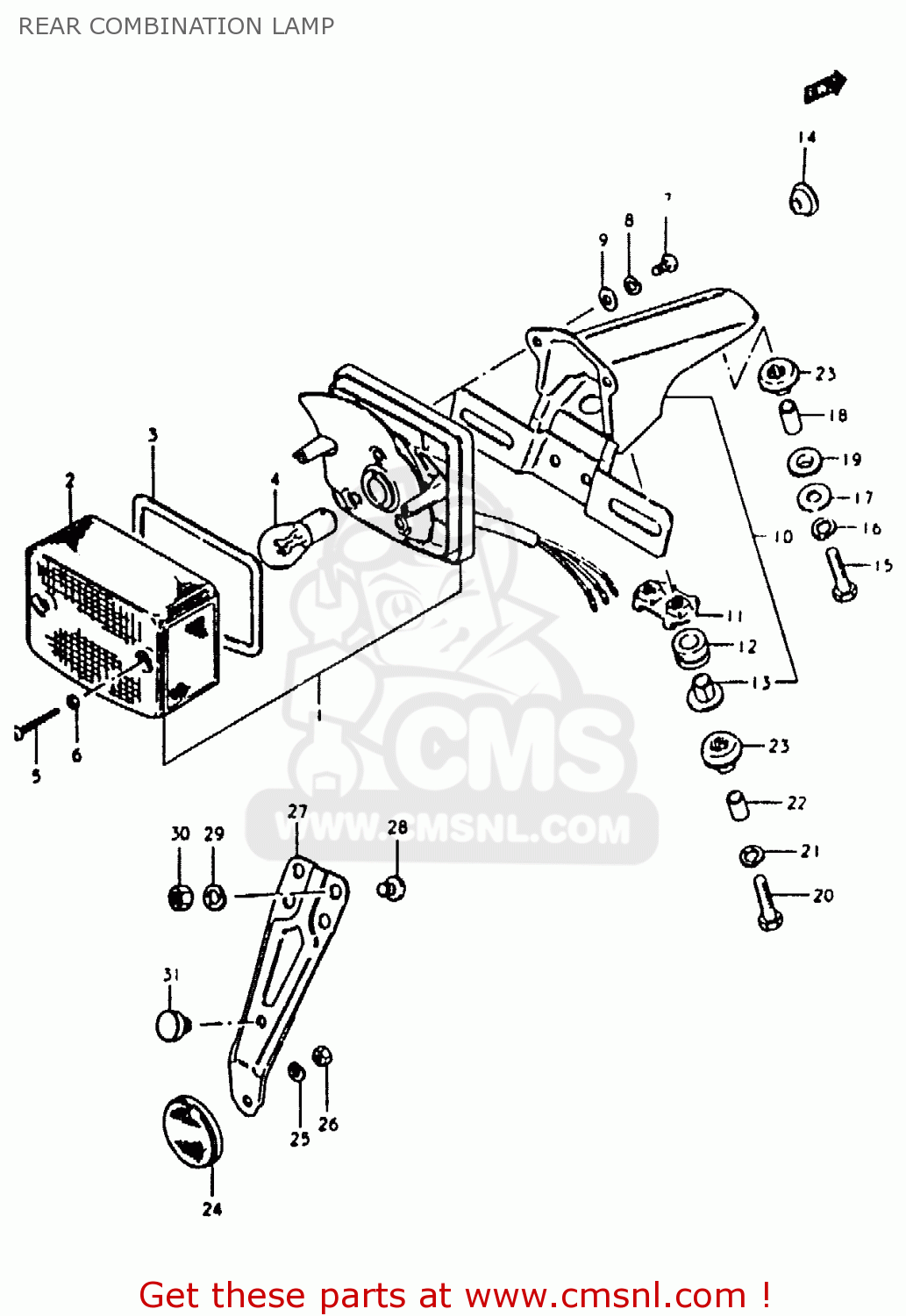

Rear combination lamp diagram TS50ERKDB 1983 (D) ZWITSERLAND (E18)

REAR COMBINATION LAMP TS50ERKDB 1983 (D) ZWITSERLAND (E18)
REAR COMBINATION LAMP TS50ERKDB 1983 (D) ZWITSERLAND (E18)
REAR COMBINATION LAMP TS50ERKDB 1983 (D) ZWITSERLAND (E18)
prices are in EUR
ref
part #
description
quantity
1
3572048522
ref: 1
LAMP UNIT, TAIL
3572048522
€ 115.00
2
3571248523
ref: 2
LENS
3571248523
€ 26.00
3
3571348510
ref: 3
GASKET (NAS)
3571348510
€ 8.50
4
0947106034
ref: 4
BULB (6V,21/5W)
€ 0.00
5
0321104308
ref: 5
EXECUTED LOCALLY
SCREW
0321104308
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0211205128
ref: 7
SCREW
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0832221058
ref: 9
WASHER
€ 2.50
10
3573048510
ref: 10
BRACKET ASSY
3573048510
€ 61.00
11
3571630950
ref: 11
PLATE
3571630950
€ 10.50
12
3576530950
ref: 12
CUSHION
3576530950
€ 18.00
13
3576630950
ref: 13
SPACER
3576630950
€ 2.00
14
0930807004
ref: 14
GROMMET
0930807004
€ 2.50
15
0110706308
ref: 15
BOLT
0110706308
€ 2.50
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
0916006060
ref: 17
WASHER
0916006060
€ 2.00
18
0918006072
ref: 18
SPACER
0918006072
€ 2.00
19
0932009003
ref: 19
CUSHION
0932009003
€ 2.00
20
0110706408
ref: 20
BOLT 6X40
0110706408
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0918006006
ref: 22
SPACER (6.8X10X11.5)
0918006006
€ 3.00
23
0932009010
ref: 23
CUSHION
0932009010
€ 2.50
24
3597030910
ref: 24
REFLEX REFLECTOR,RR
3597030910
€ 47.50
25
0832121058
ref: 25
LOCK WASHER
0832121058
€ 2.00
26
0831011058
ref: 26
NUT
0831011058
€ 2.50
27-1
3597448520
ref: 27-1
BRACKET
€ 6.00
27-2
3597448510
ref: 27-2
E41
BRACKET
€ 4.50
28
0214206108
ref: 28
SCREW
0214206108
€ 2.00
29
0832121068
ref: 29
LOCK WASHER
0832121068
€ 2.50
30
0831011068
ref: 30
NUT
0831011068
€ 2.50
31
0932105010
ref: 31
CUSHION
0932105010
€ 3.50
