SEAT (MODEL D)

TS50ERKDB 1983 (D) ZWITSERLAND (E18)

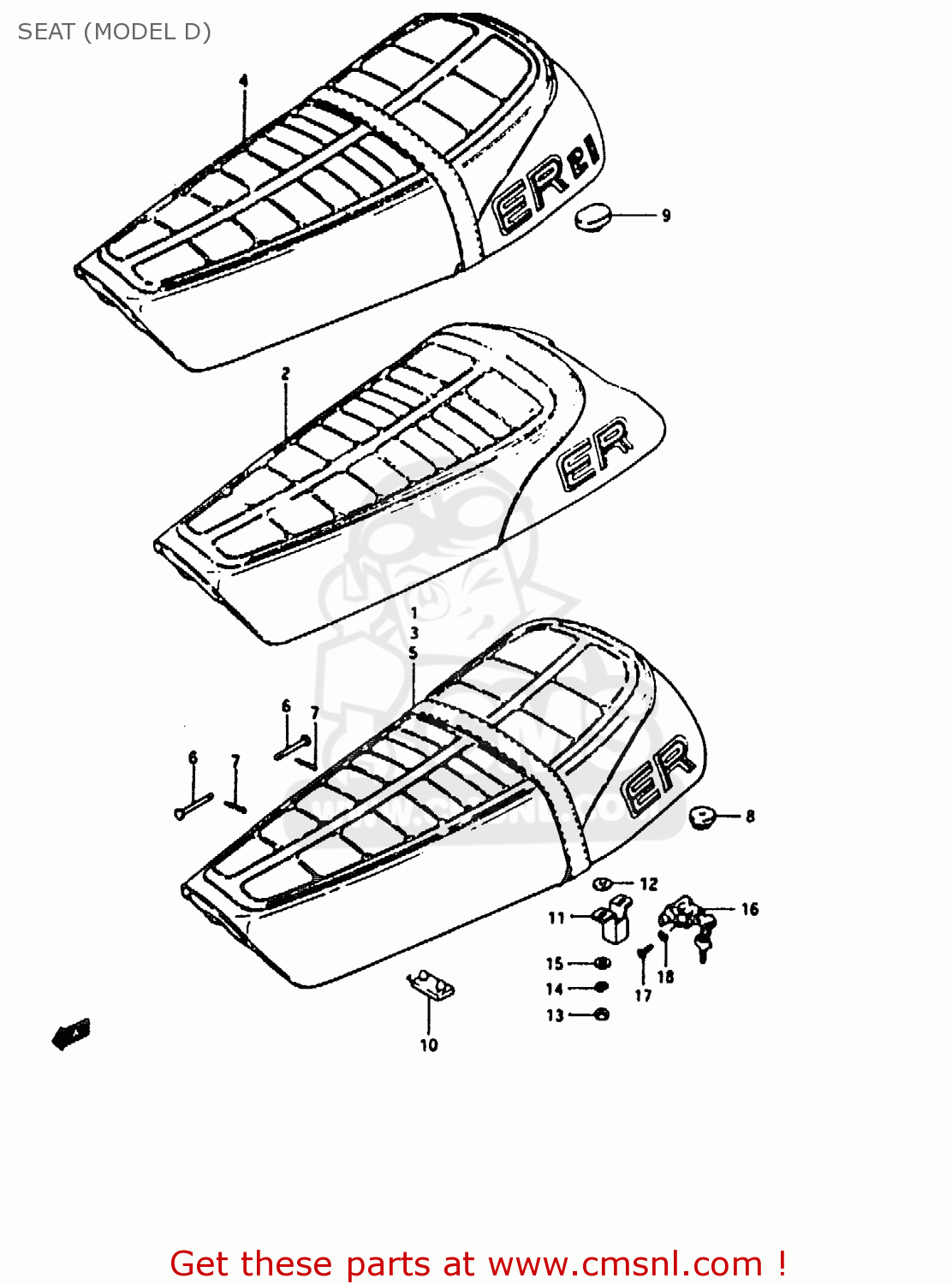

Seat (model d) diagram TS50ERKDB 1983 (D) ZWITSERLAND (E18)

SEAT (MODEL D) TS50ERKDB 1983 (D) ZWITSERLAND (E18)
SEAT (MODEL D) TS50ERKDB 1983 (D) ZWITSERLAND (E18)
SEAT (MODEL D) TS50ERKDB 1983 (D) ZWITSERLAND (E18)
prices are in EUR
ref
part #
description
quantity
1
451002650149R
ref: 1
SEAT ASSY (BLUE)
€ 209.00
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3
NOTUSED
ref: 3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
NOTUSED
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
NOTUSED
ref: 5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
6
0920006018
ref: 6
PIN
0920006018
€ 2.00
7
0411120158
ref: 7
PIN
0411120158
€ 1.50
8
0932110002
ref: 8
CUSHION(11.5X22X20)
0932110002
€ 2.00
9
NOTUSED
ref: 9
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0932020004
ref: 10
CUSHION
0932020004
€ 4.50
11
4521329300
ref: 11
PLATE,CLAMP GUIDE
€ 7.00
12
0916008043
ref: 12
WASHER(8.5X18X1)
0916008043
€ 1.50
13
0831011068
ref: 13
NUT
0831011068
€ 2.50
14
0832131068
ref: 14
LOCK WASHER
€ 2.50
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
16
9570030832
ref: 16
LOCK ASSY,SEAT
9570030832
€ 54.00
17
0211205128
ref: 17
SCREW
€ 2.50
18
0832121058
ref: 18
LOCK WASHER
0832121058
€ 2.00
