OIL TANK

TS50XK 1991 (M) (E01 E02 E16 E17 E18 E21 E22 E25)

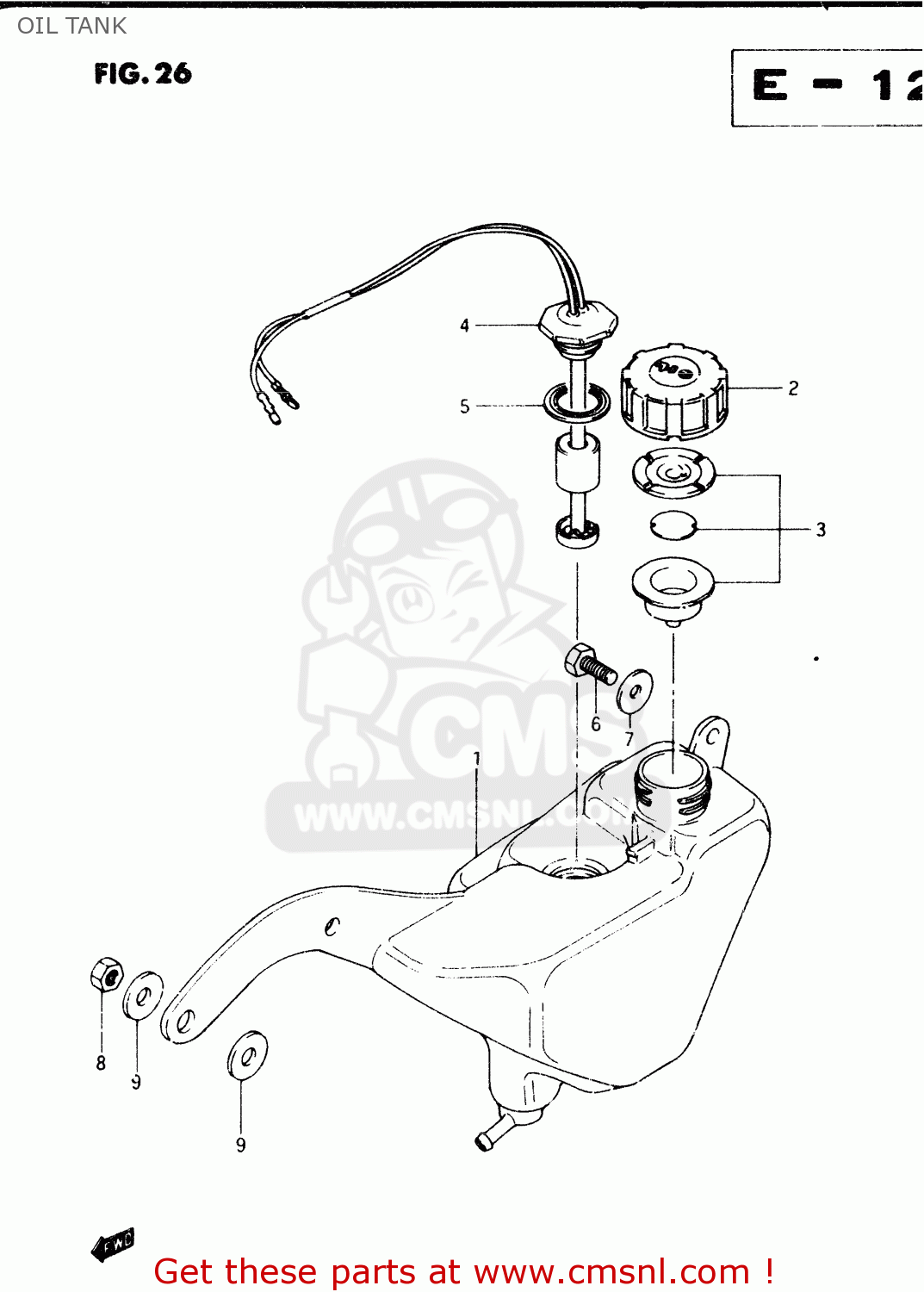

Oil tank diagram TS50XK 1991 (M) (E01 E02 E16 E17 E18 E21 E22 E25)

OIL TANK TS50XK 1991 (M) (E01 E02 E16 E17 E18 E21 E22 E25)

OIL TANK TS50XK 1991 (M) (E01 E02 E16 E17 E18 E21 E22 E25)

prices are in EUR

ref

part #

description

quantity

1

4461013700
ref: 1
<-44611-13700

TANK,OIL

€ 51.50

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

3788040A00
ref: 4

SWITCH,OIL LVL

€ 36.00

5

4464331000
ref: 5

GASKET (NAS)

€ 2.50

6-1

0110706163
ref: 6-1
MODEL E/G/H/J

BOLT

€ 2.00

6-2

0911606006
ref: 6-2
MODEL M/R

BOLT(6X16)

€ 2.00

7-1

0916006027
ref: 7-1
MODEL E

WASHER (6.5X20X1.2)

€ 2.00

7-2

0916006006
ref: 7-2
MODEL G/H/J

WASHER

€ 2.00

8-1

0831011067
ref: 8-1
MODEL E/G/H/J/M

NUT 6MM

€ 2.50

8-2

0831000063
ref: 8-2
MODEL R

NUT 6MM

€ 2.00

9-1

0916006066
ref: 9-1
MODEL E

WASHER(6.5X20X1.6)

€ 2.00

9-2

0916006006
ref: 9-2
MODEL G/H/J

WASHER

€ 2.00

9-3

0916006013
ref: 9-3
MODEL M/R

WASHER (6.5X18X2)

€ 10.50
