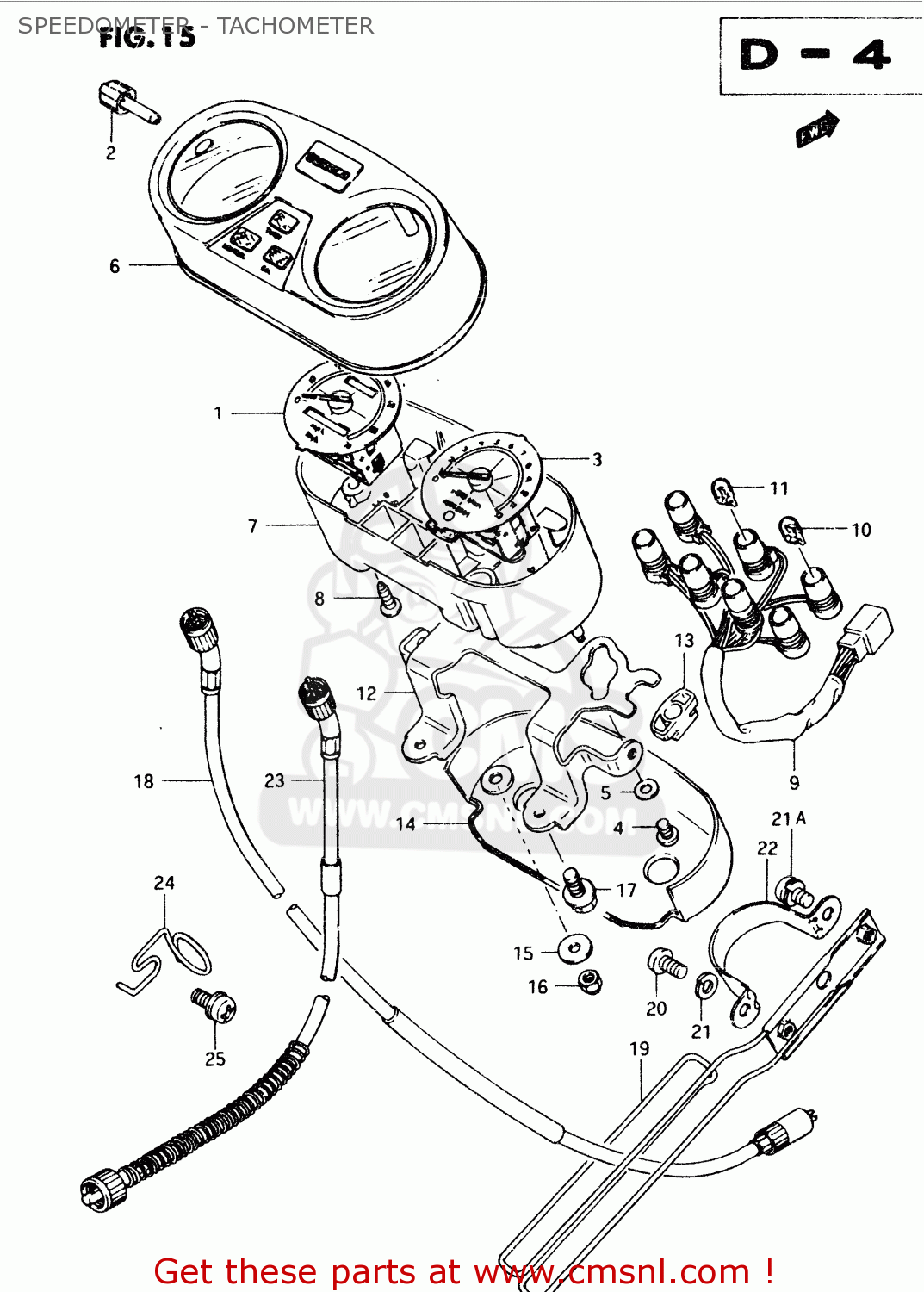

SPEEDOMETER - TACHOMETER - TS50XK 1991 (M) (E01 E02 E16 E17 E18 E21 E22 E25)

ref

part #

description

quantity

1-1

3412013690
ref: 1-1
E2

METER,SPEED (KM/MPH)

€ 190.50

1-2

3412013670
ref: 1-2
E1,E16,E17,E18,E21,E

SPEEDOMETER (KILO)

€ 169.50

2

3498013600
ref: 2

KNOB,TRIP METER

€ 5.00

3

3422013670
ref: 3

TACHOMETER

€ 197.50

4

0211204087
ref: 4

SCREW

€ 1.50

5

0832221047
ref: 5

WASHER 4MM

€ 2.00

6

3415113670
ref: 6

HOOD,METER

€ 48.00

7

3411113700
ref: 7

CASE,METER

€ 32.50

8

0324204169
ref: 8

SCREW

€ 4.50

9

3417313690
ref: 9

SOCKET

€ 35.50

10

0947112077
ref: 10

BULB(12V1.7W,T10,WB121)

€ 1.00

11

0947112028
ref: 11

BULB(12V3.4W,T10)

€ 3.50

12

3495013670
ref: 12

BRACKET,METER

€ 38.00

13

3418932400
ref: 13

CUSHION

€ 4.00

14

3415213670
ref: 14

COVER,LWR

€ 17.00

15

0916005031
ref: 15

WASHER

€ 1.50

16

0831311055
ref: 16

NUT

€ 2.00

17-1

0111406168
ref: 17-1
MODEL E/G/H/J/M

BOLT

€ 1.50

17-2

0156006163
ref: 17-2
MODEL R

BOLT

€ 2.00

18

3491013600
ref: 18

CABLE ASSEMBLY,SPEEDOMETER

€ 34.00

19

3493037412
ref: 19

GUIDE,CABLE

€ 14.00

20

0211206207
ref: 20
MODEL E/G/H/J/M

SCREW

€ 2.00

21

0832121067
ref: 21
MODEL E/G/H/J/M

WASHER,LOCK

€ 2.50

21A

0211236203
ref: 21A
MODEL R

SCREW

€ 2.00

22

3499713610
ref: 22

CLAMP,CABLE GUIDE

€ 4.00

23

3494013610
ref: 23

CABLE ASSY,TACHOMETER

€ 37.00

24

3499713600
ref: 24

GUIDE,TACHOMETER CABLE

€ 3.00

25-1

0211216125
ref: 25-1
MODEL E/G/H/J/M

SCREW

€ 2.00

25-2

0211216123
ref: 25-2
MODEL R

SCREW

€ 2.00

SPEEDOMETER - TACHOMETER

all assemblies
