AIR CLEANER

VL1500 BOULEVARD C90 2007 (K7) USA (E03)

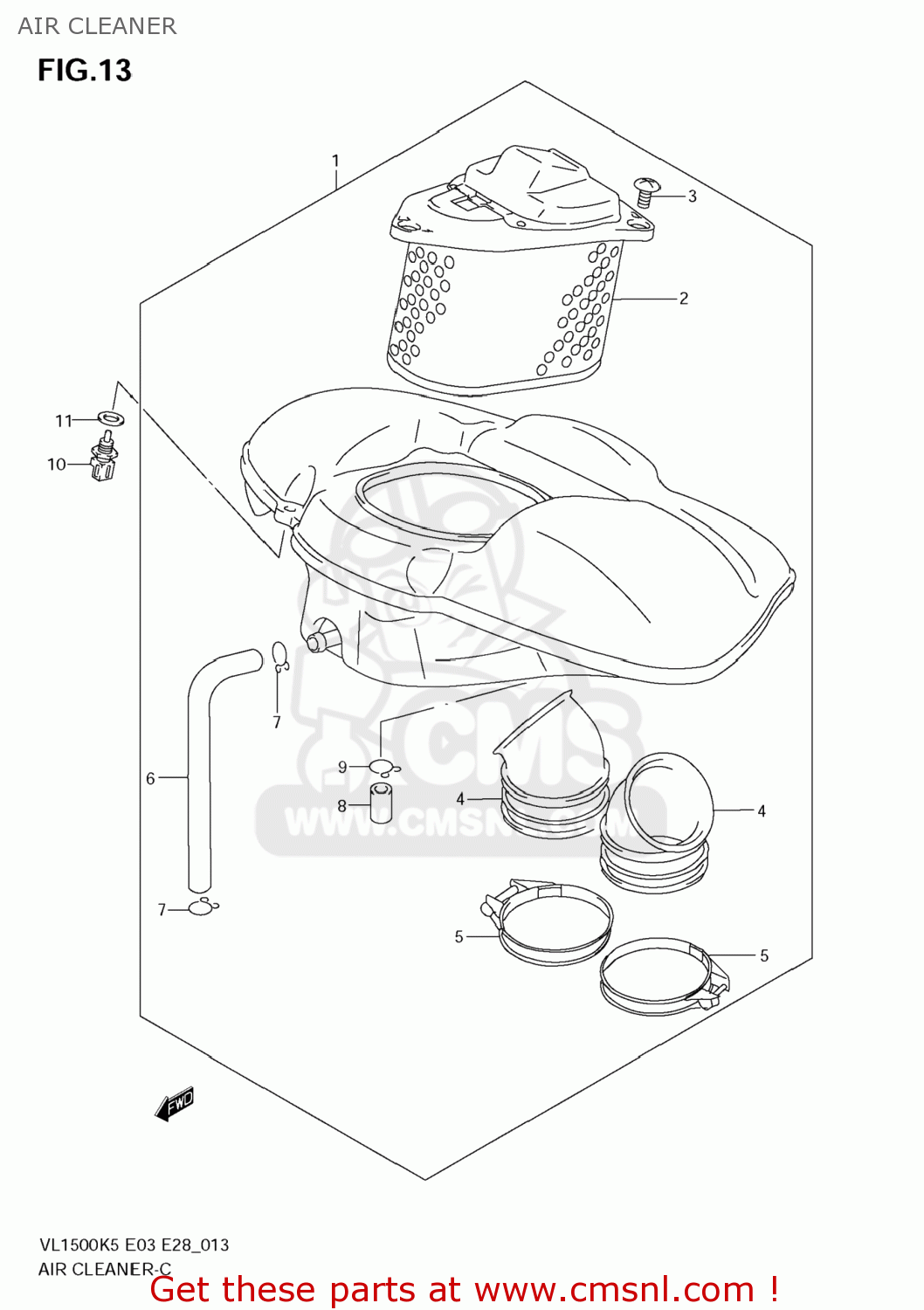

Air cleaner diagram VL1500 BOULEVARD C90 2007 (K7) USA (E03)

AIR CLEANER VL1500 BOULEVARD C90 2007 (K7) USA (E03)

AIR CLEANER VL1500 BOULEVARD C90 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370010F20
ref: 1

CLEANER ASSY,AIR

€ 203.50

2

1378010F20
ref: 2

FILTER

€ 41.00

3

021420512B
ref: 3

SCREW

€ 1.50

4

1388110F20
ref: 4

TUBE,OUTLET

€ 20.50

5

0940254208
ref: 5

CLAMP

€ 5.00

6

1385310F00
ref: 6

TUBE,BREATHER

€ 16.50

7

0940114301
ref: 7

CLIP

€ 2.00

8

1385941B10
ref: 8

PLUG

€ 5.50

9

0940114301
ref: 9

CLIP

€ 2.00

10

1365057F00
ref: 10

SENSOR,WATER TEMP

€ 35.50

11

0916812017
ref: 11

GASKET(12X17X1) (NAS)

€ 2.00
