FUEL PUMP

VL1500 BOULEVARD C90 2007 (K7) USA (E03)

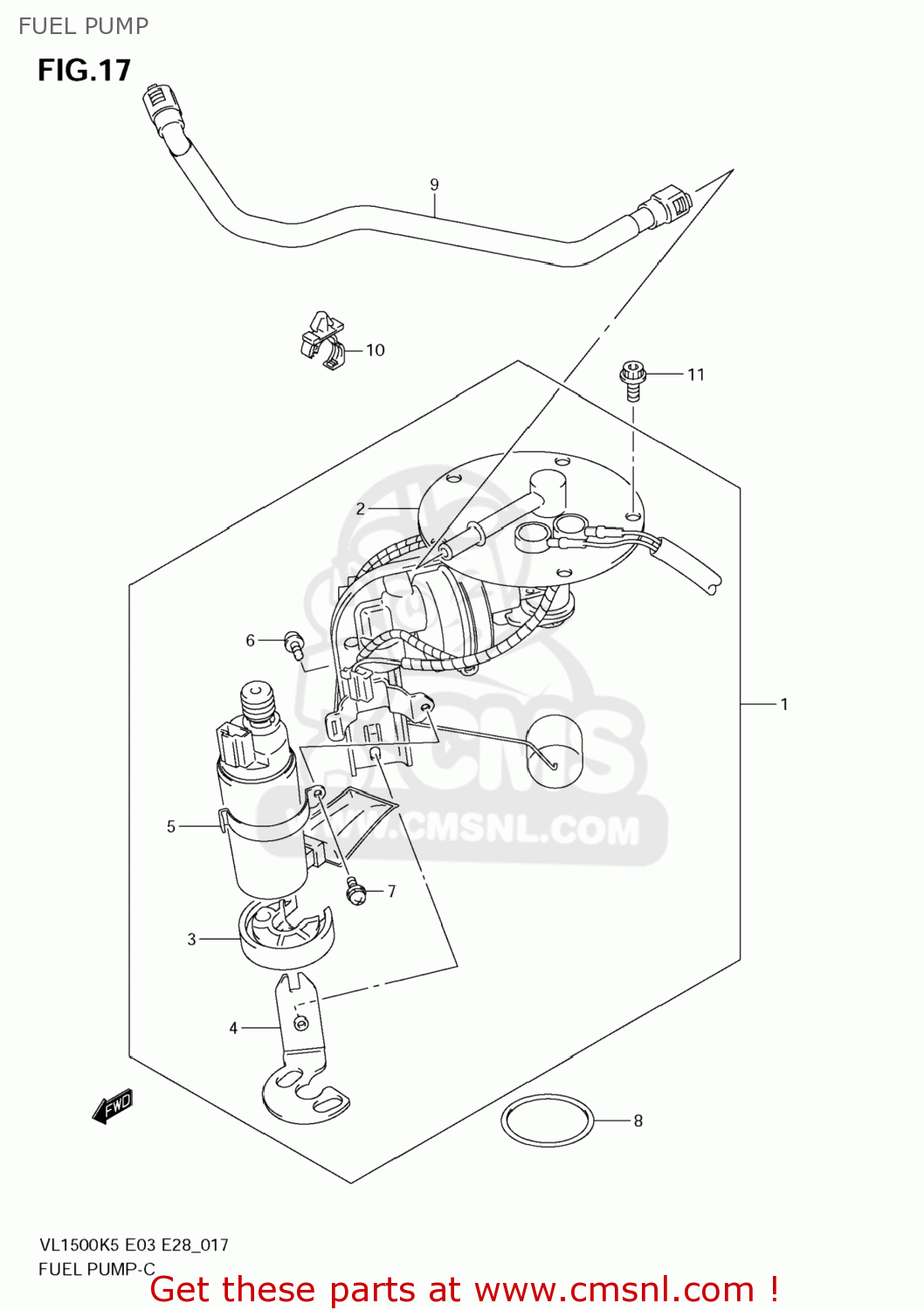

Fuel pump diagram VL1500 BOULEVARD C90 2007 (K7) USA (E03)

FUEL PUMP VL1500 BOULEVARD C90 2007 (K7) USA (E03)

FUEL PUMP VL1500 BOULEVARD C90 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1510010F10
ref: 1

PUMP ASSY,FUEL

€ 827.00

2

1511010F00
ref: 2

PLATE ASSY

€ 579.50

3

1511135F00
ref: 3

CUSHION

€ 8.50

4

1511210F00
ref: 4

HOLDER,FUEL PUMP

€ 15.00

5

1511510F00
ref: 5

BAND,FUEL PUMP

€ 12.00

6

1511610F00
ref: 6

SCREW

€ 3.50

7

1511610F10
ref: 7

SCREW

€ 3.50

8

1520135F00
ref: 8

O RING,FUEL PUMP

€ 26.00

9

1581010F00
ref: 9
15810-10F01

HOSE, FUEL

€ 40.50

10

0940312412
ref: 10

CLAMP

€ 2.50

11

071200612B
ref: 11

BOLT

€ 3.50
