HANDLE LEVER (MODEL K7/K8/K9)

VL1500 BOULEVARD C90 2008 (K8) USA (E03)

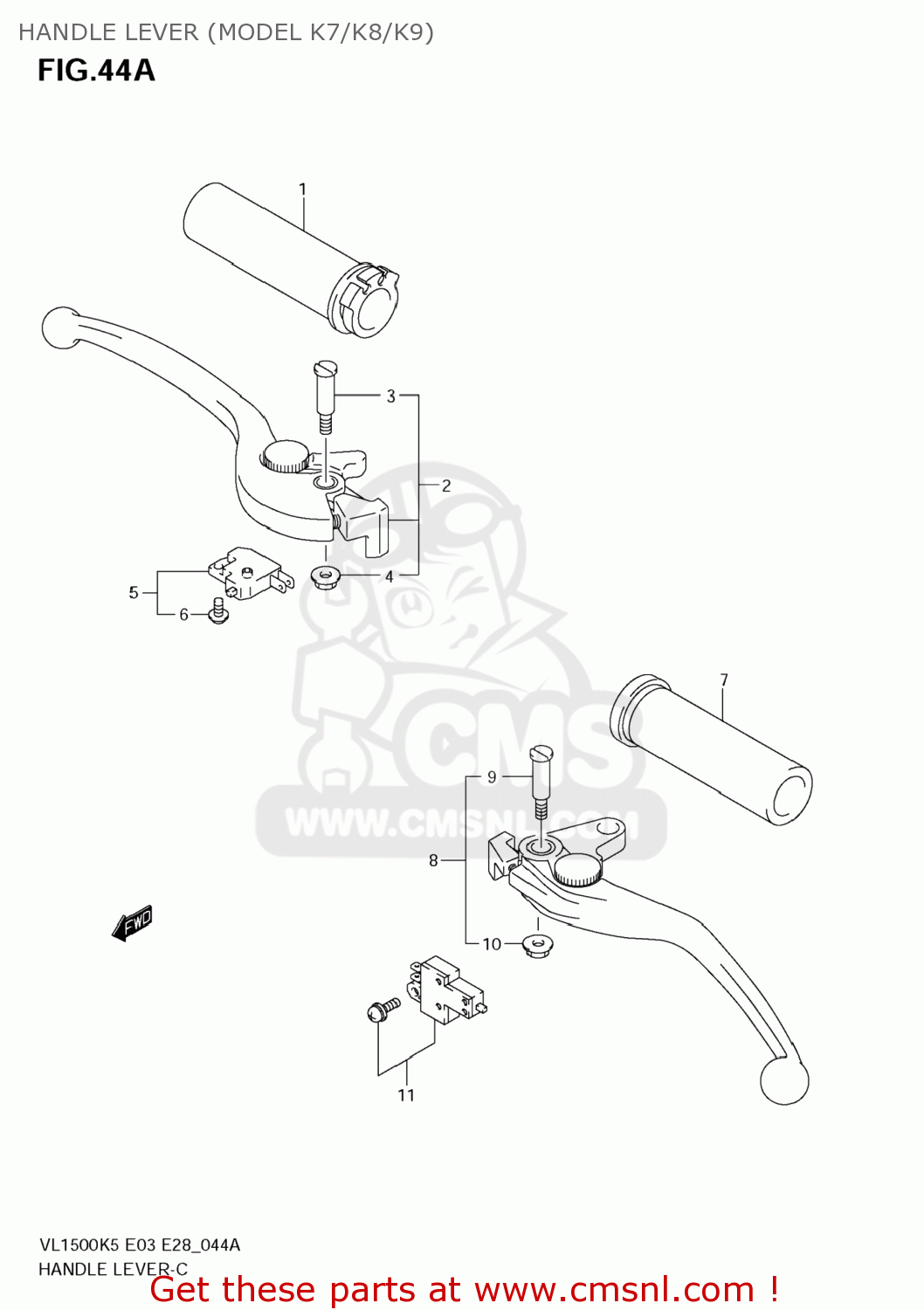

Handle lever (model k7/k8/k9) diagram VL1500 BOULEVARD C90 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

5711026D10
ref: 1

GRIP,THROTTLE

€ 22.00

5730048G00
ref: 2

LEVER ASSY,BRAKE

€ 100.50

5743148G00
ref: 3

BOLT,PIVOT

€ 6.00

083192106A
ref: 4

NUT

€ 2.00

5746017C11
ref: 5
57460-14J01

SWITCH ASSY,ST

€ 32.50

5746517C00
ref: 6

SCREW

€ 1.50

5721026D00
ref: 7

GRIP,L

€ 21.50

5750010F10
ref: 8

LEVER ASSY,CLUTCH

€ 77.50

5743148G00
ref: 9

BOLT,PIVOT

€ 6.00

083192106A
ref: 10

NUT

€ 2.00

11-1

5756010F00
ref: 11-1

SWITCH ASSY,CLUTCH

€ 26.50

11-2

5756010F10
ref: 11-2

SWITCH ASSY,CLUTCH

€ 27.50
