REAR CALIPER

VL1500 BOULEVARD C90 2008 (K8) USA (E03)

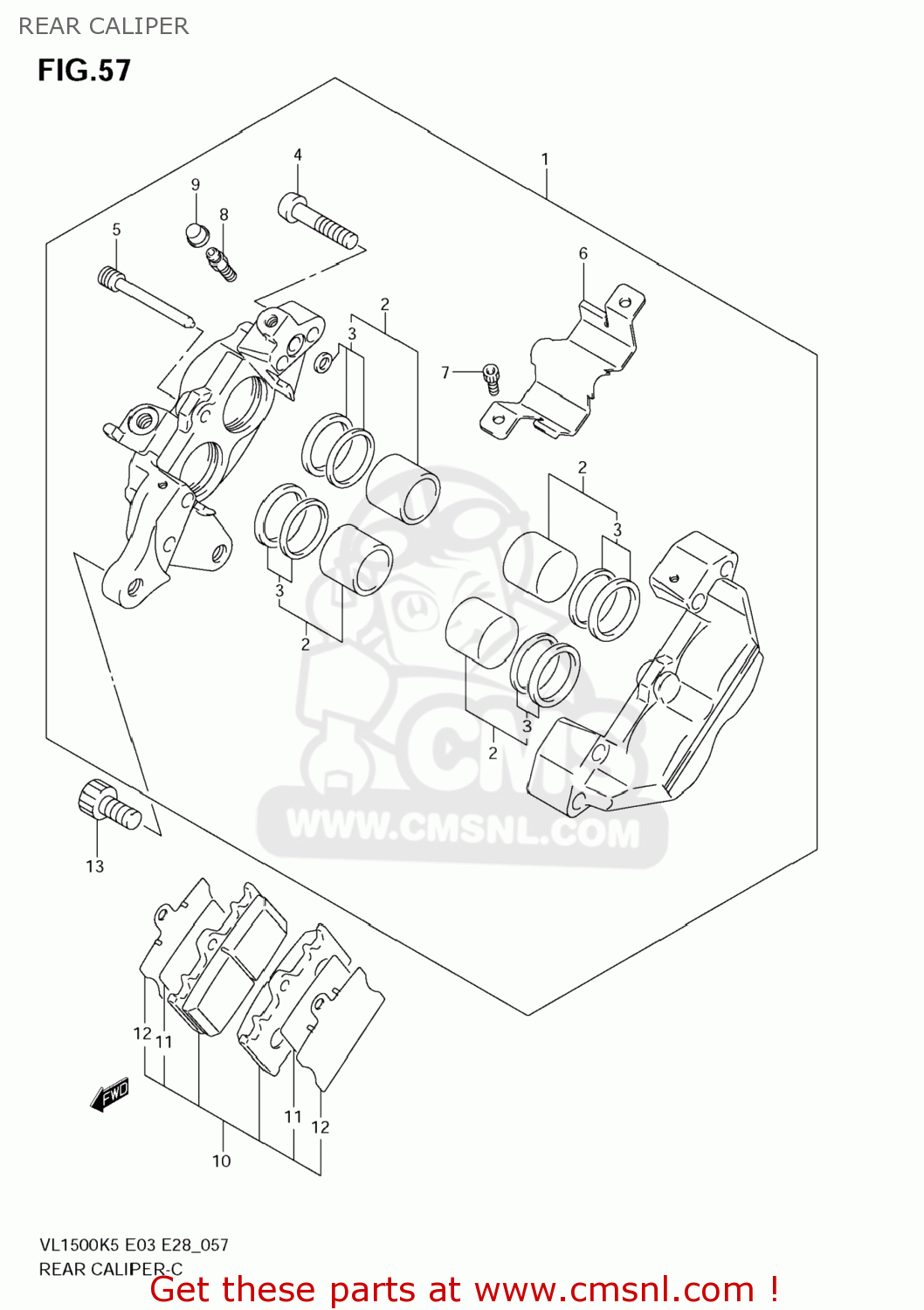

Rear caliper diagram VL1500 BOULEVARD C90 2008 (K8) USA (E03)

prices are in EUR

ref

part #

description

quantity

6910010F10999
ref: 1

CALIPER ASSY,RR

€ 791.00

6910010810
ref: 2

PISTON SET

€ 206.50

5930018820
ref: 3

SEAL SET,PISTON

€ 56.00

5914518G00
ref: 4

BOLT

€ 7.50

5914140F00
ref: 5

PIN,PAD

€ 31.50

6915110F10
ref: 6

COVER

€ 16.00

5915322D00
ref: 7

SCREW

€ 4.50

5912118410
ref: 8

BLEEDER

€ 8.00

5515666310
ref: 9

CAP,BLEEDER PLUG

€ 6.00

6910010850
ref: 10

PAD & SHIM SET (NAS)

€ 79.00

6917110F10
ref: 11

SHIM,PAD

€ 15.50

6917210F10
ref: 12

COVER,SHIM

€ 17.50

0713010203
ref: 13
07130-1020B

BOLT

€ 3.50
