FRONT DAMPER (MODEL K1)

VL1500 INTRUDER 2004 (K4) USA (E03)

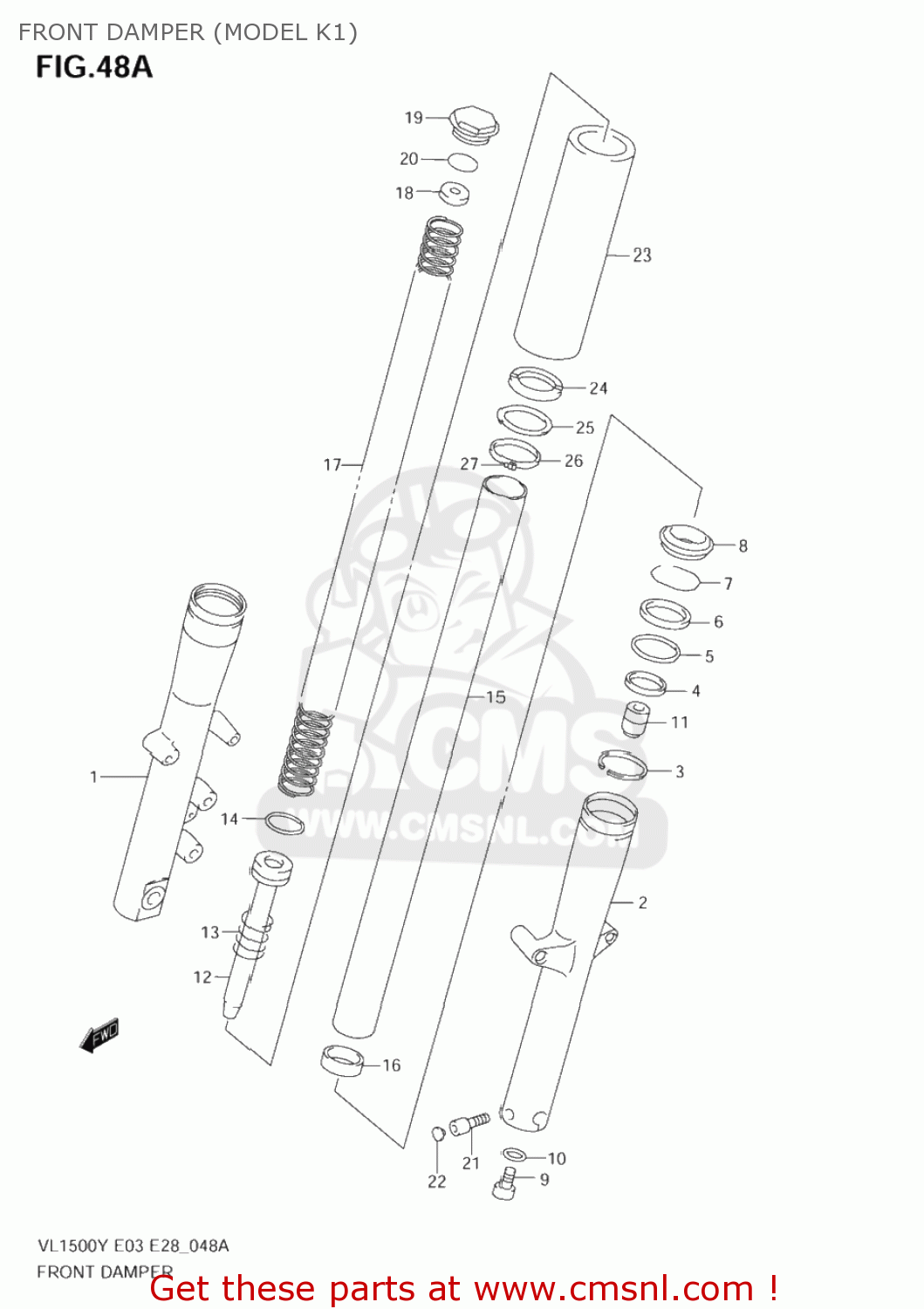

Front damper (model k1) diagram VL1500 INTRUDER 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K1) VL1500 INTRUDER 2004 (K4) USA (E03)

FRONT DAMPER (MODEL K1) VL1500 INTRUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110310F40
ref:

DAMPER ASSY,FR FORK,R

€ 0.00



5110410F40
ref:

DAMPER ASSY,FR FORK,L

€ 0.00

1

5113110F40
ref: 1

TUBE,OUTER,R

€ 390.00

2

5114110F40
ref: 2

TUBE,OUTER,L

€ 0.00

3

5146910F00
ref: 3

GUIDE,CASE

€ 16.00

4

5115211D60
ref: 4

BUSH,GUIDE

€ 12.00

5

5116838B00
ref: 5

SPACER,SEAL

€ 5.00

6

5115308D00
ref: 6

SEAL,OIL

€ 15.50

7

5155638B00
ref: 7

CIRCLIP,FORK OIL SEAL

€ 4.50

8

5157147D50
ref: 8

SEAL,DUST

€ 18.00

9

5114742AA0
ref: 9
51147-06F10

BOLT,CENTER (8X18)

€ 3.00

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

5119510F00
ref: 11

PIECE,OIL LOCK

€ 18.50

12

5114610F00
ref: 12

SEAT,PIPE

€ 71.50

13

5117710F00
ref: 13

SPRING,REBOUND

€ 7.00

14

5119647D00
ref: 14

RING,PISTON

€ 6.00

15

5111010F20
ref: 15

TUBE,INNER

€ 465.50

16

5112110F00
ref: 16
51121-42E00

BUSHING,SLIDE

€ 15.50

17

5117110F00
ref: 17

SPRING,FR

€ 117.00

18

5135310F00
ref: 18

BOLT,FORK INNER

€ 17.50

19

5135138B00
ref: 19

BOLT

€ 81.00

20

5111738B00
ref: 20

O RING

€ 4.00

21

5116610F00
ref: 21

BOLT

€ 8.00

22

0925006009
ref: 22

CAP(OD:14.5)

€ 3.50

23

5146410F00
ref: 23

CASE,UNDER

€ 110.00

24

5146810F00
ref: 24

SEAT,RUBBER

€ 13.50

25

5146710F00
ref: 25

WASHER

€ 8.00

26

5146510F00
ref: 26

SPACER

€ 33.50

27

5146610F00
ref: 27

BOLT

€ 4.50
