TURNSIGNAL LAMP (MODEL K2/K3)

VL1500 INTRUDER 2004 (K4) USA (E03)

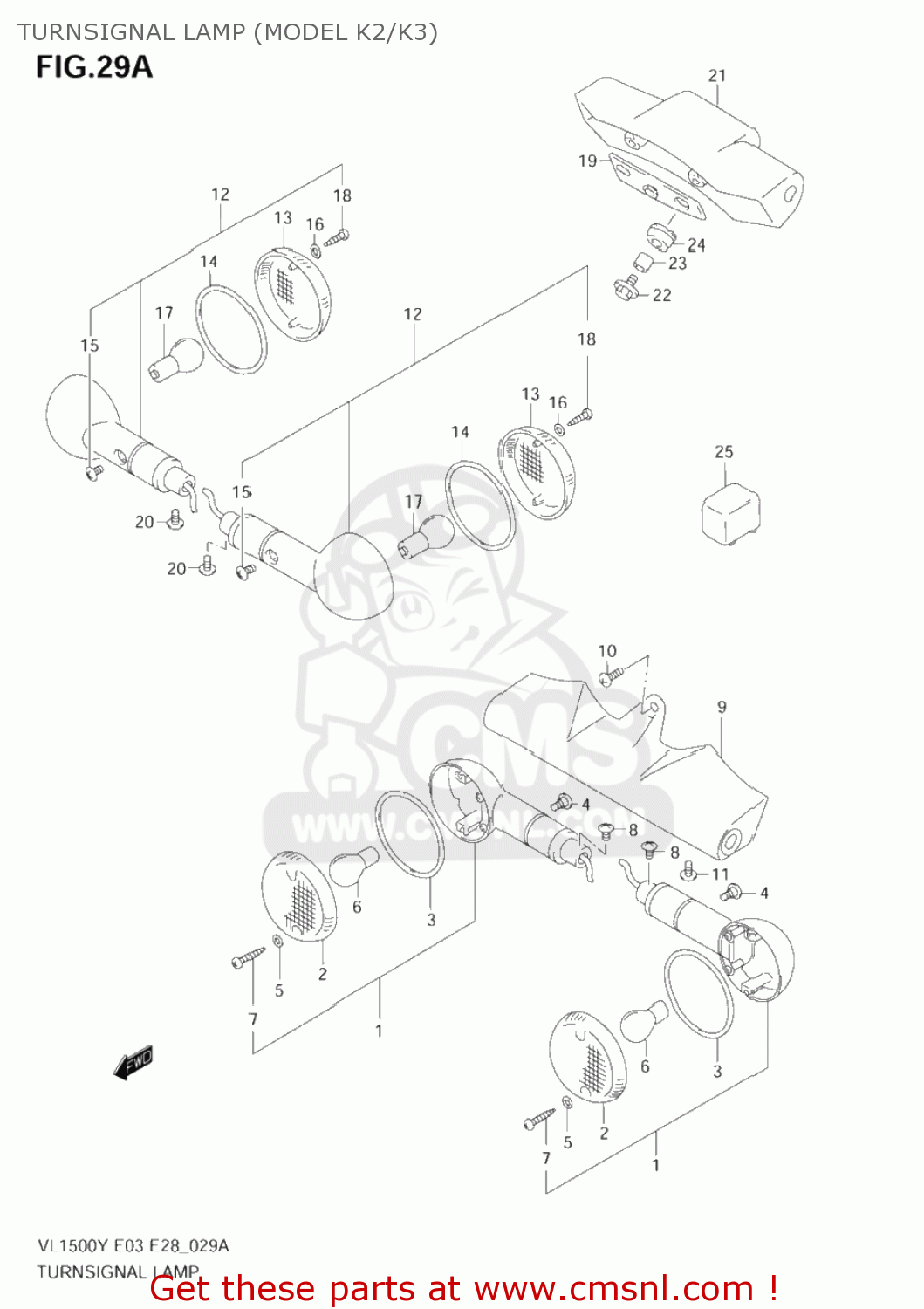

Turnsignal lamp (model k2/k3) diagram VL1500 INTRUDER 2004 (K4) USA (E03)

TURNSIGNAL LAMP (MODEL K2/K3) VL1500 INTRUDER 2004 (K4) USA (E03)

TURNSIGNAL LAMP (MODEL K2/K3) VL1500 INTRUDER 2004 (K4) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3560110F60
ref: 1-1

LAMP ASSY,FR TURN SIGNAL,R

€ 0.00

1-2

3560210F60
ref: 1-2

LAMP ASSY,FR TURN SIGNAL,L

€ 0.00

2

3561238A30
ref: 2

LENS

€ 16.50

3

3561338A00
ref: 3

GASKET (NAS)

€ 11.50

4

3562338A01
ref: 4

SCREW

€ 5.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947112083
ref: 6
09471-12128

BULB(12V21/5W)

€ 6.00

7

0321104253
ref: 7
03211-0425B

SCREW

€ 2.00

8

0214206107
ref: 8

SCREW

€ 2.00

9

3567110F00
ref: 9

STAY,FR TURNSIGNAL

€ 396.00

10

0913906027
ref: 10

SCREW(6X12)

€ 3.00

11

0913908007
ref: 11

SCREW(8X16)

€ 4.50

12-1

3560310F50
ref: 12-1

LAMP ASSY,RR TURNSIGNAL,R

€ 116.50

12-2

3560410F50
ref: 12-2

LAMP ASSY,RR TURNSIGNAL,L

€ 115.50

13

3565238A21
ref: 13

LENS

€ 16.50

14

3561338A00
ref: 14

GASKET (NAS)

€ 11.50

15

3562338A01
ref: 15

SCREW

€ 5.50

16

3562743010
ref: 16

GASKET (NAS)

€ 2.00

17

0947112045
ref: 17

BULB(12V21W)

€ 5.00

18

0321104253
ref: 18
03211-0425B

SCREW

€ 2.00

19

3567410F00
ref: 19

CUSHION,RR TURN STAY

€ 10.50

20

0214206107
ref: 20

SCREW

€ 2.00

21

3562110F00
ref: 21

STAY,RR TURNSIGNAL

€ 326.50

22

0911606115
ref: 22

BOLT(6X20)

€ 2.00

23

0918006310
ref: 23

SPACER(6.5X10X10)

€ 2.00

24

0932009010
ref: 24

CUSHION

€ 2.50

25

3861003F00
ref: 25

RELAY ASSY,TURNSIGNAL LAMP

€ 88.50
