SPEEDOMETER (VL800K3/ZK3/K4/ZK4)

VL800 VOLUSIA 2002 (K2) USA (E03)

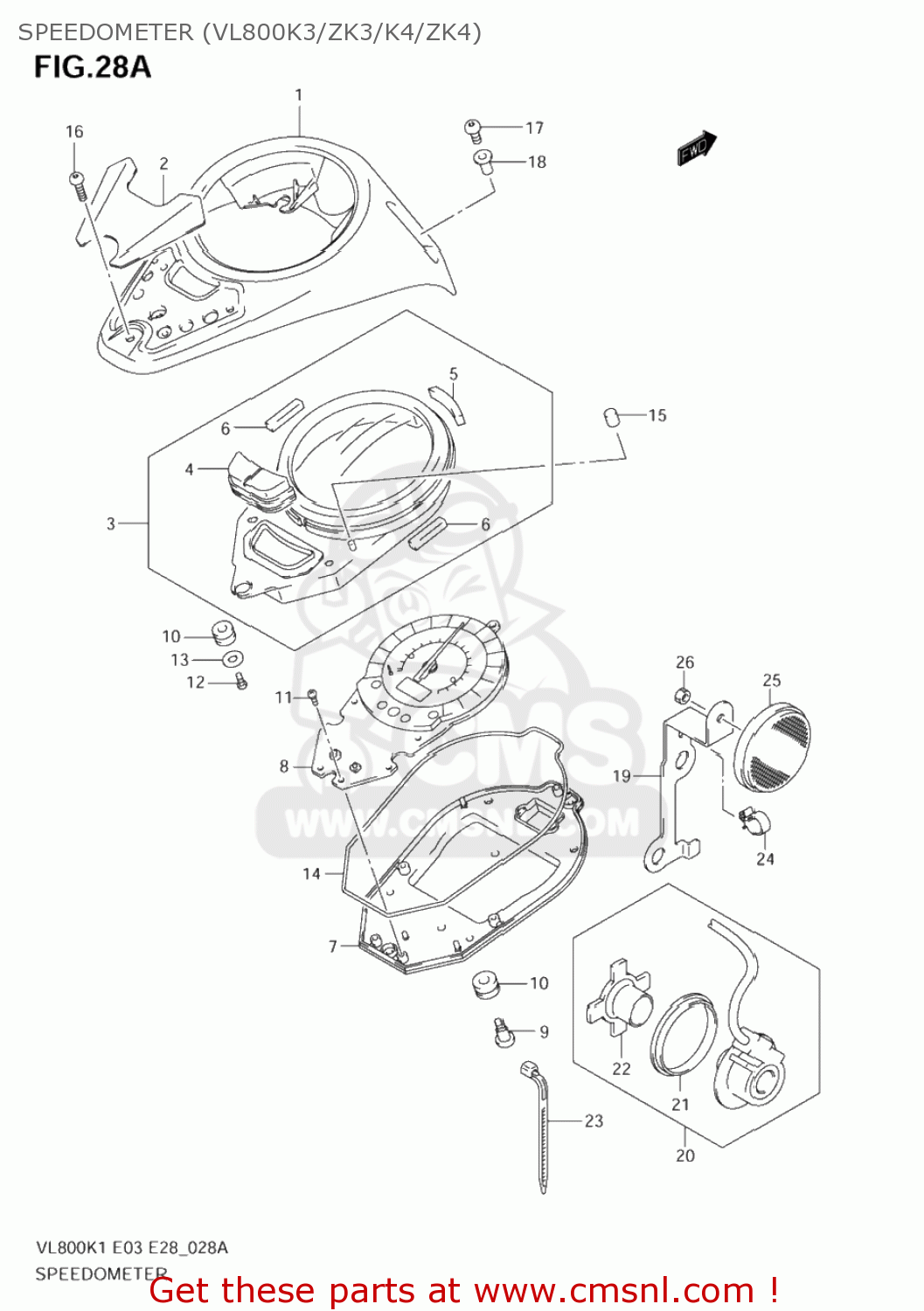

Speedometer (vl800k3/zk3/k4/zk4) diagram VL800 VOLUSIA 2002 (K2) USA (E03)

SPEEDOMETER (VL800K3/ZK3/K4/ZK4) VL800 VOLUSIA 2002 (K2) USA (E03)

SPEEDOMETER (VL800K3/ZK3/K4/ZK4) VL800 VOLUSIA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3415041F00
ref: 1

CASE ASSY

€ 246.00

2

3415741F00
ref: 2

PLATE,DECORATION

€ 18.50

3

3415141F00
ref: 3

CASE,UPR

€ 184.00

4

3414141F00
ref: 4

SWITCH,SELECT

€ 17.50

5

3419641F00
ref: 5

CUSHION NO.1

€ 4.50

6

3419641F10
ref: 6

CUSHION NO.2

€ 6.00

7

3415241F00
ref: 7

CASE,LWR

€ 48.50

8-1

3412041F30
ref: 8-1

SPEEDOMETER

€ 0.00

8-2

3412041F50
ref: 8-2

SPEEDOMETER

€ 0.00

8-3

3412041F20
ref: 8-3

SPEEDOMETER

€ 534.50

8-4

3412041F40
ref: 8-4

SPEEDOMETER

€ 504.00

9

3418641F00
ref: 9

BOLT

€ 8.00

10

3499643410
ref: 10

CUSHION,METER

€ 3.00

11

3418314F00
ref: 11

SCREW(3X10)

€ 3.00

12

3414916B00
ref: 12

SCREW(4X14)

€ 2.00

13

3418121D00
ref: 13

WASHER

€ 6.50

14

3415341F00
ref: 14

GASKET,METER CASE (NAS)

€ 11.00

15

3496141F00
ref: 15

CUSHION NO.4

€ 6.00

16

0913905025
ref: 16

SCREW(5X14)

€ 2.00

17

0913905066
ref: 17

SCREW(5X18)

€ 3.00

18

0915905019
ref: 18

NUT

€ 5.50

19

3493841F10
ref: 19

GUIDE,SENSOR LEAD LWR

€ 6.50

20

3499041F00
ref: 20

SENSOR,SPEED

€ 244.50

21

0928644001
ref: 21

SEAL,OIL(44X55X6)

€ 10.00

22

3498321E00
ref: 22

ROTOR,SPEEDOMETER

€ 30.00

23

0940714407
ref: 23

CLAMP(L:145)

€ 4.00

24

0940306410
ref: 24

CLAMP

€ 2.00

25

3595014A00
ref: 25

REFLECTOR,REFLEX FR

€ 15.00

26

0831610053
ref: 26
08316-1005A

NUT

€ 2.50
