TRANSMISSION (MODEL K1/K2/K3/K4)

VL800 VOLUSIA 2002 (K2) USA (E03)

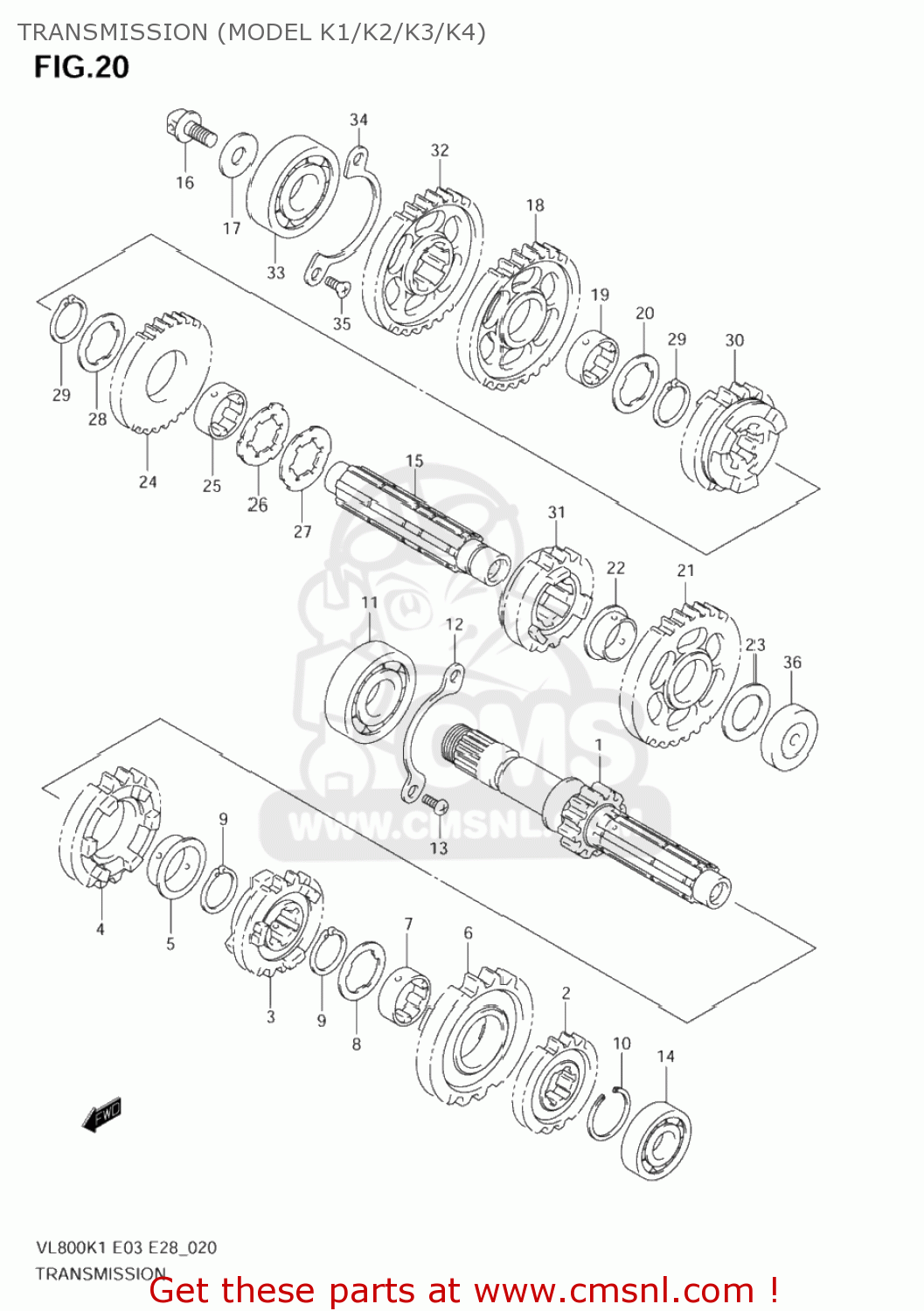

Transmission (model k1/k2/k3/k4) diagram VL800 VOLUSIA 2002 (K2) USA (E03)

TRANSMISSION (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2002 (K2) USA (E03)

TRANSMISSION (MODEL K1/K2/K3/K4) VL800 VOLUSIA 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2412041F00
ref: 1

SHAFT,COUNTER

€ 192.00

2

2422138A01
ref: 2

GEAR,2ND DRIVE(NT:19)

€ 91.50

3

2423138A02
ref: 3

GEAR,3RD DRIVE(NT:22)

€ 96.00

4

2424138A00
ref: 4

GEAR,4TH DRIVE(NT:25)

€ 101.00

5

0930125001
ref: 5
24322-19F00

BUSHING

€ 12.50

6

2425145C20
ref: 6

GEAR,5TH DRIVE(NT:27)

€ 93.50

7

2425238A10
ref: 7

BUSH,6TH DRIVE GEAR

€ 10.50

8

0916725016
ref: 8

WASHER,LOCK

€ 3.00

9

0938025003
ref: 9

RING,SNAP

€ 3.00

10

0938025010
ref: 10

CIRCLIP

€ 3.00

11

0926225080
ref: 11

BEARING(25X62X17)

€ 21.50

12

2474138A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 4.00

13

0912506086
ref: 13

SCREW(6X12)

€ 2.00

14

0926220081
ref: 14
09262-20139

BEARING 20X47X14

€ 27.50

15

2413138A03
ref: 15

SHAFT,DRIVE

€ 106.50

16

2413538A02
ref: 16

NOZZLE,DRIVE SHAFT

€ 5.00

17

0821110305
ref: 17

WASHER

€ 3.00

18

2431138A20
ref: 18

GEAR,1ST DRIVEN(NT:32)

€ 105.00

19

2433207A00
ref: 19

BUSH

€ 9.50

20

0916728001
ref: 20

WASHER,LOCK

€ 3.00

21

2432138A00
ref: 21

GEAR,2ND DRIVEN(NT:31)

€ 86.00

22

0930122002
ref: 22

BUSH

€ 7.50

23

0918120251
ref: 23

SHIM(20X34X1)

€ 3.00

24

2433138A02
ref: 24

GEAR,3RD DRIVEN(NT:27)

€ 86.00

25

2433207A00
ref: 25

BUSH

€ 9.50

26

0916928001
ref: 26

WASHER

€ 3.00

27

0916728002
ref: 27

WASHER,LOCK

€ 3.00

28

0916728001
ref: 28

WASHER,LOCK

€ 3.00

29

0833131286
ref: 29
08331-3128A

CIRCLIP

€ 2.50

30

2434138A02
ref: 30

GEAR,4TH DRIVEN(NT:25)

€ 109.00

31

2435145C00
ref: 31

GEAR,5TH DRIVEN(NT:22)

€ 72.50

32

2462138A00
ref: 32

GEAR,REDUCTION DRIVE(NT:30)

€ 83.50

33

0926220073
ref: 33

BEARING(20X52X15)

€ 19.00

34

2475138A00
ref: 34

RETAINER,DRIVE SHAFT BEARING

€ 4.00

35

0912606011
ref: 35

SCREW(6X12)

€ 2.00

36

0926220080
ref: 36

BEARING(20X52X15)

€ 21.50
