CAMSHAFT - VALVE

VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)

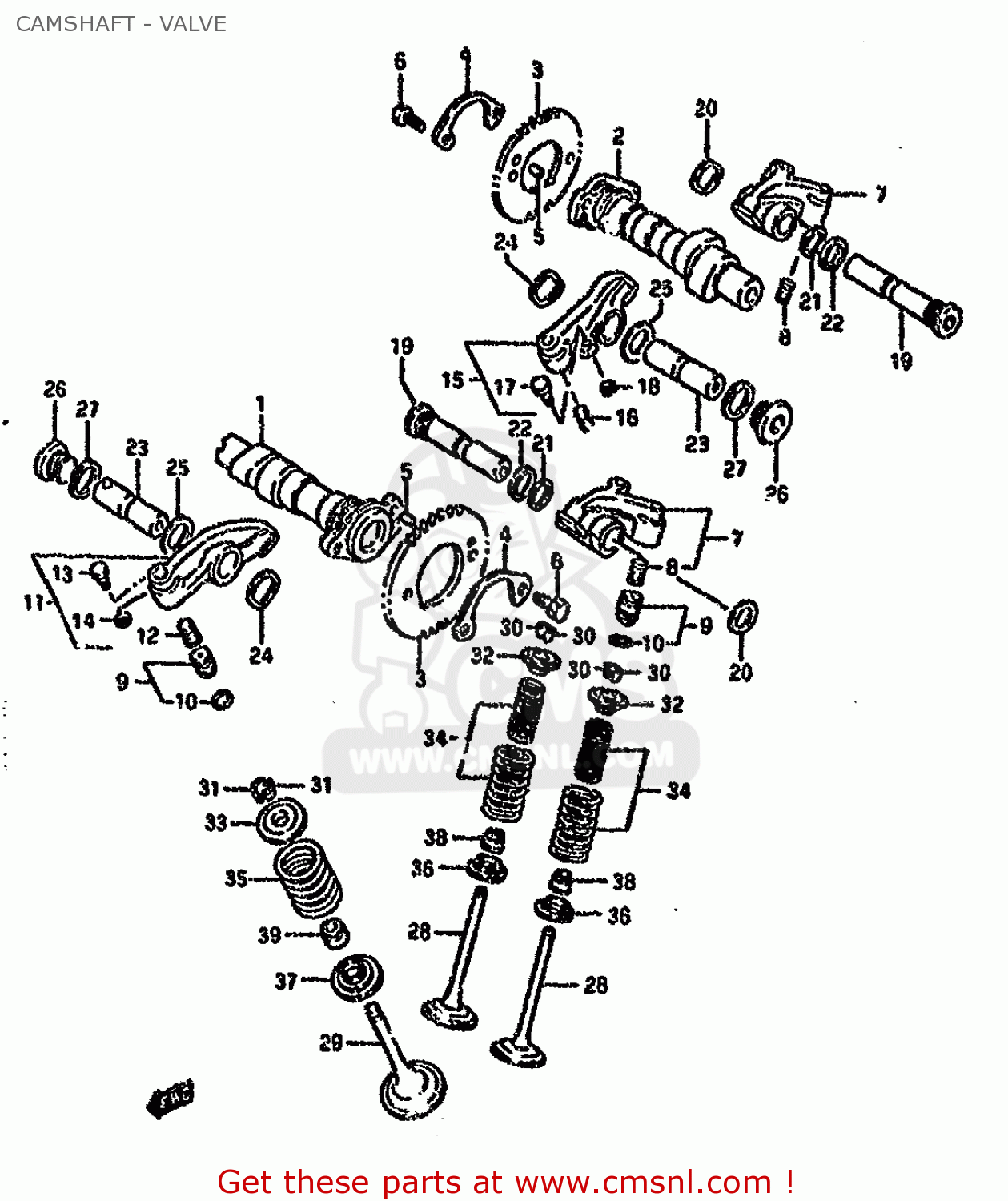

Camshaft - valve diagram VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)

CAMSHAFT - VALVE VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)
CAMSHAFT - VALVE VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)
CAMSHAFT - VALVE VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)
prices are in EUR
ref
part #
description
quantity
1
1271138B00
ref: 1
CAMSHAFT,FR
1271138B00
€ 412.00
2
1271338B00
ref: 2
CAMSHAFT,RR
1271338B00
€ 181.50
3
1274138B00
ref: 3
SPROCKET,CAMSHAFT
€ 53.00
4
1274744000
ref: 4
WASHER,CAM CHAIN SPROCKET
1274744000
€ 2.00
5
0422105109
ref: 5
PIN
0422105109
€ 1.50
6
0911106027
ref: 6
BOLT(6X12.5)
0911106027
€ 1.50
7
1284038B01
ref: 7
ARM,VALVE ROCKER INTAKE
1284038B01
€ 112.50
8
1286338B00
ref: 8
CHAMBER,VALVE LASH ADJUSTER
1286338B00
€ 8.50
9
1286038B00
ref: 9
-12860-388Z0
ADJUSTER,HYDRAULIC VALVE
€ 82.50
10
1286438B00
ref: 10
O-RING,ADJUSTER
1286438B00
€ 7.50
11
1285038B02
ref: 11
ARM,VALVE ROCKER FR EXHAUST
1285038B02
€ 100.50
12
1286338B00
ref: 12
CHAMBER,VALVE LASH ADJUSTER
1286338B00
€ 8.50
13
1284438B00
ref: 13
PIN,DECOMP
1284438B00
€ 16.00
14
0833211033
ref: 14
E RING
0833211033
€ 1.50
15
1288038B01
ref: 15
ARM,VALVE ROCKER RR EXHAUST
1288038B01
€ 71.50
16
1286338B00
ref: 16
CHAMBER,VALVE LASH ADJUSTER
1286338B00
€ 8.50
17
1284438B00
ref: 17
PIN,DECOMP
1284438B00
€ 16.00
18
0833211033
ref: 18
E RING
0833211033
€ 1.50
19
1286138B00
ref: 19
SHAFT,INTAKE VALVE ROCKER ARM
€ 50.50
20
0916414012
ref: 20
WASHER
0916414012
€ 1.50
21
0821114201
ref: 21
WASHER
€ 2.50
22
0916816003
ref: 22
GASKET(16X22X2) (NAS)
0916816003
€ 2.00
23
1287138B00
ref: 23
SHAFT,EXHAUST VALVE ROCKER ARM
€ 28.50
24
0916416003
ref: 24
WASHER
0916416003
€ 2.50
25
0916016033
ref: 25
WASHER(16X26X1)
0916016033
€ 3.50
26
0924818004
ref: 26
PLUG,18X11
0924818004
€ 10.50
27
0916818003
ref: 27
GASKET(18X24.2X2) (NAS)
0916818003
€ 2.00
28
1291138B00
ref: 28
VALVE,INTAKE
1291138B00
€ 81.50
29
1291238B00
ref: 29
VALVE,EXHAUST
1291238B00
€ 55.50
30
1293224400
ref: 30
COTTER,VALVE
1293224400
€ 2.00
31
1293282000
ref: 31
COTTER,VALVE
1293282000
€ 2.00
32
1293133200
ref: 32
RETAINER,VALVE SPRING
1293133200
€ 5.50
33
1293145000
ref: 33
RETAINER,VALVE SPRING
1293145000
€ 6.00
34
1292006B00
ref: 34
SPRING SET,VALVE
1292006B00
€ 14.00
35
1292244110
ref: 35
SPRING,VALVE OUTER
1292244110
€ 11.00
36-1
1293333200
ref: 36-1
MODEL H/J/K/L/M/N/P
SEAT,VALVE SPRING
1293333200
€ 4.50
36-2
1293333201
ref: 36-2
MODEL R/S
SEAT,VALVE SPRING
1293333201
€ 4.50
37
1293345001
ref: 37
SEAT,VALVE SPRING
1293345001
€ 5.50
38
0928905015
ref: 38
-09289-05003
SEAL,OIL(5.5X11X8.2)
0928905015
€ 6.50
39
0928907002
ref: 39
SEAL,OIL(7X14.4X9)
0928907002
€ 3.00
