GEAR SHIFTING (MODEL M/N/P/R/S E2,E4,E17,E21,E22,E24,E34

VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)

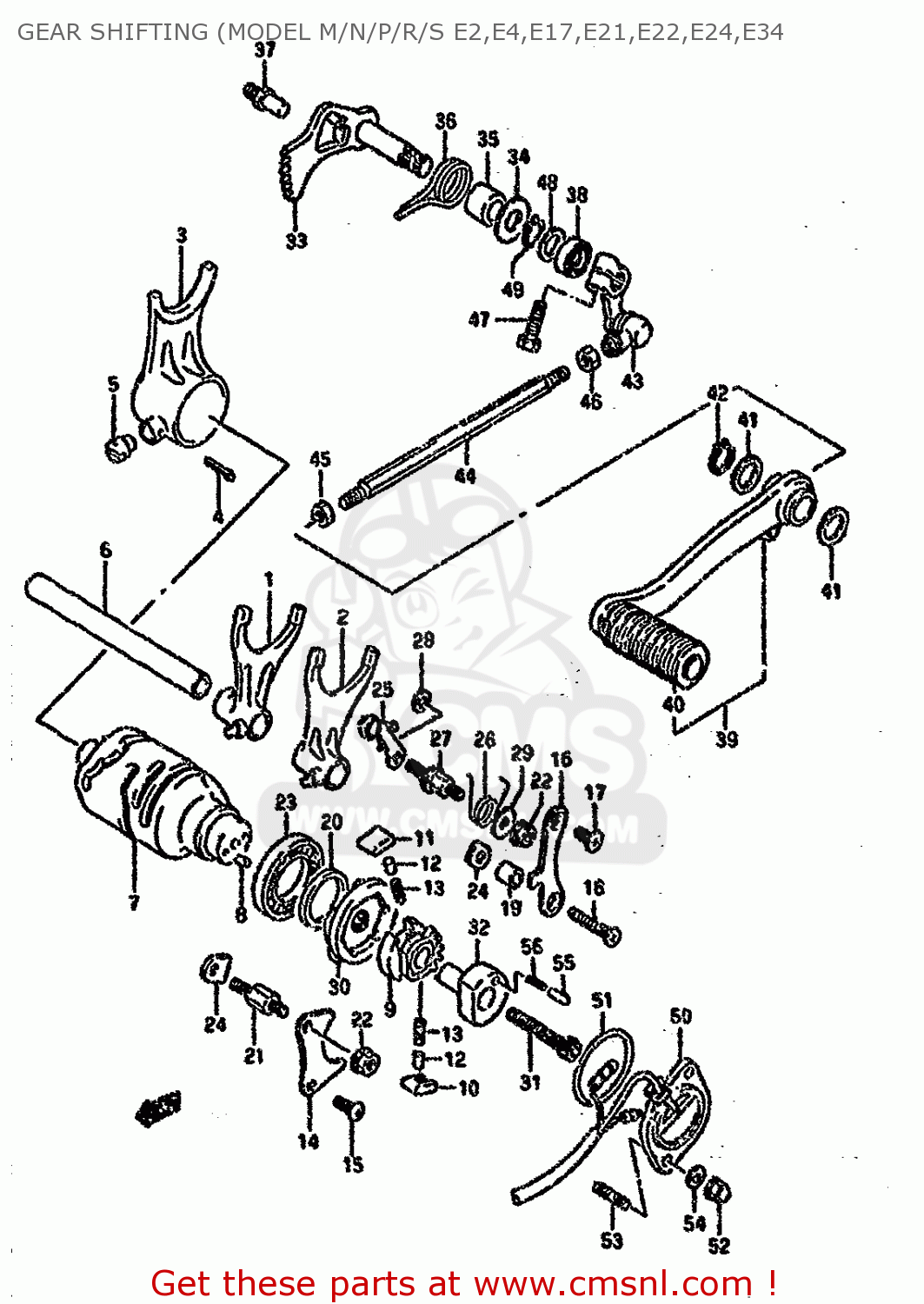

Gear shifting (model m/n/p/r/s e2,e4,e17,e21,e22,e24,e34 diagram VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)

GEAR SHIFTING (MODEL M/N/P/R/S E2,E4,E17,E21,E22,E24,E34 VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)
GEAR SHIFTING (MODEL M/N/P/R/S E2,E4,E17,E21,E22,E24,E34 VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)
GEAR SHIFTING (MODEL M/N/P/R/S E2,E4,E17,E21,E22,E24,E34 VS1400GLP 1992 (N) (E01 E04 E17 E21 E22 E34)
prices are in EUR
ref
part #
description
quantity
1
2521138B10
ref: 1
FORK,GEAR SHIFT NO.1
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
2522138B10
€ 83.00
3
2523138B10
ref: 3
FORK,GEAR SHIFT NO.3
2523138B10
€ 168.00
4
0411125258
ref: 4
COTTER PIN
€ 1.50
5
0920910002
ref: 5
PIN
0920910002
€ 8.50
6-1
2541138B00
ref: 6-1
MODEL M/N/P
SHAFT,GEAR SHIFT FORK
€ 20.00
6-2
2541138B01
ref: 6-2
MODEL R/S
SHAFT,GEAR SHIFT FORK(L:152)
2541138B01
€ 20.00
7
2531038B10
ref: 7
CAM,GEAR SHIFT
€ 213.50
8
0422104089
ref: 8
PIN
0422104089
€ 1.50
9
2532231301
ref: 9
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533138B00
ref: 14
LIFTER,GEAR SHIFT POLE
2533138B00
€ 5.00
15-1
0211206128
ref: 15-1
MODLE M/N/P
SCREW 6X12
0211206128
€ 2.00
15-2
0211206123
ref: 15-2
MODEL R/S
SCREW
0211206123
€ 1.50
16
2534138B00
ref: 16
GUIDE,GEAR SHIFT CAM
2534138B00
€ 7.00
17-1
0212206128
ref: 17-1
MODEL M/N/P
SCREW
0212206128
€ 3.00
17-2
0212206123
ref: 17-2
MODEL R/S
SCREW
0212206123
€ 3.00
18-1
0212206308
ref: 18-1
MODEL M/N/P
SCREW
€ 2.00
18-2
0212206303
ref: 18-2
MODEL R/S
SCREW
0212206303
€ 2.00
19
0918006169
ref: 19
SPACER (6.1X10X14)
€ 2.00
20
0916025059
ref: 20
WASHER(25X32X3)
0916025059
€ 5.00
21
2533238A00
ref: 21
BOSS,SHIFT PAWL LIFTER
€ 3.50
22-1
0915906017
ref: 22-1
MODEL M/N/P
NUT
0915906017
€ 2.50
22-2
0831610063
ref: 22-2
MODEL R/S
NUT
0831610063
€ 2.50
23
0926225006
ref: 23
9262-25002
BEARING(25X47X8)
0926225006
€ 24.00
24
2474121A00
ref: 24
24741-20A10
RETAINER
2474121A00
€ 2.00
25
2535038B00
ref: 25
STOPPER,GEAR SHIFT CAM
2535038B00
€ 13.00
26
0944817024
ref: 26
SPRING
0944817024
€ 5.00
27
2535612C00
ref: 27
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
28
0821106141
ref: 28
WASHER
0821106141
€ 2.50
29
0916006013
ref: 29
WASHER (6.5X18X2)
0916006013
€ 10.50
30
2538038B00
ref: 30
PLATE,GEAR SHIFT CAM
2538038B00
€ 15.00
31
0711006408
ref: 31
BOLT
€ 2.50
32
2531238B01
ref: 32
HOLDER,NEUTRAL SWITCH
2531238B01
€ 21.00
33
2551038B00
ref: 33
SHAFT,GEAR SHIFT
2551038B00
€ 94.00
34
0916012063
ref: 34
WASHER (12.5X28X1.2)
€ 2.50
35
0918012068
ref: 35
SPACER(12X20X15.3)
0918012068
€ 3.00
36
0944426021
ref: 36
SPRING
0944426021
€ 5.00
37
2567138B00
ref: 37
STOPPER,SHIFT ARM
2567138B00
€ 3.00
38
0928512002
ref: 38
OIL SEAL
0928512002
€ 7.00
39
2560038B01
ref: 39
LEVER ASSY,GEAR SHIFT
2560038B01
€ 78.00
40
2565238B00
ref: 40
RUBBER,GEAR SHIFT PEDAL
2565238B00
€ 7.50
41
0916014003
ref: 41
4208331
WASHER (14.2X22X1)
0916014003
€ 1.00
42
0833131146
ref: 42
CIRCLIP
0833131146
€ 2.00
43
2552038B00
ref: 43
ARM,GEAR SHIFT LINK
2552038B00
€ 39.50
44
2552538B00
ref: 44
ROD,GEAR SHIFT LINK
2552538B00
€ 21.00
45
0914006011
ref: 45
NUT
0914006011
€ 1.50
46-1
0831011067
ref: 46-1
MODEL M/N/P
NUT 6MM
€ 2.50
46-2
0831000067
ref: 46-2
MODEL R/S
NUT
0831000067
€ 2.50
47-1
0110706207
ref: 47-1
MODEL M/N/P
BOLT
0110706207
€ 2.00
47-2
0150006207
ref: 47-2
MODEL R/S
BOLT
0150006207
€ 2.00
48
0821112201
ref: 48
WASHER,THRUST
0821112201
€ 2.50
49
0833131126
ref: 49
CIRCLIP,12 MM
0833131126
€ 2.00
50
3772038B00
ref: 50
BASE ASSY,NEUTRAL SW TERMINAL
3772038B00
€ 94.50
51-1
0928036001
ref: 51-1
MODEL M/N/P/R
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
51-2
0928035006
ref: 51-2
MODEL S
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
52-1
0831311055
ref: 52-1
MODEL M/N/P
NUT
0831311055
€ 2.00
52-2
0831320053
ref: 52-2
MODEL R/S
NUT
0831320053
€ 1.50
53
0910805010
ref: 53
BOLT,STUD
0910805010
€ 2.50
54
0832221055
ref: 54
WASHER,5MM
0832221055
€ 2.50
55
0920904021
ref: 55
PIN
0920904021
€ 9.00
56
0944002003
ref: 56
SPRING
0944002003
€ 12.00
