Buy Suzuki VS Parts Online


CRANKCASE COVER

VS1400GLP 1999 (X) (E02 E04 E17 E22 E24 E34)

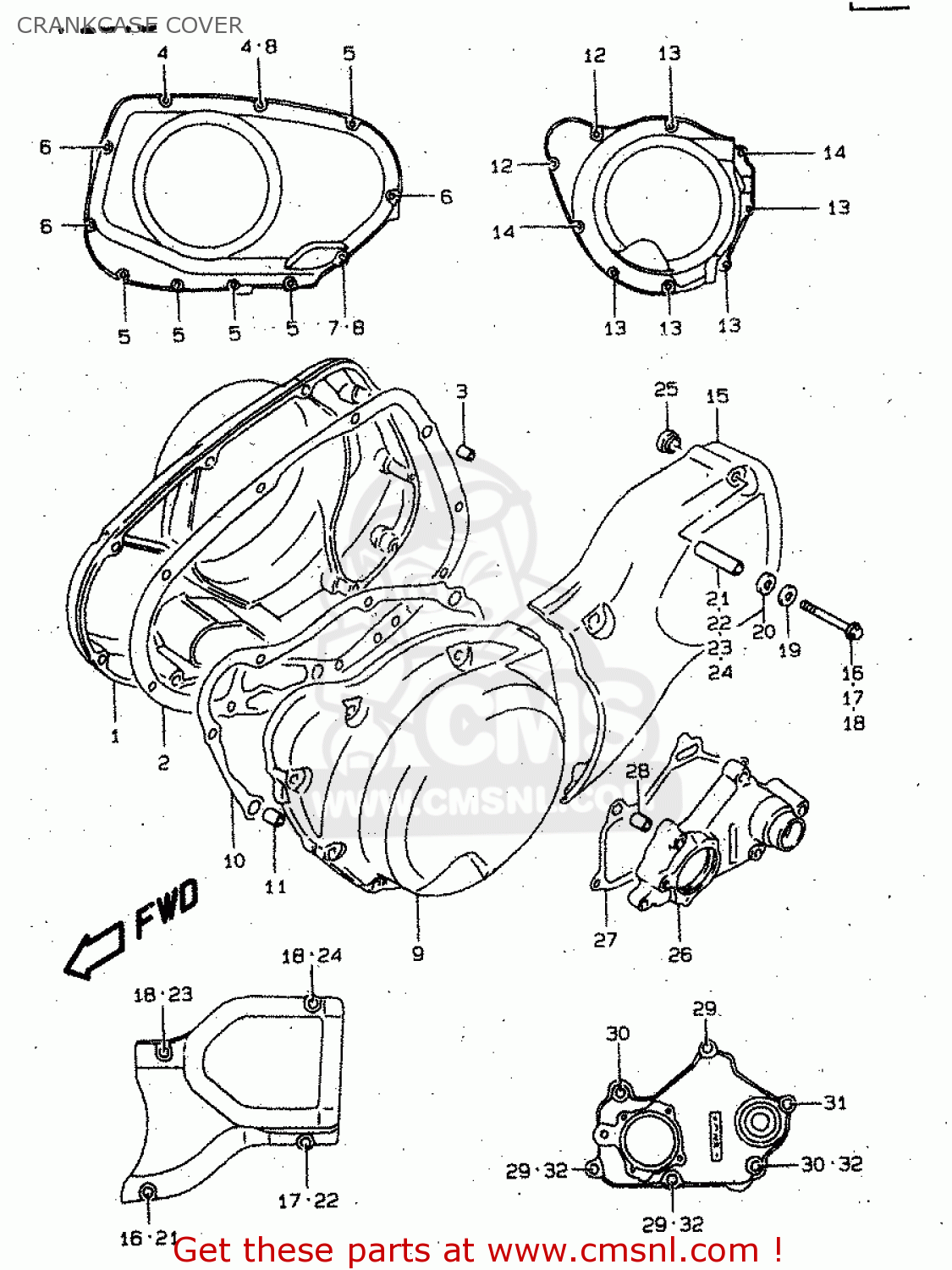

Crankcase cover diagram VS1400GLP 1999 (X) (E02 E04 E17 E22 E24 E34)

CRANKCASE COVER VS1400GLP 1999 (X) (E02 E04 E17 E22 E24 E34)
CRANKCASE COVER VS1400GLP 1999 (X) (E02 E04 E17 E22 E24 E34)
CRANKCASE COVER VS1400GLP 1999 (X) (E02 E04 E17 E22 E24 E34)
prices are in EUR
ref
part #
description
quantity
1
1134138B00
ref: 1
~F.NO.VX51L-133992,
COVER,CLUTCH
€ 381.50
1
1134138B01
ref: 1
F.NO.VX51L-133993~,
COVER,CLUTCH
1134138B01
€ 381.50
2
1148238B00H17
ref: 2
MODEL T/V
GASKET,CLUTCH COVER (NAS)
1148238B00H17
€ 22.50
2
1148238B10
ref: 2
MODEL W/X
GASKET,CLUTCH COVER (NAS)
1148238B10
€ 22.50
3
0421109189
ref: 3
PIN
0421109189
€ 2.00
4
0154706257
ref: 4
~F.NO.VX51L-133992,
BOLT
0154706257
€ 2.50
4
0154706307
ref: 4
F.NO.VX51L-133993~,
BOLT
0154706307
€ 2.50
5
0154706307
ref: 5
BOLT
0154706307
€ 2.50
6
0154706407
ref: 6
BOLT
0154706407
€ 2.50
7
0154706557
ref: 7
BOLT
0154706557
€ 2.50
8
0916806024
ref: 8
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
9
1135138B00
ref: 9
COVER,GENERATOR
1135138B00
€ 330.00
10
1148338B00H17
ref: 10
GASKET,GENERATOR COVER (NAS)
1148338B00H17
€ 13.50
11
0920611017
ref: 11
PIN(8.4X11X20)
0920611017
€ 6.50
12
0154706307
ref: 12
BOLT
0154706307
€ 2.50
13
0154706357
ref: 13
BOLT
0154706357
€ 2.50
14
0154706457
ref: 14
BOLT
0154706457
€ 2.50
15
1136138B00
ref: 15
COVER,SECONDARY GEAR CASE
1136138B00
€ 156.50
16
0154706357
ref: 16
BOLT
0154706357
€ 2.50
17
0154706407
ref: 17
BOLT
0154706407
€ 2.50
18
0154706607
ref: 18
BOLT
0154706607
€ 2.50
19
0916006097
ref: 19
MODEL T/V
WASHER
0916006097
€ 2.00
19
0916006125
ref: 19
MODEL W/X
WASHER(6.5X14X1.6)
0916006125
€ 2.00
20
0916109005
ref: 20
WASHER(8.7X16X5)
0916109005
€ 2.50
21
0918006301
ref: 21
SPACER(6.5X9X21)
€ 6.00
22
0918006302
ref: 22
SPACER(6.5X9X26)
0918006302
€ 7.00
23
0918006303
ref: 23
SPACER(6.5X9X49)
0918006303
€ 9.50
24
0918006183
ref: 24
~E.NO.155401
SPACER (L=45.9)
€ 7.00
24
0918006281
ref: 24
E.NO.155402~
SPACER(6.5X9X45.9)
0918006281
€ 7.00
25
0916109005
ref: 25
WASHER(8.7X16X5)
0916109005
€ 2.50
26
1137138B10
ref: 26
MODEL T/V/W
COVER,GEAR SHIFT
€ 76.50
26
1137138B20
ref: 26
MODEL X
COVER,GEAR SHIFT
€ 76.50
27
1148538B00H17
ref: 27
MODEL T/V
GASKET,GEAR SHIFT COVER (NAS)
1148538B00H17
€ 7.50
27
1148538B10
ref: 27
MODEL W/X
GASKET,GEAR SHIFT COVER (NAS)
1148538B10
€ 7.50
28
0421109109
ref: 28
PIN
0421109109
€ 2.00
29
0154706257
ref: 29
BOLT
0154706257
€ 2.50
30
0154706357
ref: 30
BOLT
0154706357
€ 2.50
31
0154706457
ref: 31
BOLT
0154706457
€ 2.50
32
0916806024
ref: 32
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
