FUEL TANK (MODEL P/R/S)

VS1400GLP INTRUDER 1987 (H) USA (E03)

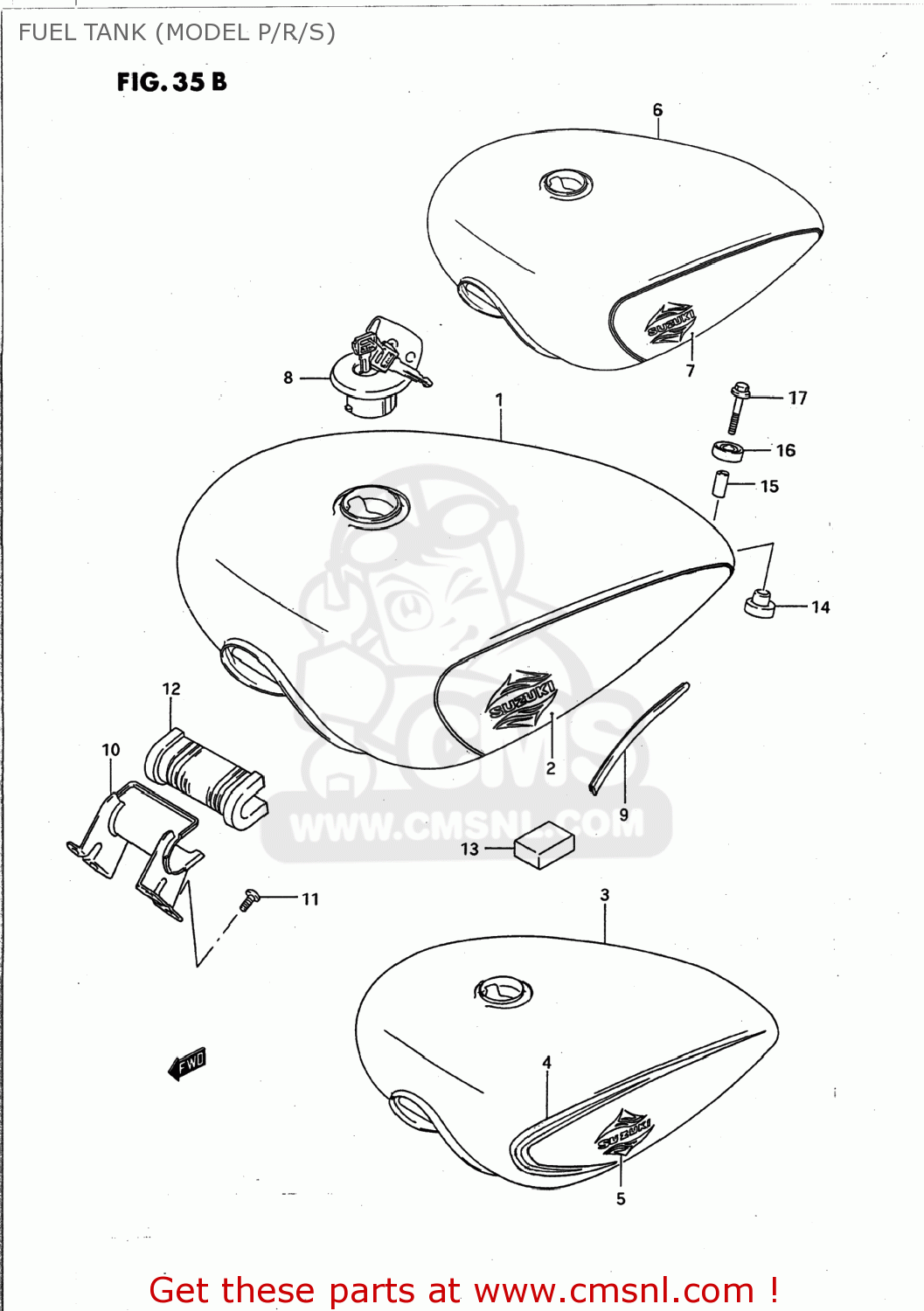

Fuel tank (model p/r/s) diagram VS1400GLP INTRUDER 1987 (H) USA (E03)

FUEL TANK (MODEL P/R/S) VS1400GLP INTRUDER 1987 (H) USA (E03)
FUEL TANK (MODEL P/R/S) VS1400GLP INTRUDER 1987 (H) USA (E03)
FUEL TANK (MODEL P/R/S) VS1400GLP INTRUDER 1987 (H) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
4410038BA013Z
ref: 1-1
44100-38BB0-13Z
TANK ASSEMBLY,FUEL
€ 839.00
1-2
4410038BA020F
ref: 1-2
44100-38BB0-20F
TANK ASSEMBLY,FUEL
€ 720.50
1-3
4410038BC013Z
ref: 1-3
44100-38BC1-13Z
TANK ASSEMBLY,FUEL
€ 432.50
1-4
4410038BC020F
ref: 1-4
44110-38B13-YD8
TANK ASSEMBLY,FUEL
€ 432.50
2-1
6811038B20A2P
ref: 2-1
TAPE SET,FUEL TANK
€ 114.50
2-2
6811038B20A6P
ref: 2-2
TAPE SET,FUEL TANK
€ 114.50
3-1
4410038BE033J
ref: 3-1
44100-38BF0-33J
TANK ASSEMBLY,FUEL
€ 774.50
3-2
4410038BE020F
ref: 3-2
44110-38B21-YD8
TANK ASSEMBLY,FUEL
€ 414.00
3-3
4410038BG033J
ref: 3-3
44100-38BG2-33J
TANK ASSEMBLY,FUEL
€ 321.00
3-4
4410038BG020F
ref: 3-4
44100-38BG2-20F
TANK ASSEMBLY,FUEL
€ 321.00
4-1
6811038B30C1K
ref: 4-1
TAPE SET,FUEL TANK STRIPE
€ 116.50
4-2
6811038B30C1J
ref: 4-2
TAPE SET,FUEL TANK STRIPE
€ 90.50
5-1
6811138A21C1K
ref: 5-1
EMBLEM,FUEL TANK
6811138A21C1K
€ 34.00
5-2
6811138A21C1J
ref: 5-2
EMBLEM,FUEL TANK
€ 27.00
6-1
4410038BH01ZV
ref: 6-1
44100-38BJ0-1ZV
TANK ASSEMBLY,FUEL
€ 483.50
6-2
4410038BH02AX
ref: 6-2
44100-38BJ0-2AX
TANK ASSEMBLY,FUEL
€ 471.50
6-3
4410038BK01ZV
ref: 6-3
44100-38BK1-1ZV
TANK ASSEMBLY,FUEL
€ 456.50
6-4
4410038BK02AX
ref: 6-4
44100-38BK1-2AX
TANK ASSEMBLY,FUEL
€ 391.50
7-1
6811038B00D5G
ref: 7-1
TAPE SET,FUEL TANK
€ 153.00
7-2
6811038B00D5H
ref: 7-2
TAPE SET,FUEL TANK
€ 184.50
8-1
4420038820
ref: 8-1
CAP SET,FUEL TANK
4420038820
€ 107.50
8-2
4420038860
ref: 8-2
CAP SET,FUEL TANK
4420038860
€ 135.50
8-3
4420038870
ref: 8-3
ENGRAVED GAS CAP SET,G
4420038870
€ 136.50
8-4
4420024820
ref: 8-4
CAP SET,FUEL TANK
€ 150.50
9
6824127A00
ref: 9
68241-04X50-00B
MOLDING,FUEL TANK
6824127A00
€ 23.00
10-1
4425038B0013Z
ref: 10-1
44250-38B00-019
BRACKET,TANK
4425038B0013Z
€ 32.00
10-2
4425038B0033J
ref: 10-2
44250-38B00-019
BRACKET COMP,FUEL TANK
4425038B0033J
€ 32.00
10-3
4425038B0020F
ref: 10-3
44250-38B00-019
BRACKET COMP,FUEL TANK
€ 32.00
11-1
0214276165
ref: 11-1
SCREW
€ 2.00
11-2
0211276163
ref: 11-2
02112-7616A
SCREW
0211276163
€ 2.00
12
4451138B01
ref: 12
CUSHION,FUEL TANK FR
4451138B01
€ 12.00
13
4451238B00
ref: 13
56314-48B10
CUSHION
4451238B00
€ 6.00
14
0932010020
ref: 14
CUSHION
0932010020
€ 4.00
15
0918006190
ref: 15
09180-06274
SPACER
0918006190
€ 4.50
16
0932014013
ref: 16
CUSHION
0932014013
€ 3.00
17
0155006353
ref: 17
01550-0635A
BOLT
0155006353
€ 2.50
