Buy Suzuki VS Parts Online


CARBURETOR (REAR)

VS1400GLP INTRUDER 1990 (L) USA (E03)

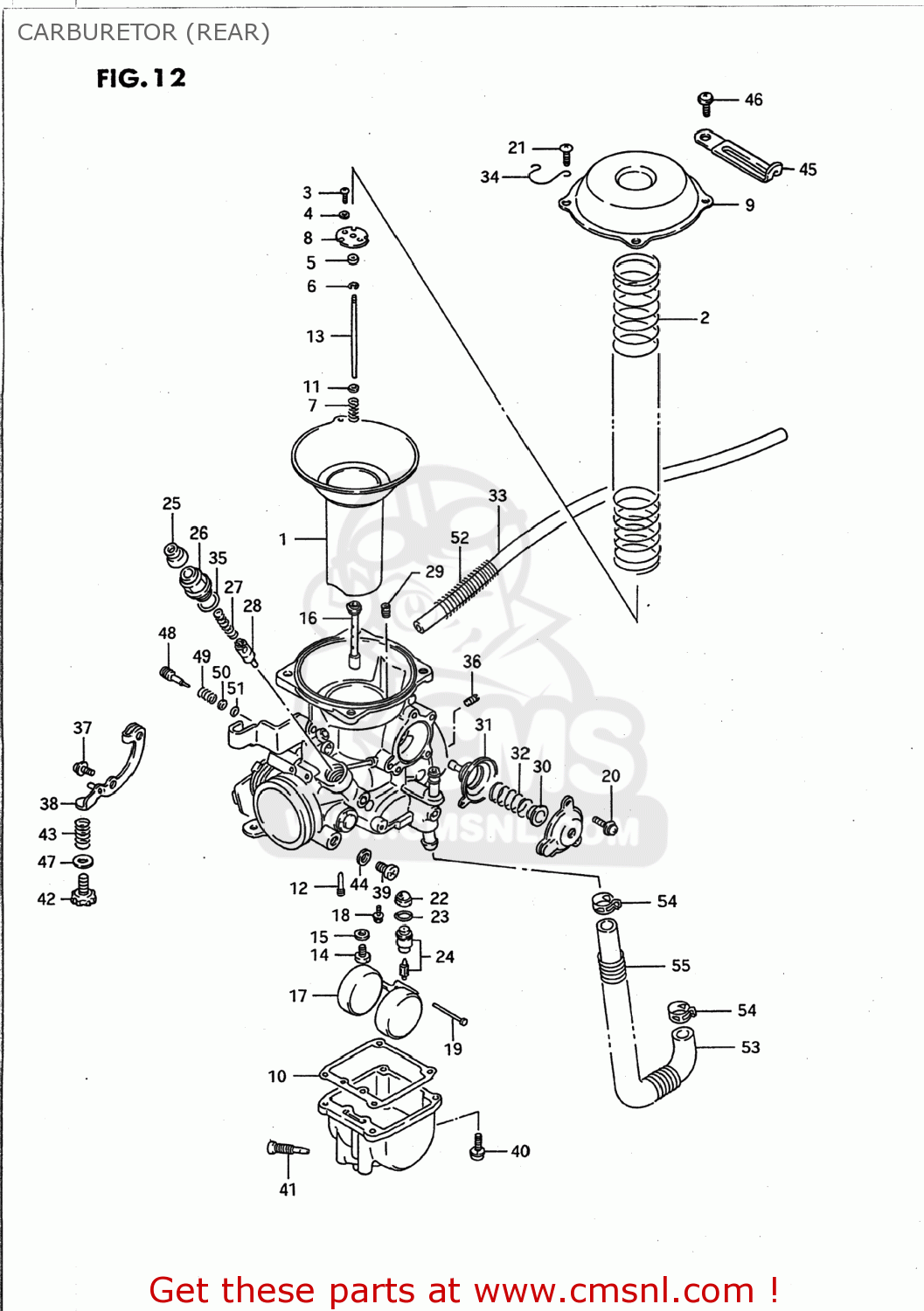

Carburetor (rear) diagram VS1400GLP INTRUDER 1990 (L) USA (E03)

CARBURETOR (REAR) VS1400GLP INTRUDER 1990 (L) USA (E03)
CARBURETOR (REAR) VS1400GLP INTRUDER 1990 (L) USA (E03)
CARBURETOR (REAR) VS1400GLP INTRUDER 1990 (L) USA (E03)
prices are in EUR
ref
part #
description
quantity

1322038B00
ref:
13220-38B40
CARBURETOR ASSEMBLY
€ 785.00

1322038B40
ref:
CARBURETOR ASSY,RR
€ 785.00

1322038B10
ref:
13220-38B50
CARBURETOR ASSEMBLY
€ 319.00

1322038B50
ref:
CARBURETOR ASSEMBLY,REAR
€ 319.00

1322038B50
ref:
CARBURETOR ASSEMBLY,REAR
€ 319.00
1
1350038A10
ref: 1
DIAPHRAGM,CARBURETOR
1350038A10
€ 222.50
2
1350305A10
ref: 2
SPRING,DIAPHRAGM
1350305A10
€ 12.00
3-1
0211203068
ref: 3-1
02112-0306B
SCREW
0211203068
€ 2.00
3-2
0211203063
ref: 3-2
02112-0306B
SCREW
0211203063
€ 2.00
4-1
0832121038
ref: 4-1
09162-03001
LOCK WASHER
€ 1.50
4-2
0832121033
ref: 4-2
08321-2103B
WASHER,LOCK
0832121033
€ 1.50
5
1338747010
ref: 5
RING
1338747010
€ 7.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1338844030
ref: 7
SPRING
1338844030
€ 6.00
8
1338937400
ref: 8
PLATE
1338937400
€ 5.50
9
1350238A10
ref: 9
13502-45CE0
COVER,DIAPHRAGM
€ 37.50
10
1325138A10
ref: 10
GASKET,FLOAT CHAMBER (NAS)
1325138A10
€ 8.00
11
1338244030
ref: 11
WASHER
1338244030
€ 3.50
12-1
0949257004
ref: 12-1
JET,PILOT
0949257004
€ 10.50
12-2
0949255014
ref: 12-2
JET,PILOT(55)
0949255014
€ 16.50
13
1338338B00
ref: 13
NEEDLE,JET
1338338B00
€ 17.50
14
0949128010
ref: 14
JET,MAIN(140)
0949128010
€ 8.50
15
1333244080
ref: 15
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
16
0949400571
ref: 16
JET,NEEDLE
0949400571
€ 21.50
17
1325223010
ref: 17
FLOAT
1325223010
€ 19.00
18
1360205A10
ref: 18
SCREW
1360205A10
€ 4.00
19
1325492311
ref: 19
PIN,FLOAT
1325492311
€ 2.00
20-1
0211204106
ref: 20-1
02112-0410A
SCREWM4X0.7X10
€ 1.00
20-2
0211204103
ref: 20-2
02112-0410A
SCREW
0211204103
€ 1.00
21-1
0211204086
ref: 21-1
02112-0408A
SCREW
€ 2.00
21-2
0211204083
ref: 21-2
02112-0408A
SCREW
€ 2.00
22
1337684110
ref: 22
13376-19F00
FILTER
€ 6.50
23
1337444080
ref: 23
13374-35C00
O-RING,NEEDLE VALVE
1337444080
€ 6.00
24-1
1337038B00
ref: 24-1
VALVE ASSY,NEEDLE
1337038B00
€ 64.50
24-2
1337039A00
ref: 24-2
VALVE ASSY,NEEDLE
1337039A00
€ 67.50
25
1368104010
ref: 25
CAP
1368104010
€ 3.00
26
1341843410
ref: 26
HOLDER,GUIDE
1341843410
€ 6.50
27
1341722010
ref: 27
SPRING
1341722010
€ 3.00
28
1341101400
ref: 28
PLUNGER,STARTER
1341101400
€ 11.50
29-1
0949340002
ref: 29-1
JET,AIR
€ 16.00
29-2
0949331001
ref: 29-2
JET,AIR(1.55)
€ 12.00
30
1348237300
ref: 30
PLATE
€ 0.00
31
1348005A10
ref: 31
DIAPHRAGM ASSY
1348005A10
€ 54.50
32-1
1348138B00
ref: 32-1
13481-38B90
SPRING
€ 4.00
32-2
1348138B40
ref: 32-2
SPRING
1348138B40
€ 5.50
33
1368338A20
ref: 33
13683-38A21
HOSE ASSEMBLY
1368338A20
€ 70.00
34
1369202500
ref: 34
CLIP
€ 7.00
35
1327847090
ref: 35
O RING
1327847090
€ 2.00
36-1
0949260010
ref: 36-1
09492-60012
JET
0949260010
€ 7.50
36-2
0949240019
ref: 36-2
09492-40018
JET
€ 16.00
37
1360205A30
ref: 37
SCREW
1360205A30
€ 4.50
38
1355438B00
ref: 38
13554-45C20
LEVER ASSEMBLY
1355438B00
€ 38.50
39
1360573000
ref: 39
SCREW
1360573000
€ 10.50
40
1360104148
ref: 40
SCREW
1360104148
€ 2.50
41-1
1324738B00
ref: 41-1
13247-02340
PLUG
€ 5.50
41-2
1324713A00
ref: 41-2
13247-02340
SCREW,DRAIN
1324713A00
€ 5.50
42
1326738A10
ref: 42
13267-39E50
ADJUSTER
1326738A10
€ 13.00
43
1327193011
ref: 43
SPRING
1327193011
€ 4.50
44
1324978100
ref: 44
WASHER
1324978100
€ 4.00
45
1367105A20
ref: 45
09404-06433
CLIP
€ 3.00
46
1360238A20
ref: 46
02142-0408B
SCREW
€ 1.50
47
1327737100
ref: 47
WASHER
1327737100
€ 2.00
48
1368338B10
ref: 48
13683-38B01
HOSE
€ 19.50
49
1344638B00
ref: 49
SPRING
€ 8.50
50
1580138B00
ref: 50
15801-38B01
HOSE,FUEL PUMP & CARBURETOR
€ 14.50
51-1
0940112406
ref: 51-1
09401-11415
CLAMP
€ 2.50
51-2
0940112407
ref: 51-2
09401-12405
CLAMP
€ 3.00
52
0944014030
ref: 52
SPRING
0944014030
€ 25.00
